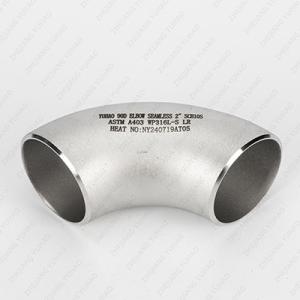

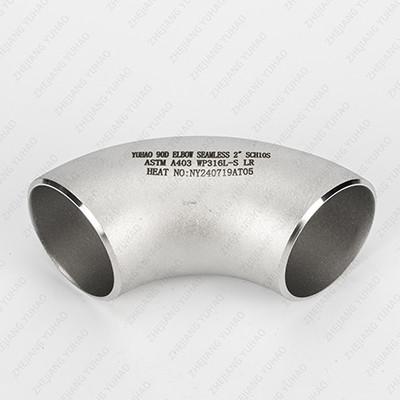

DN10-DN850 SS BW Pipe Fitttings 2.5 Stainless Steel 90 Degree Elbow

DN10-DN850 Stainless Steel Elbow SS BW Pipe Fitttings 90 Degree Elbow

►Products description

Engineered for high-performance industrial use, these 304 stainless steel socket weld elbows deliver exceptional corrosion resistance, durability, and optimized flow efficiency. Constructed from premium-grade 304 stainless steel, they are built to endure extreme pressures and temperatures, making them an ideal choice for chemical processing, petrochemical, and oil & gas applications.

The long-radius design ensures a smooth, low-turbulence flow path, reducing pressure drop and enhancing system efficiency. The socket weld connection guarantees a secure, leak-proof joint, while the 90-degree angle enables efficient directional changes in piping layouts.

Precision-manufactured to meet rigorous industry standards, these elbows ensure seamless integration, dependable performance, and long-lasting reliability in even the most demanding piping systems.

►Product Size

Norminal dimeter		Outside diante	Center to end		Center to Conter	kg／pc 90°L/R Elbow Approx weight
DN	NPS	OD	B	A	O	sch5s	sch10S	sch20S/LG	sch40S/STD	sch80S/XS	sch80
15	1/2	18 21.3	16	38	76	0.04 0.05	0.05 0.06	0.06 0.07	0.06 0.08	0.08 0.10	0.08 0.10
20	1/4	25 26.7	19	38	76	0.06 0.06	0.07 0.08	0.09 0.09	0.09 0.10	0.12 0.13	0.12 0.13
25	1	32 33.4	22	38	76	0.07 0.08	0.12 0.13	0.14 0.14	0.14 0.15	0.19 0.19	0.19 0.19
32	1 1/4	38 42.2	25	48	96	0.11 0.13	0.18 0.20	0.21 0.23	0.23 0.26	0.30 0.34	0.30 0.34
40	1 1/2	45 48.3	29	57	114	0.16 0.17	0.26 0.28	0.30 0.32	0.34 0.37	0.45 0.49	0.45 0.49
50	2	57 60.3	35	76	152	0.27 0.29	0.45 0.47	0.57 0.61	0.62 0.65	0.85 0.90	0.85 0.90
65	2 1/2	76 73	44	95	190	0.58 0.55	0.82 0.79	0.97 0.93	1.35 1.30	1.79 1.71	1.79 I.7I
80	3	89	51	114	228	0.82	1.17	1.51	2.04	2.76	2.76
90	3 1/2	101.6	57	133	266	1.09	1.56	2.03	2.85	3.92	3.92
100	4	108 114	64	152	304	1.32 1.40	1.90 2.01	2.47 2.61	3.64 3.85	5.05 5.35	5.05 5.35
125	5	133 141.3 139.7	79	190	380	2.67 2.84 2.81	3.27 3.47 3.43	4.74 5.05 4.99	6.14 6.54 6.46	8.72 9.31 9.19	8.72 9.31 9.19
150	6	168.3 159 165	95	229	458	4.10 3.86 4.01	5.01 4.72 4.91	7.29 6.88 7.14	10.24 9.64 10.03	15.41 14.50 15.09	15.41 14.50 15.09
200	8	219 216	127	305	610	7.12 7.03	9.63 9.49	15.94 15.71	20.51 20.22	31.17 30.71	31.17 30.71
250	10	273 267.4	159	381	762	13.62 13.34	16.74 16.39	24.97 24.44	36.33 35.56	49.12 48.06	57.83 56.57
300	12	325 323.9 318	190	457	914	22.66 22.58 22.16	26.10 26.01 25.53	35.79 35.66 35.00	53.58 53.40 52.39	70.69 70.44 49.11	95.81 95.46 93.63
350	14	377 355.6	222	533	1066	30.71 28.95	36.98 34.86	61.36 57.80	72.80 68.56	96.17 90.52	141.75 133.27
400	16	426 406.4	254	610	1220	42.05 40.09	47.90 45.67	79.55 75.82	94.42 89.98	124.87 118.95	206.35 196.35
450	18	478 457.2	286	686	1372	53.11 50.78	60.52 57.86	100.60 96.14	199.44 114.14	158.10 151.03	296.35 276.29
500	20	529 508	318	762	1524	74.47 71.48	86.18 82.72	123.86 118.87	147.12 141.14	194.86 186.94	391.34 375.00
550	22	559	343	838	1676	86.58	100.21	144.06	171.14	226.75	495.44
600	24	630 610	381	914	1828	123.32 119.37	141.21 136.64	177.37 171.67	210.78 203.98	279.45 270.40	661.10 -
650	26	660	406	991	1982	--	-	201.59	239.58	317.72	-
700	28	720 711	438	1067	2134	-	-	237.03 234.03	281.75 278.18	373.80 369.04	-
750	30	762	470	1143	2286	213.9	266.23	268.89	319.66	424.2	-
800	32	820 813	502	1219	2438	-	-	308.83 306.16	367.20 364.02	487.42 483.20	-
850	34	864	533	1295	2590	-	-	345.86	411.27	546.04	-
900	36	920 914	565	1372	2744	-	-	390.39 387.83	464.28 461.22	616.56 612.48	-
950	38	965	600	1448	2896	-	-	432.25	514.21	682.98	-
1000	40	1016 2020	632	1524	3048	-	-	479.29 481.19	570.09 572.35	757.33 760.35	-
1050	42	1067	660	1600	3200	-	-	528.65	628.85	835.51	-
1100	44	1118 1120	695	1676	3352	-	-	580.43 581.48	690.49 691.73	917.53 919.19	-
1150	46	1168	727	1753	3506	-	-	634.45	754.79	1003.1	-
1200	48	1220	759	1829	3658	-	-	691.63	822.85	1093.7	-

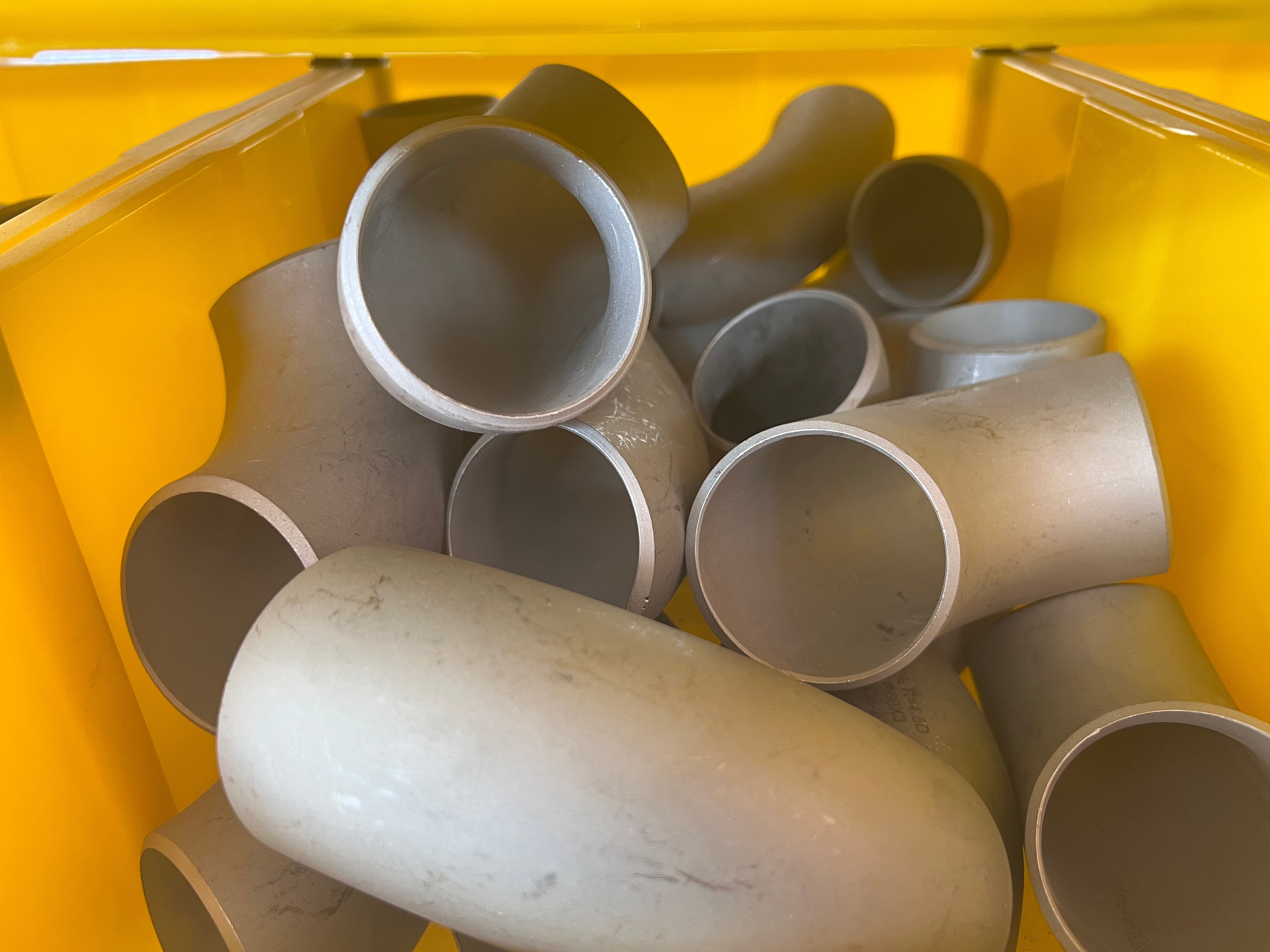

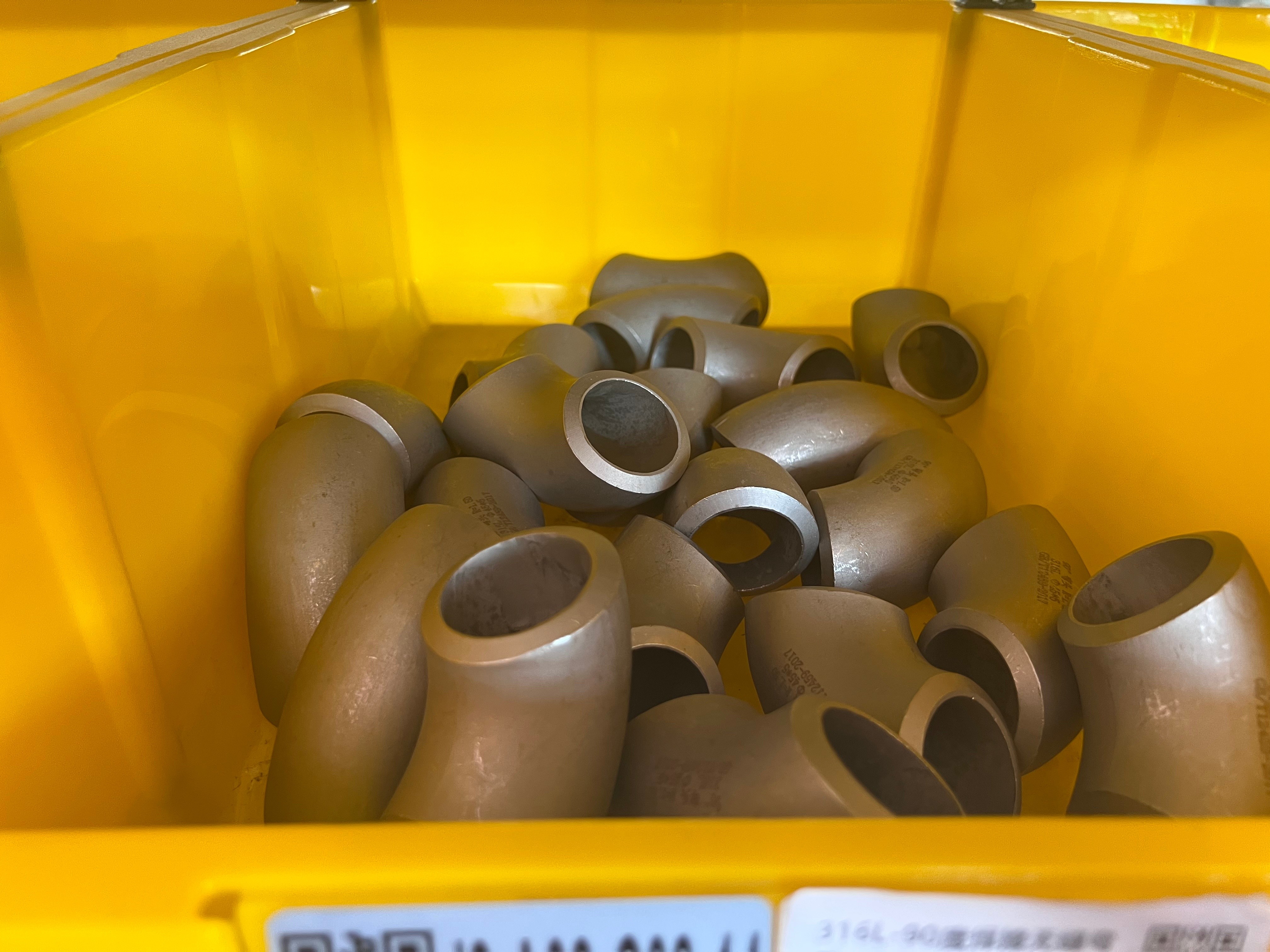

►Factroy Shoot

►FAQ

Q1: Delivery time?

A: 1- 7 days for small order.10- 20 days for big order.

Q2: What about your delivery time if we placed order?

A: We have large of ready stock,in general we can delivery within 2-10days.

Q3: Which payment terms you can accept?

A: We can accept TT,LC,DP,DA,Western Union or Negotiation.

Q4: How do you ensure product quality?

A: We have a dedicated team of experts who rigorously inspect each stage of the production process. Every product undergoes quality testing at our factory before it is shipped.

Q5: Can you reply to messages in a timely manner?

A: Contact us with your detailed inquiry, you will be replied within 6 hours.

Product Tags:


*From:	Your email address is incorrect!
*To:	Zhejiang Yuhao Stainless Steel Co., Ltd
*Subject:	Subject is empty!
*Message:	For the best results, we recommend including the following details: -Self introduction -Required specifications -Inquire about price/MOQ Characters Remaining: (0/3000) Please enter 20 to 3000 characters to contact this supplier!

Categories	Stainless Steel Butt Welded Pipe Fittings
Brand Name:	YUHAO
Model Number:	Butt Weld Pipe Fittings
Certification:	ASTM, AISI, GB, DIN, JIS
Place of Origin:	China
MOQ:	100kgs
Price:	Negotiation
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	2000tons/per month
Delivery Time:	15days
Packaging Details:	Standard sea worth bundles,Standard Plywood cases
wall thickness:	SCH15s-SCH180s
customized support:	OEM, ODM, OBM
shape:	Elbow
surface treatment:	Mirror, Polishing, Sandblasting, Sand Rolled
Connection Type:	Butt Welded
Application:	Oil, Gas, Chemical, Petrochemical, Power, Food & Beverage Industry, Wastewater Treatment
Size:	DN10-DN850
Standard:	EN, ASTM, AISI, DIN, JIS
Grade:	304, 304L, 316, 316L, 321, 310s
