| Categories | Stainless Steel Butt Welded Pipe Fittings |
|---|---|
| Brand Name: | YUHAO |
| Model Number: | Butt Weld Pipe Fittings |
| Certification: | ASTM, AISI, GB, DIN, JIS |
| Place of Origin: | China |
| MOQ: | 100kgs |
| Price: | Negotiation |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 2000tons/per month |
| Delivery Time: | 15days |
| Packaging Details: | Standard sea worth bundles,Standard Plywood cases |
| wall thickness: | SCH5s-SCH180s |
| customized support: | OEM, ODM, OBM |
| shape: | Elbow |
| surface treatment: | Mirror, Polishing, Sandblasting, Sand Rolled |
| Connection Type: | Butt Welded |
| Application: | Oil, Gas, Chemical, Petrochemical, Power, Food & Beverage Industry |
| Size: | DN6-DN900 |
| Standard: | EN, ASTM, AISI, DIN, JIS |
| Grade: | 304, 304L, 316, 316L |
| Company Info. |
| Zhejiang Yuhao Stainless Steel Co., Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |

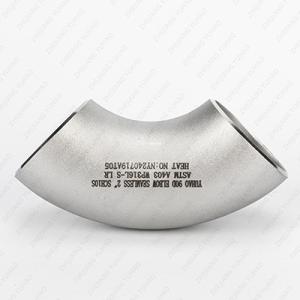

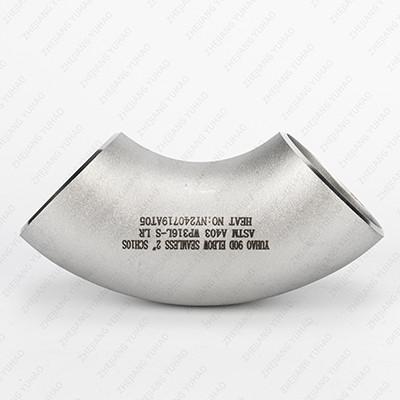

Polishing DN6-DN800 Stainless Steel Elbow BW Pipe Fitttings 90 Degree LR Elbow
►Products description
Engineered for demanding industrial applications, these 304 stainless steel long-radius 90° elbows deliver exceptional corrosion resistance, durability, and optimized flow performance. Constructed from high-quality 304 stainless steel, they excel in high-pressure and high-temperature environments, making them a reliable choice for the chemical, petrochemical, and oil & gas sectors.
The long-radius design ensures smooth fluid flow, reducing pressure loss and turbulence. Featuring a secure socket weld connection, these elbows provide a leak-proof seal, while the 90-degree angle enables efficient flow redirection. Precision-manufactured to meet stringent industry standards, they ensure seamless integration, dependable performance, and longevity in critical piping systems.
►Product Size
Norminal dimeter | Outside diante | Center to end | Center to Conter | kg／pc 90°L/R Elbow Approx weight | |||||||
| DN | NPS | OD | B | A | O | sch5s | sch10S | sch20S/LG | sch40S/STD | sch80S/XS | sch80 |
| 15 | 1/2 | 18 21.3 | 16 | 38 | 76 | 0.04 0.05 | 0.05 0.06 | 0.06 0.07 | 0.06 0.08 | 0.08 0.10 | 0.08 0.10 |
| 20 | 1/4 | 25 26.7 | 19 | 38 | 76 | 0.06 0.06 | 0.07 0.08 | 0.09 0.09 | 0.09 0.10 | 0.12 0.13 | 0.12 0.13 |
| 25 | 1 | 32 33.4 | 22 | 38 | 76 | 0.07 0.08 | 0.12 0.13 | 0.14 0.14 | 0.14 0.15 | 0.19 0.19 | 0.19 0.19 |
| 32 | 1 1/4 | 38 42.2 | 25 | 48 | 96 | 0.11 0.13 | 0.18 0.20 | 0.21 0.23 | 0.23 0.26 | 0.30 0.34 | 0.30 0.34 |
| 40 | 1 1/2 | 45 48.3 | 29 | 57 | 114 | 0.16 0.17 | 0.26 0.28 | 0.30 0.32 | 0.34 0.37 | 0.45 0.49 | 0.45 0.49 |
| 50 | 2 | 57 60.3 | 35 | 76 | 152 | 0.27 0.29 | 0.45 0.47 | 0.57 0.61 | 0.62 0.65 | 0.85 0.90 | 0.85 0.90 |
| 65 | 2 1/2 | 76 73 | 44 | 95 | 190 | 0.58 0.55 | 0.82 0.79 | 0.97 0.93 | 1.35 1.30 | 1.79 1.71 | 1.79 I.7I |
| 80 | 3 | 89 | 51 | 114 | 228 | 0.82 | 1.17 | 1.51 | 2.04 | 2.76 | 2.76 |
| 90 | 3 1/2 | 101.6 | 57 | 133 | 266 | 1.09 | 1.56 | 2.03 | 2.85 | 3.92 | 3.92 |
| 100 | 4 | 108 114 | 64 | 152 | 304 | 1.32 1.40 | 1.90 2.01 | 2.47 2.61 | 3.64 3.85 | 5.05 5.35 | 5.05 5.35 |
| 125 | 5 | 133 141.3 139.7 | 79 | 190 | 380 | 2.67 2.84 2.81 | 3.27 3.47 3.43 | 4.74 5.05 4.99 | 6.14 6.54 6.46 | 8.72 9.31 9.19 | 8.72 9.31 9.19 |
| 150 | 6 | 168.3 159 165 | 95 | 229 | 458 | 4.10 3.86 4.01 | 5.01 4.72 4.91 | 7.29 6.88 7.14 | 10.24 9.64 10.03 | 15.41 14.50 15.09 | 15.41 14.50 15.09 |
| 200 | 8 | 219 216 | 127 | 305 | 610 | 7.12 7.03 | 9.63 9.49 | 15.94 15.71 | 20.51 20.22 | 31.17 30.71 | 31.17 30.71 |
| 250 | 10 | 273 267.4 | 159 | 381 | 762 | 13.62 13.34 | 16.74 16.39 | 24.97 24.44 | 36.33 35.56 | 49.12 48.06 | 57.83 56.57 |
| 300 | 12 | 325 323.9 318 | 190 | 457 | 914 | 22.66 22.58 22.16 | 26.10 26.01 25.53 | 35.79 35.66 35.00 | 53.58 53.40 52.39 | 70.69 70.44 49.11 | 95.81 95.46 93.63 |
| 350 | 14 | 377 355.6 | 222 | 533 | 1066 | 30.71 28.95 | 36.98 34.86 | 61.36 57.80 | 72.80 68.56 | 96.17 90.52 | 141.75 133.27 |
| 400 | 16 | 426 406.4 | 254 | 610 | 1220 | 42.05 40.09 | 47.90 45.67 | 79.55 75.82 | 94.42 89.98 | 124.87 118.95 | 206.35 196.35 |
| 450 | 18 | 478 457.2 | 286 | 686 | 1372 | 53.11 50.78 | 60.52 57.86 | 100.60 96.14 | 199.44 114.14 | 158.10 151.03 | 296.35 276.29 |
| 500 | 20 | 529 508 | 318 | 762 | 1524 | 74.47 71.48 | 86.18 82.72 | 123.86 118.87 | 147.12 141.14 | 194.86 186.94 | 391.34 375.00 |
| 550 | 22 | 559 | 343 | 838 | 1676 | 86.58 | 100.21 | 144.06 | 171.14 | 226.75 | 495.44 |
| 600 | 24 | 630 610 | 381 | 914 | 1828 | 123.32 119.37 | 141.21 136.64 | 177.37 171.67 | 210.78 203.98 | 279.45 270.40 | 661.10 - |
| 650 | 26 | 660 | 406 | 991 | 1982 | -- | - | 201.59 | 239.58 | 317.72 | - |
| 700 | 28 | 720 711 | 438 | 1067 | 2134 | - | - | 237.03 234.03 | 281.75 278.18 | 373.80 369.04 | - |
| 750 | 30 | 762 | 470 | 1143 | 2286 | 213.9 | 266.23 | 268.89 | 319.66 | 424.2 | - |
| 800 | 32 | 820 813 | 502 | 1219 | 2438 | - | - | 308.83 306.16 | 367.20 364.02 | 487.42 483.20 | - |
| 850 | 34 | 864 | 533 | 1295 | 2590 | - | - | 345.86 | 411.27 | 546.04 | - |
| 900 | 36 | 920 914 | 565 | 1372 | 2744 | - | - | 390.39 387.83 | 464.28 461.22 | 616.56 612.48 | - |
| 950 | 38 | 965 | 600 | 1448 | 2896 | - | - | 432.25 | 514.21 | 682.98 | - |
| 1000 | 40 | 1016 2020 | 632 | 1524 | 3048 | - | - | 479.29 481.19 | 570.09 572.35 | 757.33 760.35 | - |
| 1050 | 42 | 1067 | 660 | 1600 | 3200 | - | - | 528.65 | 628.85 | 835.51 | - |
| 1100 | 44 | 1118 1120 | 695 | 1676 | 3352 | - | - | 580.43 581.48 | 690.49 691.73 | 917.53 919.19 | - |
| 1150 | 46 | 1168 | 727 | 1753 | 3506 | - | - | 634.45 | 754.79 | 1003.1 | - |
| 1200 | 48 | 1220 | 759 | 1829 | 3658 | - | - | 691.63 | 822.85 | 1093.7 | - |

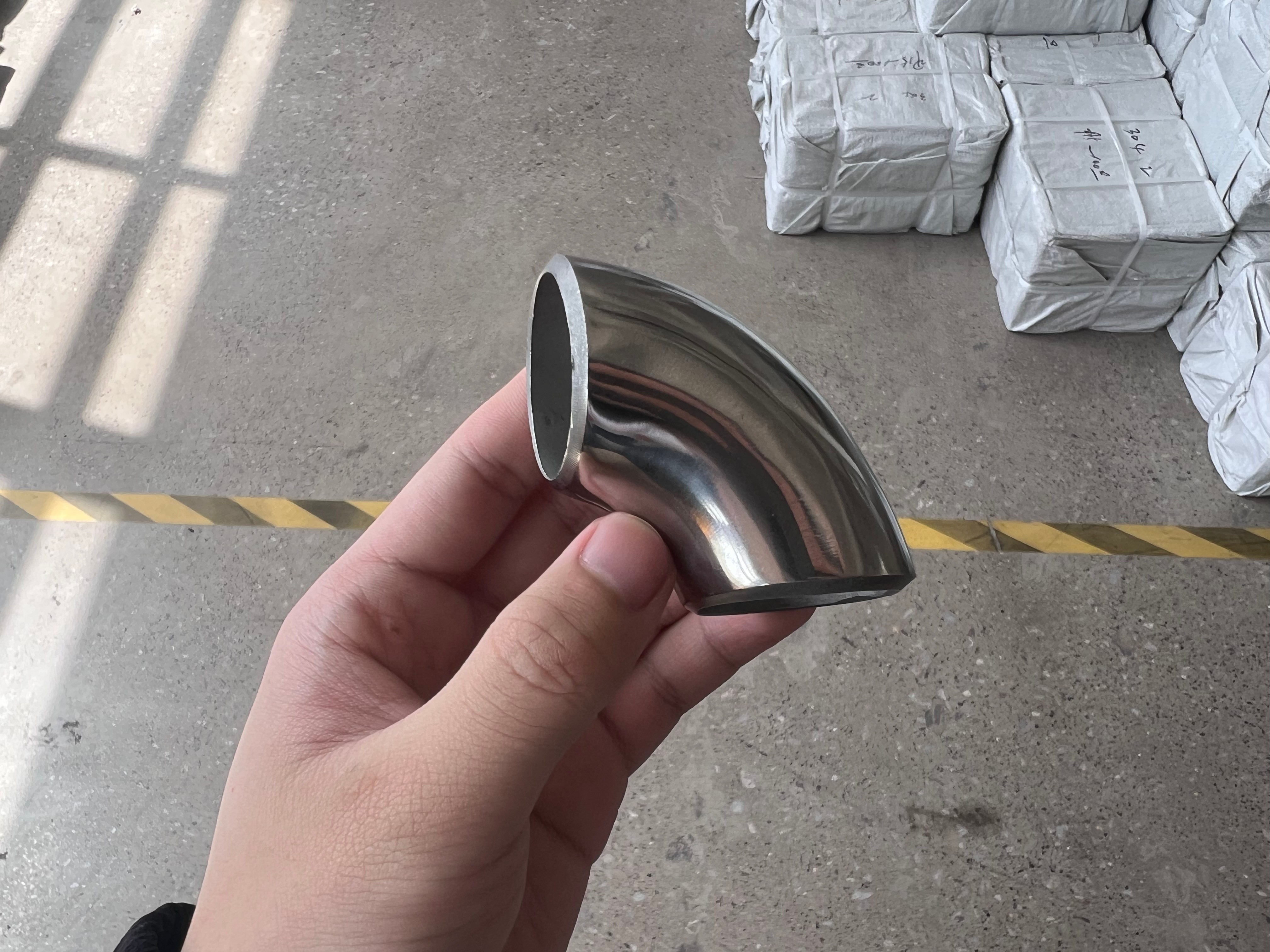

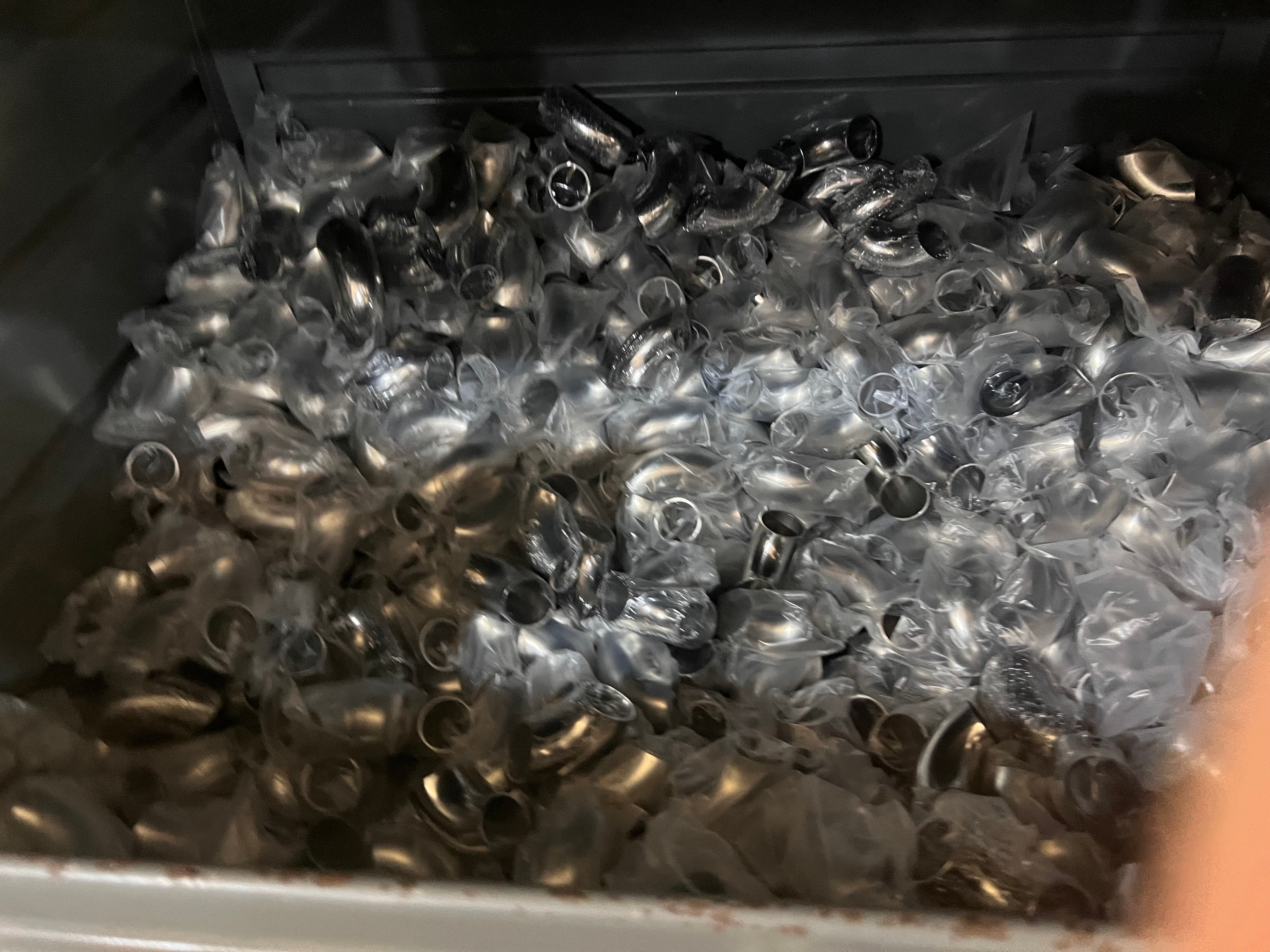

►Factroy Shoot
►FAQ
Q1: How is the quality?
A: Quality is priority. We pay much attention to the quality check. Every product will be fully assembled and carefully tested before it's packed for shipment.
Q2: What is your minimum order quantity?
A: The MOQ for each product is different, so it would be recommended to refer to the detail page of the product you are interested in. If you need further clarification, send me the product link, and I will reply as soon as possible.
Q3: Can I customize products?
A: Yes. Let me know the specific customization requirements, and I will get back to you as soon as possible.
Q4: How is the quality about the products?
A: Quality is priority. We pay much attention to the quality check. Every product will be fully assembled and carefully tested before it's packed for shipment.
Q5: What is your minimum order quantity?
A: The MOQ for each product is different, so it would be recommended to refer to the detail page of the product you are interested in. If you need further clarification, send me the product link, and I will reply as soon as possible.
|
