| Categories | Stainless Steel Butt Welded Pipe Fittings |
|---|---|
| Brand Name: | YUHAO |
| Model Number: | Butt Weld Pipe Fittings |
| Certification: | ASTM, AISI, GB, DIN, JIS |
| Place of Origin: | China |
| MOQ: | 100kgs |
| Price: | Negotiation |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 2000tons/per month |
| Delivery Time: | 15days |
| Packaging Details: | Standard sea worth bundles,Standard Plywood cases |
| wall thickness: | SCH10-SCH160 |
| customized support: | OEM, ODM, OBM |
| shape: | Elbow |
| surface treatment: | Mirror, Polishing, Sandblasting, Sand Rolled |
| Connection Type: | Butt Welded |
| Application: | Oil, Gas, Chemical, Petrochemical, Power, Food & Beverage Industry, Wastewater Treatment, Compressed Air Systems |
| Size: | DN10-DN750 |
| Standard: | EN, ASTM, AISI, DIN, JIS |
| Grade: | 304, 304L, 316, 316L, 321, 310 |
| Company Info. |
| Zhejiang Yuhao Stainless Steel Co., Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |

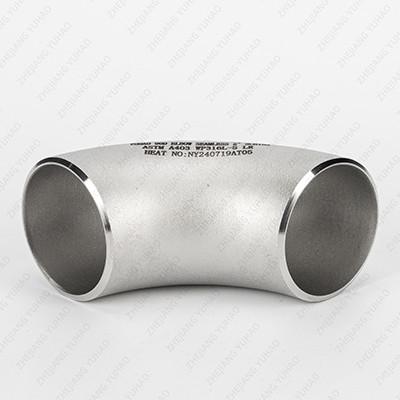

DN10-DN750 SCH10-SCH160 Stainless Steel Elbow SS Butt Welded Pipe Fittings 90 Degree Elbow
►Products description
Engineered for high-performance industrial use, these 304 stainless steel elbows deliver superior corrosion resistance, durability, and optimized flow efficiency. Constructed from premium-grade 304 stainless steel, they are built to endure extreme pressure and temperature conditions, making them an ideal choice for chemical processing, petrochemical, and oil & gas applications.
The long-radius design promotes smooth fluid flow, reducing turbulence and minimizing pressure drop. The socket weld connection ensures a strong, leak-proof seal, while the 90-degree angle allows for efficient directional changes in piping systems. Precision-manufactured to meet industry standards, these elbows guarantee seamless integration, dependable performance, and long-lasting reliability in even the most demanding environments.
►Product Size
Norminal dimeter | Outside diante | Center to end | Center to Conter | kg／pc 90°L/R Elbow Approx weight | |||||||
| DN | NPS | OD | B | A | O | sch5s | sch10S | sch20S/LG | sch40S/STD | sch80S/XS | sch80 |
| 15 | 1/2 | 18 21.3 | 16 | 38 | 76 | 0.04 0.05 | 0.05 0.06 | 0.06 0.07 | 0.06 0.08 | 0.08 0.10 | 0.08 0.10 |
| 20 | 1/4 | 25 26.7 | 19 | 38 | 76 | 0.06 0.06 | 0.07 0.08 | 0.09 0.09 | 0.09 0.10 | 0.12 0.13 | 0.12 0.13 |
| 25 | 1 | 32 33.4 | 22 | 38 | 76 | 0.07 0.08 | 0.12 0.13 | 0.14 0.14 | 0.14 0.15 | 0.19 0.19 | 0.19 0.19 |
| 32 | 1 1/4 | 38 42.2 | 25 | 48 | 96 | 0.11 0.13 | 0.18 0.20 | 0.21 0.23 | 0.23 0.26 | 0.30 0.34 | 0.30 0.34 |
| 40 | 1 1/2 | 45 48.3 | 29 | 57 | 114 | 0.16 0.17 | 0.26 0.28 | 0.30 0.32 | 0.34 0.37 | 0.45 0.49 | 0.45 0.49 |
| 50 | 2 | 57 60.3 | 35 | 76 | 152 | 0.27 0.29 | 0.45 0.47 | 0.57 0.61 | 0.62 0.65 | 0.85 0.90 | 0.85 0.90 |
| 65 | 2 1/2 | 76 73 | 44 | 95 | 190 | 0.58 0.55 | 0.82 0.79 | 0.97 0.93 | 1.35 1.30 | 1.79 1.71 | 1.79 I.7I |
| 80 | 3 | 89 | 51 | 114 | 228 | 0.82 | 1.17 | 1.51 | 2.04 | 2.76 | 2.76 |
| 90 | 3 1/2 | 101.6 | 57 | 133 | 266 | 1.09 | 1.56 | 2.03 | 2.85 | 3.92 | 3.92 |
| 100 | 4 | 108 114 | 64 | 152 | 304 | 1.32 1.40 | 1.90 2.01 | 2.47 2.61 | 3.64 3.85 | 5.05 5.35 | 5.05 5.35 |
| 125 | 5 | 133 141.3 139.7 | 79 | 190 | 380 | 2.67 2.84 2.81 | 3.27 3.47 3.43 | 4.74 5.05 4.99 | 6.14 6.54 6.46 | 8.72 9.31 9.19 | 8.72 9.31 9.19 |
| 150 | 6 | 168.3 159 165 | 95 | 229 | 458 | 4.10 3.86 4.01 | 5.01 4.72 4.91 | 7.29 6.88 7.14 | 10.24 9.64 10.03 | 15.41 14.50 15.09 | 15.41 14.50 15.09 |
| 200 | 8 | 219 216 | 127 | 305 | 610 | 7.12 7.03 | 9.63 9.49 | 15.94 15.71 | 20.51 20.22 | 31.17 30.71 | 31.17 30.71 |
| 250 | 10 | 273 267.4 | 159 | 381 | 762 | 13.62 13.34 | 16.74 16.39 | 24.97 24.44 | 36.33 35.56 | 49.12 48.06 | 57.83 56.57 |
| 300 | 12 | 325 323.9 318 | 190 | 457 | 914 | 22.66 22.58 22.16 | 26.10 26.01 25.53 | 35.79 35.66 35.00 | 53.58 53.40 52.39 | 70.69 70.44 49.11 | 95.81 95.46 93.63 |
| 350 | 14 | 377 355.6 | 222 | 533 | 1066 | 30.71 28.95 | 36.98 34.86 | 61.36 57.80 | 72.80 68.56 | 96.17 90.52 | 141.75 133.27 |
| 400 | 16 | 426 406.4 | 254 | 610 | 1220 | 42.05 40.09 | 47.90 45.67 | 79.55 75.82 | 94.42 89.98 | 124.87 118.95 | 206.35 196.35 |
| 450 | 18 | 478 457.2 | 286 | 686 | 1372 | 53.11 50.78 | 60.52 57.86 | 100.60 96.14 | 199.44 114.14 | 158.10 151.03 | 296.35 276.29 |
| 500 | 20 | 529 508 | 318 | 762 | 1524 | 74.47 71.48 | 86.18 82.72 | 123.86 118.87 | 147.12 141.14 | 194.86 186.94 | 391.34 375.00 |
| 550 | 22 | 559 | 343 | 838 | 1676 | 86.58 | 100.21 | 144.06 | 171.14 | 226.75 | 495.44 |
| 600 | 24 | 630 610 | 381 | 914 | 1828 | 123.32 119.37 | 141.21 136.64 | 177.37 171.67 | 210.78 203.98 | 279.45 270.40 | 661.10 - |
| 650 | 26 | 660 | 406 | 991 | 1982 | -- | - | 201.59 | 239.58 | 317.72 | - |
| 700 | 28 | 720 711 | 438 | 1067 | 2134 | - | - | 237.03 234.03 | 281.75 278.18 | 373.80 369.04 | - |
| 750 | 30 | 762 | 470 | 1143 | 2286 | 213.9 | 266.23 | 268.89 | 319.66 | 424.2 | - |
| 800 | 32 | 820 813 | 502 | 1219 | 2438 | - | - | 308.83 306.16 | 367.20 364.02 | 487.42 483.20 | - |
| 850 | 34 | 864 | 533 | 1295 | 2590 | - | - | 345.86 | 411.27 | 546.04 | - |
| 900 | 36 | 920 914 | 565 | 1372 | 2744 | - | - | 390.39 387.83 | 464.28 461.22 | 616.56 612.48 | - |
| 950 | 38 | 965 | 600 | 1448 | 2896 | - | - | 432.25 | 514.21 | 682.98 | - |
| 1000 | 40 | 1016 2020 | 632 | 1524 | 3048 | - | - | 479.29 481.19 | 570.09 572.35 | 757.33 760.35 | - |
| 1050 | 42 | 1067 | 660 | 1600 | 3200 | - | - | 528.65 | 628.85 | 835.51 | - |
| 1100 | 44 | 1118 1120 | 695 | 1676 | 3352 | - | - | 580.43 581.48 | 690.49 691.73 | 917.53 919.19 | - |
| 1150 | 46 | 1168 | 727 | 1753 | 3506 | - | - | 634.45 | 754.79 | 1003.1 | - |
| 1200 | 48 | 1220 | 759 | 1829 | 3658 | - | - | 691.63 | 822.85 | 1093.7 | - |
►Factroy Shoot
►FAQ
Q1: Where is your factory located?
A: Our factory is located in wenzhou City, zhejiang Province,China.
Q2: How is the after-sales service?
A: Quality are promised. If our products are not meet the contract we would like to send free goods to you.
Q3: How is the quality?
A: Quality is priority. We pay much attention to the quality check. Every product will be fully assembled and carefully tested before it's packed for shipment.
Q4: What is your minimum order quantity?
A: The MOQ for each product is different, so it would be recommended to refer to the detail page of the product you are interested in. If you need further clarification, send me the product link, and I will reply as soon as possible.
Q5: Can you reply to messages in a timely manner?
A: Contact us with your detailed inquiry, you will be replied within 6 hours.
|
