SCH5s-SCH160s Stainless Steel Elbow Butt Welded Pipe Fittings For High Pressure Environments

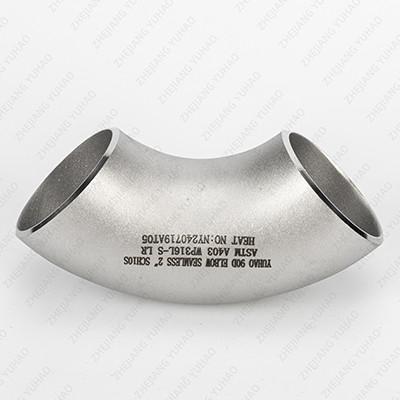

SCH5s-SCH160s Stainless Steel Elbow Butt Welded Pipe Fitttings 90 Degree Elbow

►Products description

Engineered for high-performance industrial use, these 304 stainless steel long-radius 90° elbows deliver superior corrosion resistance, durability, and optimized flow efficiency. Constructed from premium-grade 304 stainless steel, they are built to endure extreme pressure and temperature conditions, making them an ideal choice for chemical, petrochemical, and oil & gas applications.

The extended radius design promotes smooth fluid flow, reducing turbulence and pressure drop for enhanced system efficiency. The socket weld connection ensures a secure, leak-proof joint, while the 90-degree angle allows for efficient directional changes in piping layouts.

Precision-manufactured to meet stringent industry standards, these elbows ensure seamless integration, reliable operation, and long-term durability in even the most demanding piping systems.

►Product Size

Norminal dimeter		Outside diante	Center to end		Center to Conter	kg／pc 90°L/R Elbow Approx weight
DN	NPS	OD	B	A	O	sch5s	sch10S	sch20S/LG	sch40S/STD	sch80S/XS	sch80
15	1/2	18 21.3	16	38	76	0.04 0.05	0.05 0.06	0.06 0.07	0.06 0.08	0.08 0.10	0.08 0.10
20	1/4	25 26.7	19	38	76	0.06 0.06	0.07 0.08	0.09 0.09	0.09 0.10	0.12 0.13	0.12 0.13
25	1	32 33.4	22	38	76	0.07 0.08	0.12 0.13	0.14 0.14	0.14 0.15	0.19 0.19	0.19 0.19
32	1 1/4	38 42.2	25	48	96	0.11 0.13	0.18 0.20	0.21 0.23	0.23 0.26	0.30 0.34	0.30 0.34
40	1 1/2	45 48.3	29	57	114	0.16 0.17	0.26 0.28	0.30 0.32	0.34 0.37	0.45 0.49	0.45 0.49
50	2	57 60.3	35	76	152	0.27 0.29	0.45 0.47	0.57 0.61	0.62 0.65	0.85 0.90	0.85 0.90
65	2 1/2	76 73	44	95	190	0.58 0.55	0.82 0.79	0.97 0.93	1.35 1.30	1.79 1.71	1.79 I.7I
80	3	89	51	114	228	0.82	1.17	1.51	2.04	2.76	2.76
90	3 1/2	101.6	57	133	266	1.09	1.56	2.03	2.85	3.92	3.92
100	4	108 114	64	152	304	1.32 1.40	1.90 2.01	2.47 2.61	3.64 3.85	5.05 5.35	5.05 5.35
125	5	133 141.3 139.7	79	190	380	2.67 2.84 2.81	3.27 3.47 3.43	4.74 5.05 4.99	6.14 6.54 6.46	8.72 9.31 9.19	8.72 9.31 9.19
150	6	168.3 159 165	95	229	458	4.10 3.86 4.01	5.01 4.72 4.91	7.29 6.88 7.14	10.24 9.64 10.03	15.41 14.50 15.09	15.41 14.50 15.09
200	8	219 216	127	305	610	7.12 7.03	9.63 9.49	15.94 15.71	20.51 20.22	31.17 30.71	31.17 30.71
250	10	273 267.4	159	381	762	13.62 13.34	16.74 16.39	24.97 24.44	36.33 35.56	49.12 48.06	57.83 56.57
300	12	325 323.9 318	190	457	914	22.66 22.58 22.16	26.10 26.01 25.53	35.79 35.66 35.00	53.58 53.40 52.39	70.69 70.44 49.11	95.81 95.46 93.63
350	14	377 355.6	222	533	1066	30.71 28.95	36.98 34.86	61.36 57.80	72.80 68.56	96.17 90.52	141.75 133.27
400	16	426 406.4	254	610	1220	42.05 40.09	47.90 45.67	79.55 75.82	94.42 89.98	124.87 118.95	206.35 196.35
450	18	478 457.2	286	686	1372	53.11 50.78	60.52 57.86	100.60 96.14	199.44 114.14	158.10 151.03	296.35 276.29
500	20	529 508	318	762	1524	74.47 71.48	86.18 82.72	123.86 118.87	147.12 141.14	194.86 186.94	391.34 375.00
550	22	559	343	838	1676	86.58	100.21	144.06	171.14	226.75	495.44
600	24	630 610	381	914	1828	123.32 119.37	141.21 136.64	177.37 171.67	210.78 203.98	279.45 270.40	661.10 -
650	26	660	406	991	1982	--	-	201.59	239.58	317.72	-
700	28	720 711	438	1067	2134	-	-	237.03 234.03	281.75 278.18	373.80 369.04	-
750	30	762	470	1143	2286	213.9	266.23	268.89	319.66	424.2	-
800	32	820 813	502	1219	2438	-	-	308.83 306.16	367.20 364.02	487.42 483.20	-
850	34	864	533	1295	2590	-	-	345.86	411.27	546.04	-
900	36	920 914	565	1372	2744	-	-	390.39 387.83	464.28 461.22	616.56 612.48	-
950	38	965	600	1448	2896	-	-	432.25	514.21	682.98	-
1000	40	1016 2020	632	1524	3048	-	-	479.29 481.19	570.09 572.35	757.33 760.35	-
1050	42	1067	660	1600	3200	-	-	528.65	628.85	835.51	-
1100	44	1118 1120	695	1676	3352	-	-	580.43 581.48	690.49 691.73	917.53 919.19	-
1150	46	1168	727	1753	3506	-	-	634.45	754.79	1003.1	-
1200	48	1220	759	1829	3658	-	-	691.63	822.85	1093.7	-
