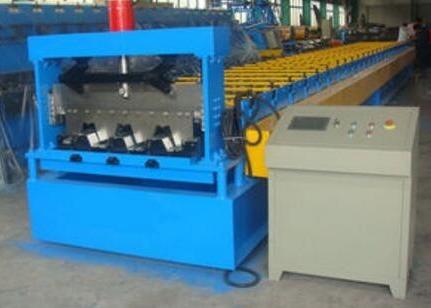

12m/Min Metal Sheet Roll Forming Machine , Steel Decking Floor Roll Forming Machine

8 ton Roll Forming Equipment For Floor Decking Panel 7.5KW 380V 50Hz Steel Structure Floor Deck Roll Forming Machine

Main Specifications of Floor Deck Roll Forming Machine

• Material Spec: Galvanized steel sheet
• Thickness of Coil Sheet: 0.8 --1.2 mm
• Main Motor Power of Floor decking roll forming machine: 18.5kw
• Forming Speed: 10--12m/min
• Hydraulic Station Power: 4kw
• Quantity of Stands: About 24 groups
• Hydraulic Pressure: 10~12Mpa
• Controlling System: PLC
• Index Error of Length: 10m±1.5mm
• Total Weight: About 1800kg
• Voltage: 380V 3 phase 50Hz or at buyers requirement

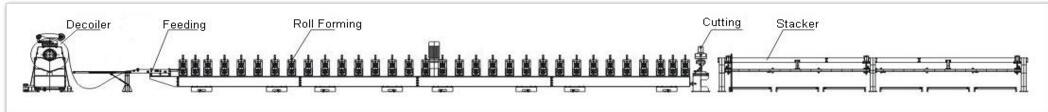

Main Components

• Decoiler ------------------------------------------------- 1 Unit
• Feeding ------------------------------------------------- 1 Unit
• Main roll forming machine ----------------------------1 Unit
• Hydraulic cutting device ------------------------------1 Unit
• Hydraulic Station ------------------------------------- 1 Unit
• PLC computer control --------------------------------1 Unit
• Output table ------------------------------------------- 1 Unit

Our Advantage

• High Quality
• Reliable
• Durable
• Reasonable Price
• Good after Service
• 1 Year Warranty
• More Than 10 Years Experience

Wuxi Hengruiyang Technology Co., Ltd is a manufacturer of roll forming machine. At present, our products have been exported all over the world, and maintained good cooperative relations with customers.
