| Categories | Sheet Roll Forming Machine |
|---|---|
| Brand Name: | HENGRUIYANG |
| Model Number: | OEM ODM |
| Certification: | CE , ISO9001, TUV, SGS |
| Place of Origin: | Jiangsu, China |
| MOQ: | 1 Set |
| Price: | Negotiation |
| Payment Terms: | T/T |
| Supply Ability: | 10set |
| Delivery Time: | 40-60 days |
| Packaging Details: | Standard export packing with each machine tied and protected in container |

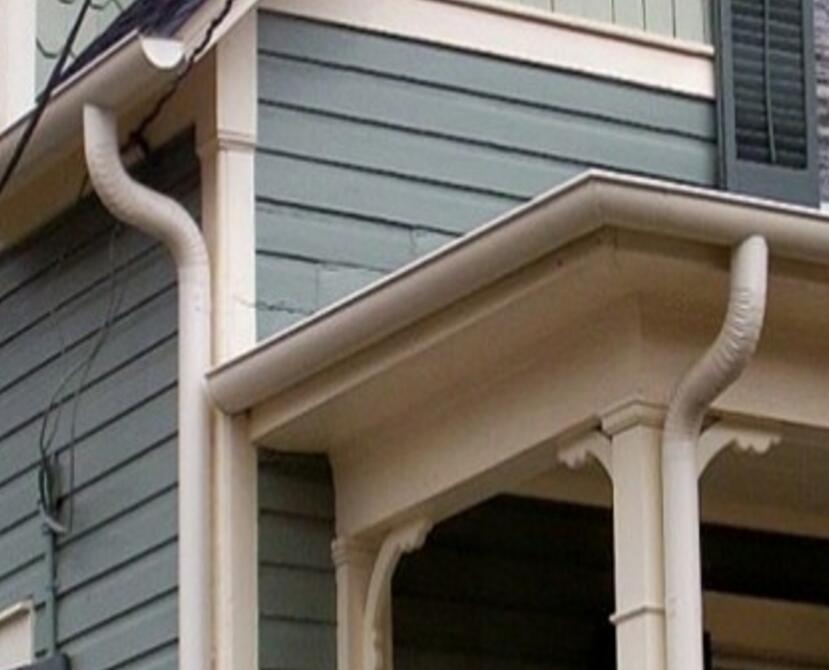

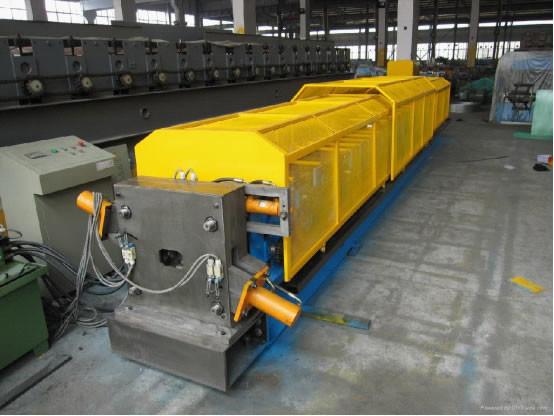

| Product name: | Downpipe roll forming machines |
| Rolling thickness: | 0.3-0.6mm |
| Roller stations: | 13 stations |
| Roller material: | 45#forge steel, coated with chrome |
| Rolling speed: | 10-15m/min |
| Raw material: | Galvanized steel sheet |
| Dimension: | 3500×1600×1500(mm) |
| Condition: | New |
1. Technical Parameter
Item NO. | Description | Offered Specification |
1.0 | Roll forming machine | |
1.1 | Rolling speed | 10-15m/min(not include cutting time) |
1.2 | Rolling thickness | 0.3-0.6mm |
1.3 | Raw material | Galvanized steel sheet |
1.4 | dimension | 3500×1600×1500(mm) |
1.5 | Effective width | 60mm |
| 1.6 | Roller stations | 13 stations One stage for embossing |
1.7 | Roller material | 45#forge steel, coated with chrome |
1.8 | Shaft diameter | Φ70mm ,material is 45# forge steel |
1.9 | Transmission | By chain 1 inch |
1.10 | Material of chain | 45# forged steel with frequency quenching, 12A |
1.11 | Material of cutting | Cr12Mov with quench HRC58-62° |
1.12 | Tolerance | 6m+-1.5mm |
1.13 | Frame | H type steel |
2. Main Components
Serial No. | Commodity & Description | Quantity |
1 | 3T manual uncoiler | 1 set |
2 | Infeed guiding | 1 set |
3 | Main roll forming machine | 1 set |
4 | straighten device | 1 set |
5 | Hydraulic cutting equipment | 1 set |
6 | Output table | 1 set |
7 | Main drive | 1 set |
8 | Hydraulic system | 1 set |
9 | Controlling system (including cabinet) | 1 set |
10 | Downpipe elbow forming machine | 1 set |
11 | seaming machine | 1 set |
3. Working Flow of Roll Forming Machine
De-coiler—→Level device —→Main roll forming machine—→Hydraulic cutting—→ Run out table
4. Advantage for Roll Forming Machine
1. Reasonable Price
2. High Quality
3. 12 Months Warranty
4. More Than 10 Years Experience
5. Durable
6. Afrer-sales service

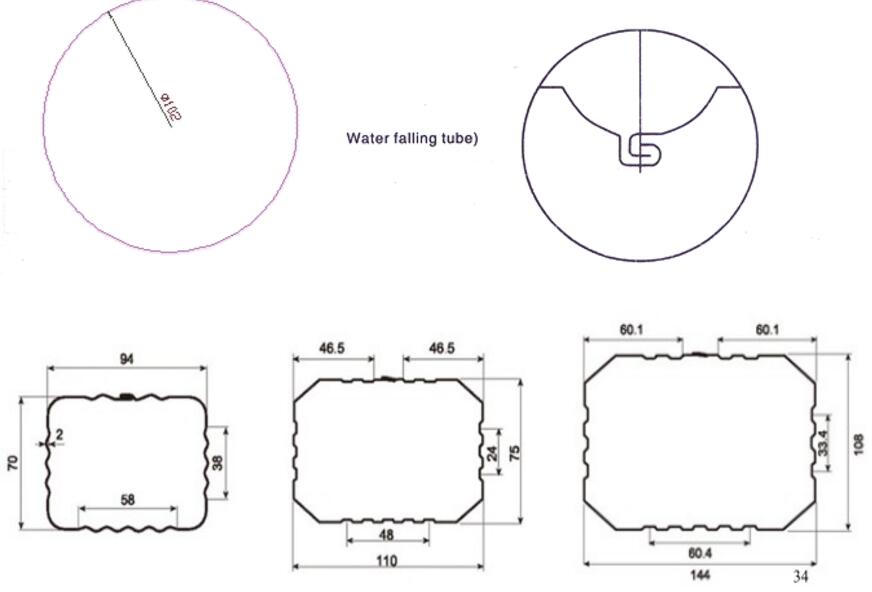

5. Profile of product
|
