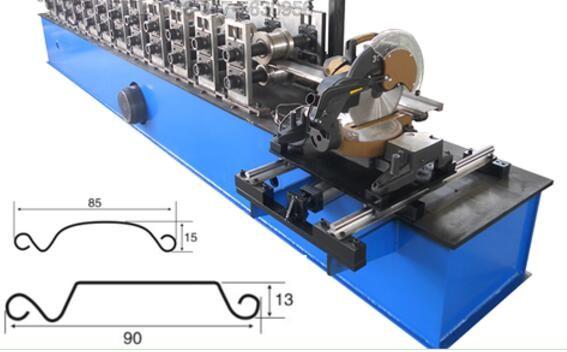

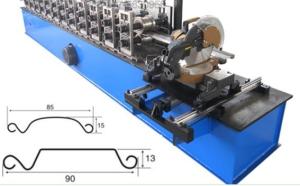

Steel Aluminium Roofing Sheet Making Machine 25m/Min 11 Stations

Steel & aluminium sheet Making Machinery Sheet Roll Forming Machine

Station Formation: 11 Stations
Shaft Diameter: 50mm
Machine Stand: Column Type
Machine Frame: Welded Carbon Steel
Roller Material: Cr12
Shaft Material: 45 # Tempered And Tempered Steel
Work Speed: 15-25m / min
Bearing: Roller Bearing
Transmission: By Gear
Motor Power: 5.5kw

Article No.	Item Name	Specification
1	Width of feeding material	119mm coil sheet
2	Thickness of feeding material	0.8mm-1.2mm coil sheet
3	Roller station	12 stations
4	Shaft Diameter	50mm
5	Productivity	8-12m/min
6	Rollers' material	45# steel forge
7	Shaft material	45# steel
8	Weight	2 ton
9	length	5.5 m
10	Voltage	380V 50Hz 3phases
11	Control	PLC
12	Decoiler	1.5Tons
13	Motor	5.5KW
14	Driving way	Chain transmission
15	Chain size	1 inch
16	Cutting system	Hydraulic cutter

Work flow:
manual uncoiler-- roll forming machine-- PLC control box-- hydraulic system-- post cut-- output table

Wuxi Hengruiyang Technology Co., Ltd is a manufacturer of roll forming machine. At present, our products have been exported all over the world, and maintained good cooperative relations with customers.
