| Categories | Sheet Roll Forming Machine |
|---|---|
| Brand Name: | HENGRUIYANG |
| Model Number: | OEM ODM |
| Certification: | CE , ISO9001, TUV, SGS |
| Place of Origin: | Jiangsu, China |
| MOQ: | 1 Set |
| Price: | Negotiation |
| Payment Terms: | T/T |
| Supply Ability: | 10set |
| Delivery Time: | 40-60 days |
| Packaging Details: | Standard export packing with each machine tied and protected in container |
| Name: | Metal Deck Roll Forming Machine |
| Steel Thickness: | 0.5--2.5mm |
| Forming Speed: | 15--20 m/min |
| Roller stands: | 28 stand |
| Roller Material: | high-grade 45# stee |
| Voltage: | 380V 50Hz 3phases |
| Condition: | New |
| Warranty: | 1 Year |
22KW Gearbox Drive Metal Deck Roll Forming Machine With 5T Manual
Uncoiler PLC Control Floor Deck Roll Forming Machine
Technical Parameter
Item NO. | Description | Unit Type | RF-DF |
| 1 | Steel Thickness | mm | 0.5--2.5 |
| 2 | Forming Speed | m/min | 15--20 |
| 3 | Roller stands | stand | Usually 28 |
| 4 | Roller Material | high-grade 45# steel | |
| 5 | Shaft diameter | 90 | |
| 6 | Main Motor Power | Kw | 22 |
| 7 | Hydraulic cutting Power | Kw | 7.5 |
| 8 | Hydraulic pressure | Mpa | 12 |
| 9 | Power Supply | 380V, 50HZ,3 phase | |
| 10 | Tolerance | mm | 1.0 |
| 11 | Material of cutting | Cr12 | |
| 12 | Control system | PLC with touch screen |
Main Components
| Commodity & Description | Quantity |
| 5T manual uncoiler | 1 set |
| Leveing guiding | 1 set |
| Servo feeding device | 1 set |
| Punching machine | 1 set |
| Main roll forming machine | 1 set |
| Hydraulic station | 1 set |
| Cutting device | 1 set |
| Finished products tabel | 1 set |
| PLC control system | 2 sets |
| Out tables | 1 set |
| Spare parts | 1 set |
Advantage for Roll Forming Machine
We can design and manufacture the machine according to clients'
request! Our machines have passed CE, Guaranteed quality. Please
send us the enquiry with Profile Drawing.
1. Durable
2. High Quality
3. 12 Months Warranty
4. More Than 10 Years Experience
5. Afrer-sales service

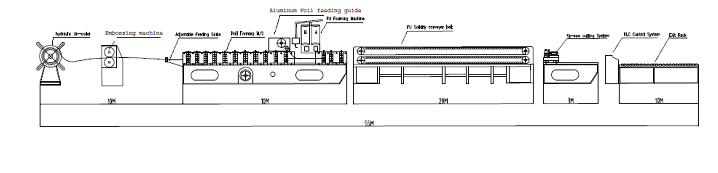

Working Flow of Roll Forming Machine
|
