Hydraulic Speed Ceiling Roll Forming Machine 30KW Stud And Track 70m / Min

High Speed Stud and Track Roll Froming Machine

1. Specification of the material

2. Machine Detailed Parameters

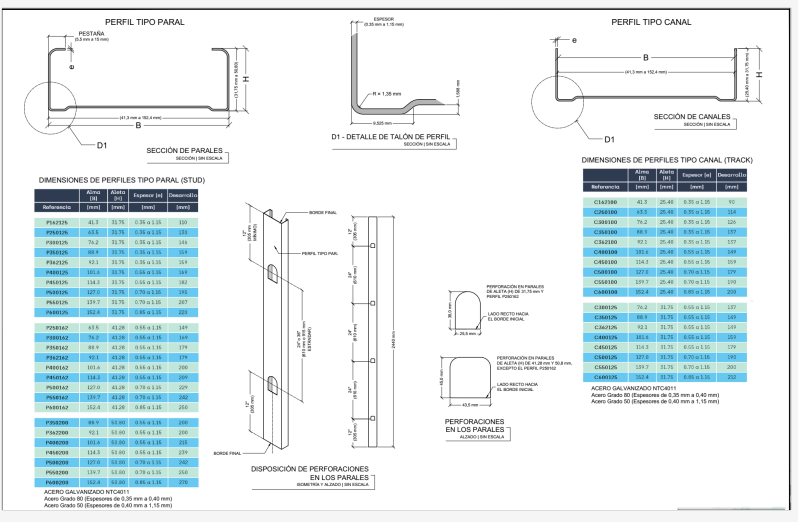

3. Profile drawing

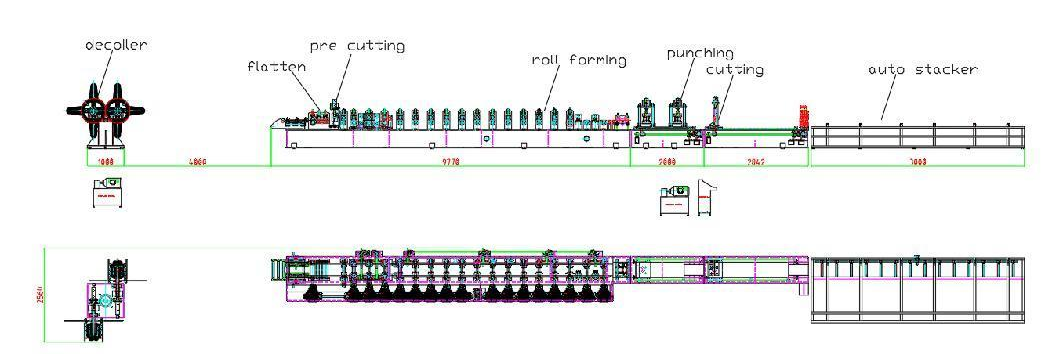

4. The Chart of Process Flow

5. Specification of Components

(1) 5T Double head hydraulic decoiler

• Steel coil width: 500 mm;
• Internal diameter of coil: variable, from480 mm to 520 mm
• Maximal out diameter:1500mm
• Maximum coil weight: 5000 Kgx 2
• Main poer: 5.5kw
• Hydraulic power: 4kw
• Quantity: 1

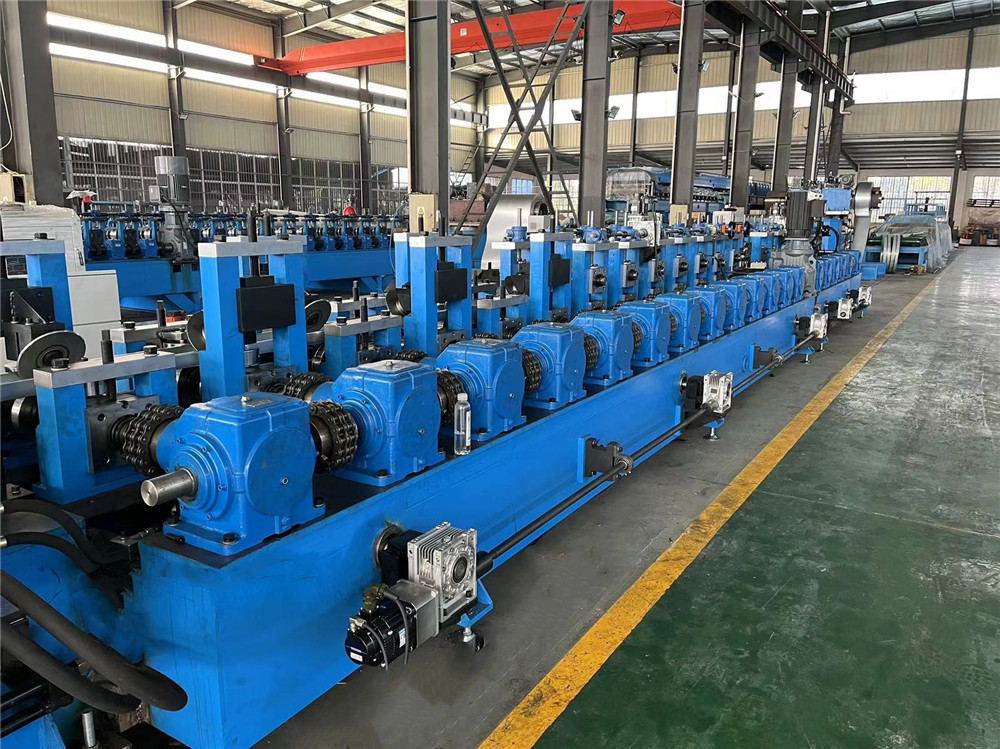

(2) Main Roll Forming Machine

• Roller material:CR12mov surface with chrome, HRC58-62 degree
• Shaft diameter: ￠60mm material: 40CR with tempering
• To avoid accidents, the driven parts will be covered with the protective cover
• Cooling system is included

(3) Machine Structure

• Main frame by 350H beam welding
• Machine structure: Wire-electrode cutting

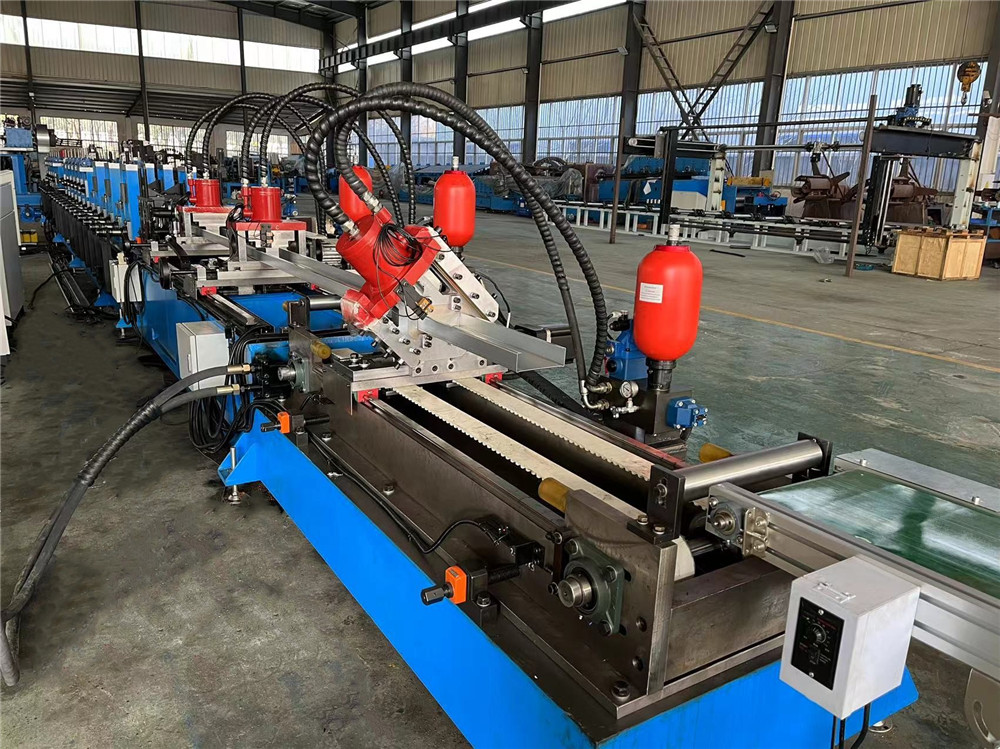

(4) Track punching& cutting system

• Machine adopt track punching and cutting system, Non-stop
• Two units punching system punching together
• Cutting power by hydraulic, 18.5KW with storage tank and cooling system
• Track cutting by servo motor, power in 5.5KW
• Cutting after forming: Cut the sheet after roll forming to required length
• Cutting motion: The main machine is NON-stop when cutting
• Material of blade:Cr12mov with heat treatment 58-60°

(5) Computer Control Cabinet

• Programmable setting of profile length and quantity
• Operating system language: English and Chinese
• Computer used to control length & quantity. Machine will automatically cut to length and stop when required quantity is achieved
• PLC: Panasonic or customerization

Usage:

a. Put the raw material(steel plate) through the beach to manufacture and process,it can guarantee that the products are neat, parallel and everything is uniformity.Please refer to the equipment regulation to know the function of locate angle iron.

b. In order to keep the product shape and precision, adopts welded sheet structure, motor reducer drive, chain

transmission,roller was chromed which can keep the molding plate surface smooth and not easy to be marked whenit is working

c. Feature : Ensure stability , precision and lifetime.

Advanced hydraulic drive, automatic punching and cutting after forming, no distorting or wasting, high level safety factor.

Zhangjiagang Saibo Science & Technology Co.,Ltd. is a professional manufacturer specializing in the developing and exporting of roll forming machine such as Metal roof &wall panels machines, C&Z-shaped pulins machines drywall Stud-track forming machines , Metal decks machines ,No- girder and Columnitation curves forming machines, Guard rails forming machines ,Downspout pipes forming machines and so on. Our company, which is located in zhangjiagang city ,.is close to Zhangjiagang Economy Development Area and Shanghai City with superior geographic position and convenient transportation.

Since 90s ,in the 20 centruies , the market for steel structure building industry boomed but with the development of steel structure industry ,the shorter period for construction and beautiful extermal appearance, as well reasonable price was occupied in the market of building industry.

Zhangjiagang Saibo Science & Technology Co., Ltd engaged in the steel structure industry in many years and devoted to developing some steel structure machines with a professional technology and reasonable price, we supply the best machines for our new and old costomers .In particular, we are a leading exporter in the field of steel structure construction, and can provide professional service, high quality ,through design, and installation. Our goal is" future by heartiness, faith leads to the world"

Warmly welcome to visit our factory and we are looking forward to cooperating with you for mutual benefits.
