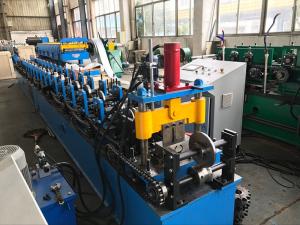

Cr12 Roller Ceiling Roll Forming Machine Double Head Decoiler 5.5kw

Specification of the material

1. suitable material: PPGI, GI

2. Width if the raw material: According to the final profile

3. Thickness: 0.4-0.8mm

2. Machine Detailed Parameters

3. Layout of the machine

Uncoiler—feeding—roll forming—rectify—punching&cutting—out table

4. Specification of Components

(1) 3T Double Head Hydraulic Un-coiler

• Width of feeding: 350mmX2
• Capability: 3 TonX2
• Bound of expand &fight: 420mm—550mm
• Main power: 4kw x2
• Hydraulic power: 3kw

(2) Main Roll Forming Machine

• Roller material: #45
• Shaft diameter: ￠56mm
• Main frame by steel plate welding

(3) Hydraulic cutting system

• Cutting after forming: Cut the sheet after roll forming to required length
• Material of blade:Cr12, 58-62 HRC hardness
• Length measuring: Automatic encoder length measuring

(4) Hydraulic stations

• Hydraulic power: 4kw
• Working pressure: 12-16Mpa
• Solenoid valve: 1 group
• Hydraulic oil: 46# hydraulic oil
• Quantity :1

5. Warranty

• Warranty: 1 year warranty from date of shipment
• Guarantee:

1: Guaranteed against malfunctions due to manufacturing defects for 1 year after date of shipment. Repairs will be made free of charge.

2: Repairs will not be performed free of change even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

3:Air ticket, transportation cost, hotel, meals and 100$ per day shall be for purchaser’s account if manufacturer’s engineer has to be send to purchaser’s factory to maintain the machine during the guarantee period.

6. Installation and training:

a. If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also train your workers/technician face to face.

b. Without visiting, we will send you user manual and video to teach you to install and operate.

C. If buyer needs our technician to go to your local factory, please arrange board and lodging and other necessary things.

FAQ

1) Q: Are you manufacturer or trading company?

A: We are manufacturer and trading company .

2) Q: Do you provide installing and training overseas?

A: Overseas machine install and worker training services are optional.

3) Q: How is your after sales support?

A: We provide technical support on line as well as overseas services by skillful technicians.

4) Q: How does your factory do regarding quality control?

A: There is no tolerance regarding quality control. Quality control complies with ISO9001. Every machine has to past testing running before it's packed for shipment.

5) How can I trust you that machines pasted testing running before shipping?

A: 1) We record the testing video for your reference. Or,

2) We welcome you visit us and test machine by yourself in our factory.

6) Q: Do you have this roof panel roll forming machine in stock?

A: No, machine is made to order.
