Double Head Decoiler Ceiling Roll Forming Machine 19 stations 40GP Container

1. Specification of the material

2. Machine Detailed Parameters

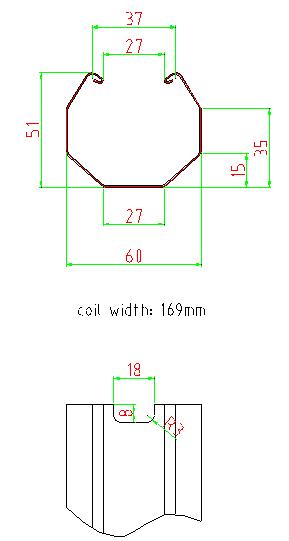

3. Profile drawing

4. Specification of Components

(1) 3T Double Head Hydraulic Un-coiler

• Width of feeding: 350mmX2
• Capability: 3 TonX2
• Bound of expand &fight: 420mm—550mm
• Main power: 4kw x2
• Hydraulic power: 3kw

(2) Main Roll Forming Machine

• Roller material: #45
• Shaft diameter: ￠56mm
• Main frame by steel plate welding

(3) Hydraulic cutting system

• Cutting after forming: Cut the sheet after roll forming to required length
• Material of blade:Cr12, 58-62 HRC hardness
• Length measuring: Automatic encoder length measuring

(4) Computer Control Cabinet

• Programmable setting of profile length and quantity
• Operating system language: English and Chinese
• Computer used to control length & quantity. Machine will automatically cut to length and stop when required quantity is achieved

5. Warranty

• Warranty: 1 year warranty from date of shipment
• Guarantee:

1: Guaranteed against malfunctions due to manufacturing defects for 1 year after date of shipment. Repairs will be made free of charge.

2: Repairs will not be performed free of change even during the guarantee period in the follow circumstances

- Damage occurs due to a natural disaster

- Malfunction occurs due to user error

- Malfunction occurs due to modifications

- Malfunction occurs due to further movement or shipment after installation

3:Air ticket, transportation cost, hotel, meals and 100$ per day shall be for purchaser’s account if manufacturer’s engineer has to be send to purchaser’s factory to maintain the machine during the guarantee period.

6. Installation and training:

a. If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also train your workers/technician face to face.

b. Without visiting, we will send you user manual and video to teach you to install and operate.

C. If buyer needs our technician to go to your local factory, please arrange board and lodging and other necessary things.
