Adjust by Hand Ceiling C Channel Roll Froming Machine With Hydraulic Decoiler

Categories Ceiling Roll Forming Machine
Brand Name: Saibo
Model Number: C channel High Speed Roll Forming Machine
Certification: CE/ISO
Place of Origin: China
MOQ: 1 set
Price: negotiation
Payment Terms: T/T, L/C
Supply Ability: 300 sets per year
Delivery Time: 70 working days after received deposit
Packaging Details: Suitable for ocean shipment
Product Name: C channel High Speed Roll Forming Machine
Power: 11KW+7.5kw
Size Of purlin: C channel
Steel thickness: 0.7-1.8mm
Decoiler: Hydraulic
Station: About 14 stations + one station for rectify
Roller material: Gcr15
Drive: By chain
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Adjust by Hand Ceiling C Channel Roll Froming Machine With Hydraulic Decoiler

Adjust by Hand Roll Forming Machine With Hydraulic Decoiler 0.7-1.8mm


C channel High Speed Roll Forming Machine 0.7-1.8mm


1. Specification of the material

1Suitable MaterialHRC material, G550
2Width of the raw materialBase on profile

2. Machine Detailed Parameters

1Roll Forming
C channel High Speed Roll Forming Machine
2Machine structure
Wire-electrode cutting structure
3Total power

Motor power-11kw

Hydraulic power-7.5kw

Servo power: 3kw

4Roller stations

About 14 stations + one station for rectify


5

Productivity


0.7-1.0mm, 0-40m/min

1.0-1.5mm, 0-30m/min

1.5-1.8mm, 0-15m/min

6

Drive system


By chain
7

Diameter of shaft


¢70mm solid shaft

8

Voltage


220V 60Hz 3phases (Customized)
9

Color Of The Machine


Yellow and blue

10

Deliver Time


70 days
11

Terms Of Payment


30%T/T 70% pay before shipment

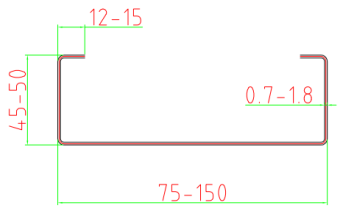

3. Profile drawing


4. The Chart of Process Flow


5. Specification of Components


(1) 5T hydraulic decoiler

  • Steel coil width: 550 mm;
  • Internal diameter of coil: variable, from380 mm to 520 mm
  • Maximal out diameter:1200mm
  • Maximum coil weight: 5T
  • Main motor power: 5.5KW

(2) Main Roll Forming Machine

  • Roller material: Gcr15, quenching treamtment, HRC58-62
  • Shaft diameter: ¢70mm material: SAE1045 with tempering
  • Change size by hand wheel
  • To avoid accidents, the driven parts will be covered with the protective cover

(3) Machine Structure

  • Main frameby steel plate welding
  • Machine structure: Wire-electrode cutting
  • By chain

(4) Track cutting system

  • Adopt the hydraulic cutting
  • Cutting after forming: Cut the sheet after roll forming to required length
  • Material of blade:Cr12, 58-62 HRC hardness
  • Cutting power by hydraulic,7.5KW
  • Servo power: 3KW

(5) Hydraulic System

  • Hydraulic power: 7.5kw
  • Working pressure: maximal 25Mpa
  • Solenoid valve: 1 group
  • Hydraulic oil: 46# hydraulic oil

(6) Computer Control Cabinet

  • Programmable setting of profile length and quantity
  • Operating system language: English and Chinese
  • Computer used to control length & quantity. Machine will automatically cut to length and stop when required quantity is achieved
  • PLC: Panasonic or customerization

FAQ


Q: Can you make the machine according to my design or proto type?

A: Yes. We have an experienced team for working out the most suitable design and production plan for the machine that you are going to book with us.


Q: How do you guarantee the quality of the products?

A: Strict product quality, unqualified resolute don't factory.This is the tenet of our factory

Every one of our products have strict testing procedures, must be 100% quality assurance.


Q: How can we be assured that you will deliver us quality machine with spare parts?
A:1. Customers to send the technical people to our factory for checking the quality.

2.We can send the technicians to the buyer`s factory for the installation of the machine.

3.Good aftersales-service, its free of charge during the warranty period.
