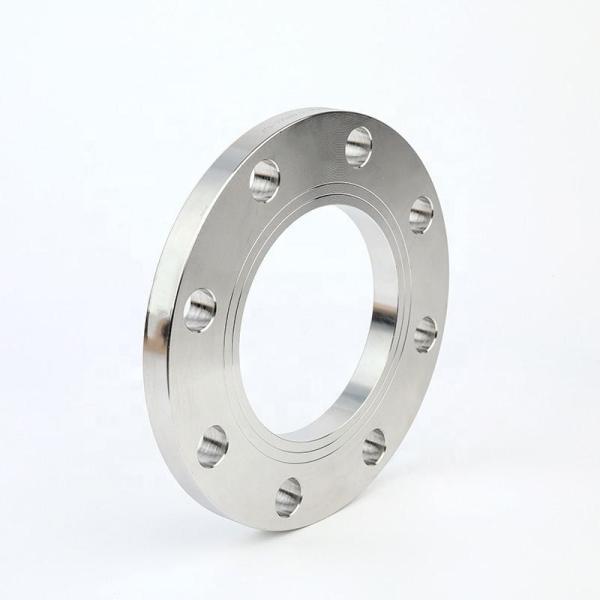

EN1092-1 Steel Forged So Flanges X10Ni9 1.5682 Steel Material

X10Ni9 so flanges 1.5682 steel so flanges EN1092-1 Steel forged So flanges


Grade :X10Ni9
Number:1.5682
Classification:Alloy special steel
Standard:
EN 10216-4: 2014 Seamless steel tubes for pressure purposes. Technical delivery conditions. Non-alloy and alloy steel tubes with specified low temperature properties
EN 10253-2: 2007 Butt-welding pipe fittings. Non alloy and ferritic alloy steels with specific inspection requirements

Dimensions :ANSI/ASME B16.5, B 16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, etc.
SIZE1/2″ (15 NB) to 48″ (1200NB)
CLASS/ PRESSURE150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 etc.
DINDIN2527, DIN2566, DIN2573, DIN2576, DIN2641, DIN2642, DIN2655, DIN2656, DIN2627, DIN2628, DIN2629, DIN 2631, DIN2632, DIN2633, DIN2634, DIN2635, DIN2636,DIN2637, DIN2638, DIN2673
Flange Face TypeFlate Face (FF), Raised Face (RF), Ring Type Joint (RTJ)
StandardANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, etc.
Surfacepickling, annealing, bright, sandblast, hairline
Test CertificatesEN 10204/3.1B
Raw Materials Certificate
100% Radiography Test Report
Third Party Inspection Report, etc
Type:Plate Flange, Flat Flange, Slip on Flange, Welding Neck Flange, Long Welding Neck Flange, Blind Flange, Socket Welding Flange, Thread Flange, Screwed Flange, Lap Joint Flange
Connection TypeRaised Face, Flat Face, Ring Type Joint, Lap-Joint Face, Large Male-Female, Small Male-Female, Large Tongue, Groove, Small Tongue, Groove.
Production GradeASTM A182 F 304, 304L, 304H, 309S, 309H, 310S, 310H, 316, 316L, 316Ti, 316L, 317, 317L, 321, 347, 347H, 348, UNS S31254, UNS 8020, F45, S30815, F46, S30600, F904L, A182 F56, S33228, F58, S31266, F62, N08367
ASTM A182 F5, F5a , F9, F11, F12, F22, F91;
ASTM A182 F51/UNS S31803, F53/UNS S32750, F55/UNS S32760

Chemical composition % of steel X10Ni9 (1.5682): EN 10216-4-2014
CSiMnNiPSMoVCu
max 0.130.15 - 0.350.3 - 0.88.5 - 9.5max 0.02max 0.005max 0.1max 0.05max 0.3


Mechanical properties of steel X10Ni9 (1.5682)
Rm - Tensile strength (MPa)690-840
Rp0.2 0.2% proof strength (MPa)510
KV - Impact energy (J) transverse,-196°
27
-120°
35
-110°
35
-100°
40
-90°
40
-60°
50
-50°
50
-40°
50
-20°
50
+20°
50
KV - Impact energy (J) longitud.,-196°
40
-120°
50
-110°
50
-100°
60
-90°
60
-60°
70
-50°
70
-40°
70
-20°
70
+20°
70
A - Min. elongation at fracture (%) longitud.,20
A - Min. elongation at fracture (%) transverse,18
