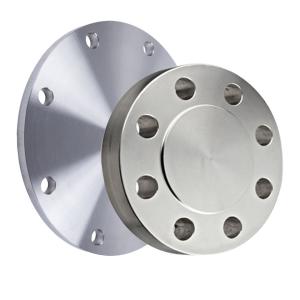

P265GH Spectacle Blind Flanges 1.0425 Blind Steel Forged EN1092 Flange

P265GH Spectacle Blind flanges ( 1.0425 ) Blind flange EN1092-1 Steel forged flanges


Grade :P265GH
Number:1.0425
Classification:Non-alloy quality steel
Density:7.85 g/cm ³
Standard:
EN 10028-2: 2009 Flat products made of steels for pressure purposes. Non-alloy and alloy steels with specified elevated temperature properties
EN 10216-2: 2014 Seamless steel tubes for pressure purposes. Technical delivery conditions. Non-alloy and alloy steel tubes with specified elevated temperature properties
EN 10217-5: 2002 Welded steel tubes for pressure purposes. Submerged arc welded non-alloy and alloy steel tubes with specified elevated temperature properties
EN 10217-2: 2002 Welded steel tubes for pressure purposes. Electric welded non-alloy and alloy steel tubes with specified elevated temperature properties
EN 10253-2: 2007 Butt-welding pipe fittings. Non alloy and ferritic alloy steels with specific inspection requirements
EN 10273: 2007 Hot rolled weldable steel bars for pressure purposes with specified elevated temperature properties


Chemical composition % of steel P265GH (1.0425): EN 10028-2-2003
CSiMnNiPSCrMoVNNbTiAlCu-
max 0.2max 0.40.8 - 1.4max 0.3max 0.025max 0.015max 0.3max 0.08max 0.02max 0.012max 0.02max 0.03max 0.02max 0.3Cr+Cu+Mo+Ni < 0.7


Mechanical properties of steel P265GH (1.0425)
Nominal thickness (mm):to 100100 - 150150 - 250
Rm - Tensile strength (MPa) (+N)410-530400-530390-530
Nominal thickness (mm):to 1616 - 4040 - 6060 - 100100 - 150150 - 250
ReH - Minimum yield strength (MPa) (+N)265255245215200185
KV - Impact energy (J) transverse, (+N)-20°
27

27
+20°
40
KV - Impact energy (J) longitud.,-10°
28

40
+20°
47
A - Min. elongation at fracture (%) (+N)22-23
A - Min. elongation at fracture (%) transverse, (+N)21

Equivalent grades of steel P265GH (1.0425)
EU
EN
USA
-
Germany
DIN,WNr
Japan
JIS
France
AFNOR
England
BS
Italy
UNI
Spain
UNE
Sweden
SS
Poland
PN
Czechia
CSN
Austria
ONORM
Russia
GOST
Inter
ISO
P265GH
A414E
A516Gr.60
Gr.A
1.0425
HII
St45.8
SG295
A42AP
A42CP
A42F
151-400
161-430
161Gr.400
164Gr.400
244Gr.400
Fe410-1KW
Fe410KG
Fe410KT
P265GH
A42RCI
1430
1431
St41K
11416
11418
St41KW
16K
20K
F5
F7
