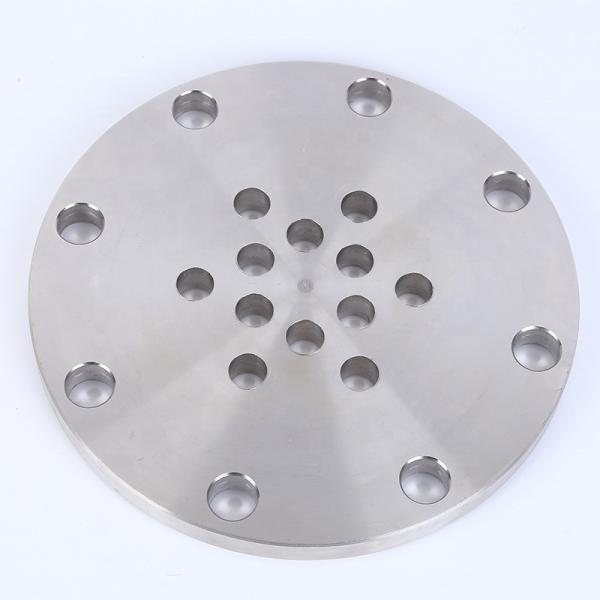

10CrMo5-5 SO Flange 1.7338 En1092-1 Plate Steel Forged Flanges

10CrMo5-5 SO flange 1.7338 so plate en1092-1 plate Steel forged flanges en1092-1 so flange


Grade :10CrMo5-5
Number:1.7338
Classification:Alloy special steel
Standard:
EN 10216-2: 2014 Seamless steel tubes for pressure purposes. Technical delivery conditions. Non-alloy and alloy steel tubes with specified elevated temperature properties
EN 10253-2: 2007 Butt-welding pipe fittings. Non alloy and ferritic alloy steels with specific inspection requirements

Chemical composition % of steel 10CrMo5-5 (1.7338): EN 10216-2-2014
CSiMnNiPSCrMoAlCu
max 0.150.5 - 10.3 - 0.6max 0.3max 0.025max 0.011 - 1.50.45 - 0.65max 0.04max 0.3


Mechanical properties of steel 10CrMo5-5 (1.7338)
Nominal thickness (mm):to 60
Rm - Tensile strength (MPa) (+NT)410-560
Nominal thickness(mm):to 1616 - 4040 - 60
Rp0.2 0.2% proof strength (MPa) (+NT)275275265
KV - Impact energy (J) longitud.,+20°
40
KV - Impact energy (J) transverse,+20°
27
A - Min. elongation at fracture (%) longitud., (+NT)22
A - Min. elongation at fracture (%) transverse, (+NT)20
Pressure150LBS-2500LBS
StandardASME B16.9 DIN2616 DIN2615 DIN2605 BS 1640-3-1968 BS 1640-4-1968 JIS B2313 GOST17375 GOST17378 GB/T
MaterialStainless Steel F304 304L 304H 316 316L 310 310S 321 321H 317 317L 347 347H 904L SS31803 2205 2507
Forming typeForged or as required
Main productSeamless & Welded steel pipe flange
