55mm Nema 24 Stepper Motor with 2 Phase Bipolar Design and 1 187 Max. Reduction Ratio

Categories Planetary Geared Stepper Motor
Warranty: 3months-1year
Place of Origin: China
Brand Name: Umot
Model Number: 60HS5405
Phase: 2
Type: Hybrid
Current / Phase: 3.5A
Product name: Nema 24 Planetary Gearbox Stepper Motor
Motor length: 60x55mm
Ring material: Metal
Number of gear trains: 1-4
Bearing at output: Ball bearings
Max radial load(10mm from flange): 300N
Max shaft axial load: 200N
Current: 3.5A
Reduction ratio: 3.6/4.3/13/15/18/23/47/55/65/77/96/121:1
Certification: RoHS, CE, CCC
MOQ: 5 pieces
Price: $58.13/pieces 5-99 pieces
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

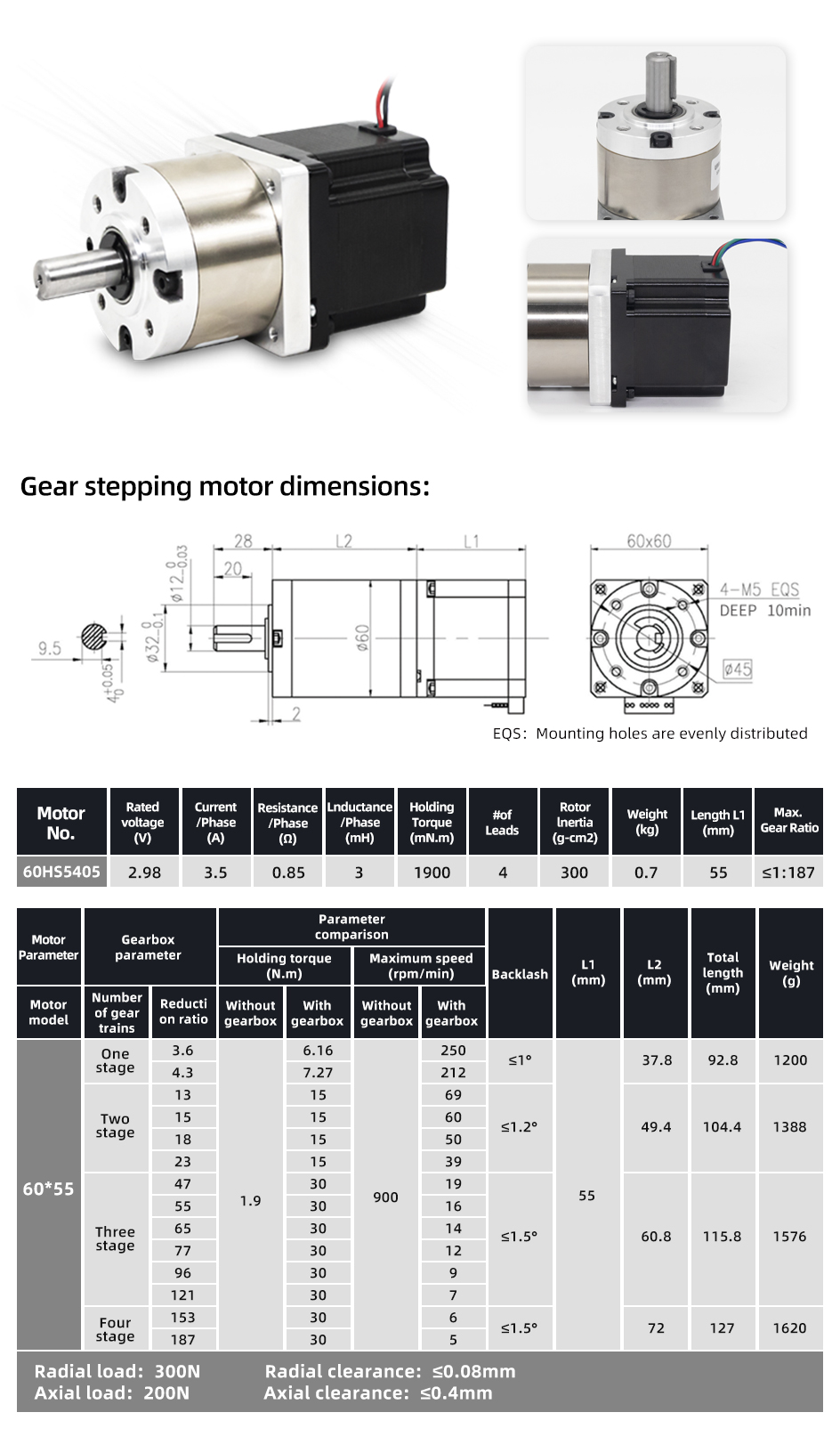

55mm Nema 24 Stepper Motor with 2 Phase Bipolar Design and 1 187 Max. Reduction Ratio

Nema 24 60mm High Torque Geared Stepper Motor With Planetary Gearbox Stepping Motor With Reducer Gearbox
Item
Value
Product Name
Nema 24 Geared Stepper Motor
Warranty
3months-1year
Place of Origin
China
Brand Name
Umot
Model Number
60HS5405
Phase
2 Phase
Type
Hybrid
Rated Voltage
2.98V
Rated Current
3.5A
Certification
CCC, ce, RoHS
Motor length
60x55mm
Ring material
Metal
Reduction ratio
3.6/4.3/13/15/18/23/47/55/65/77/96/121:1
Number of gear trains
1-4
Efficiency
73-90%
Bearing at output
Ball bearings
Max radial load(10mm from flange)
300N
Max shaft axial load
200N
Cheap 55mm Nema 24 Stepper Motor with 2 Phase Bipolar Design and 1 187 Max. Reduction Ratio for sale
