Categories | Planetary Geared Stepper Motor |
---|---|
Warranty: | 1 year |
Place of Origin: | Chongqing, China |
Brand Name: | Umot |
Model Number: | 35HSH2408/5401 |
Phase: | 2 |
Type: | Hybrid |
Current / Phase: | 1A |
Motor length: | 28/39mm |
Ring material: | Metal |
Number of gear trains: | 1-4 |
Bearing at output: | Ball bearings |
Gearbox torque: | 0.668-6N.m |
Torque: | 200/250m.Nm |
Rated Current: | 1A |
Rated Voltage: | 4.5V |
Reduction ratio: | 3.7:1/5.2:1/14:1/19:1/27:1/51:1/71:1/100:1/139:1 |
Efficiency: | 73-90% |
MOQ: | 5 pieces |
Price: | $31.69/pieces 5-99 pieces |
Company Info. |
Chongqing Umot Technology Co., Ltd. |
Verified Supplier |
View Contact Details |
Product List |

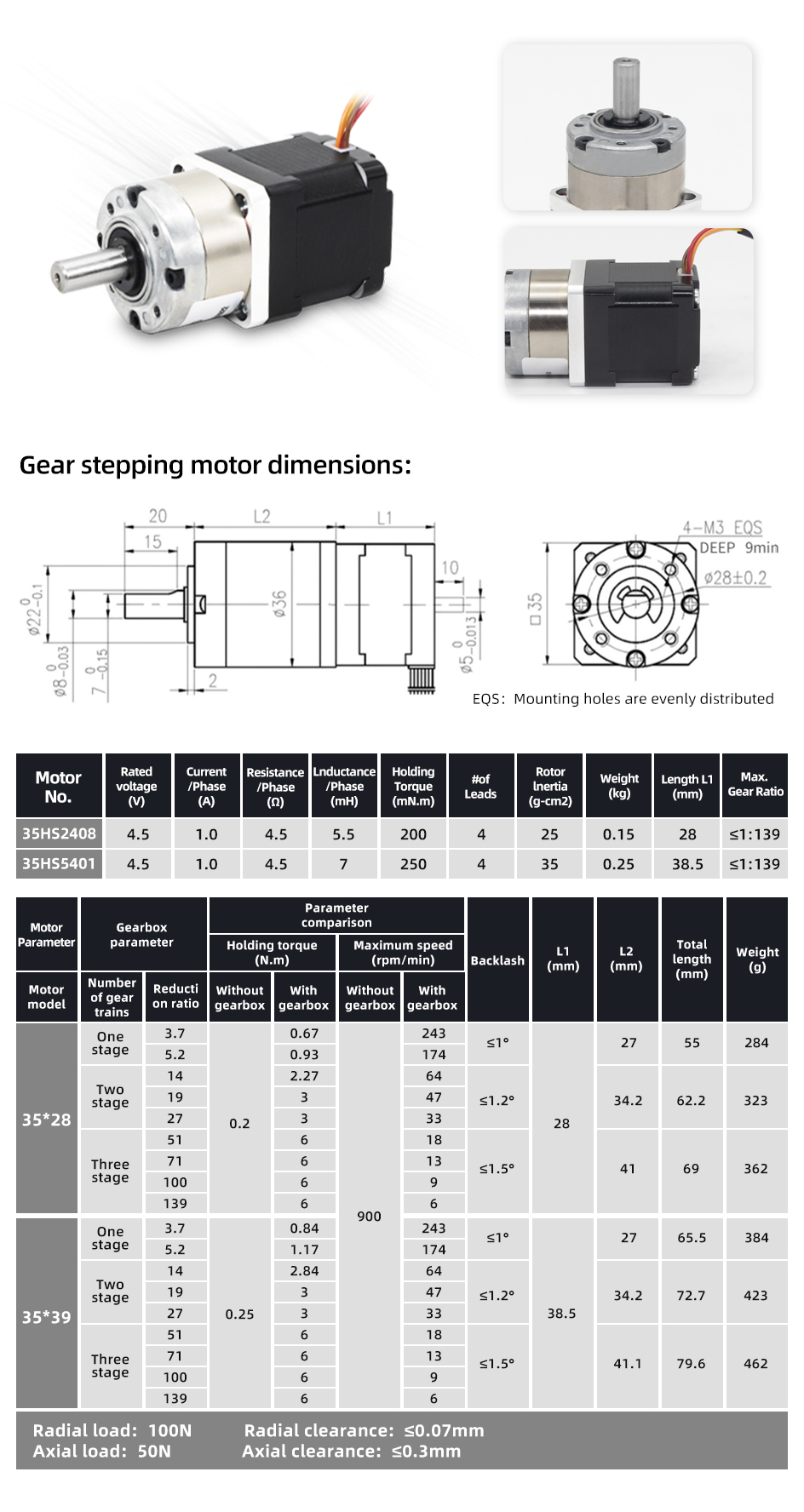

Item | Value |
Product name | Planetary gearbox stepper motor |
Model number | 35HSH2408/35HSH5401 |
Motor type | Hybrid |
Certification | CCC, ce, RoHS |
Step angle | 1.8° |
Phase | 2 Phase |
Holding torque | 200/250mN.m |
Rated voltage | 4.5V |
Rated current | 1.0A |
Motor weight | 0.15-0.25kg |
Motor length | 35mmx35mm |
Load range | 1.8N.m-6.0N.m |
Efficiency | 73%-90% |
![]() |
