Nema 23 Hybrid Motor 2 Phase Automation Planetary Gearbox for Embroidery Machine

Categories Planetary Geared Stepper Motor
Warranty: 1 year
Place of Origin: Chongqing, China
Brand Name: Umot
Model Number: 57HS5417
Phase: 2
Type: Hybrid
Current / Phase: 2A
Product name: Geared Stepper Motor
Motor size: Nema 23
Holding Torque: 950m.Nm
Rated Current: 2A
Rated Voltage: 1.7V
Ring material: Metal
Bearing at output: Ball bearings
Number of gear trains: 1-4
Reduction ratio: 3.6/4.3/13/15/18/23/47/55/65/77/96/121/153/187:1
Efficiency: 66-90%
MOQ: 5 pieces
Price: $55.58/pieces 5-99 pieces
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

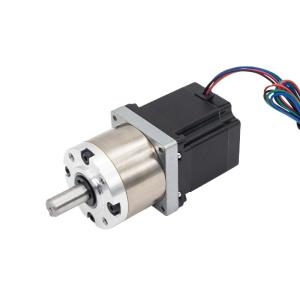

Nema 23 Hybrid Motor 2 Phase Automation Planetary Gearbox for Embroidery Machine

High Precision Hybrid 2 Phase Nema 23 Automation Planetary Gearbox Geared Stepper Motor With Gearbox Reducer For Embroidery Machine

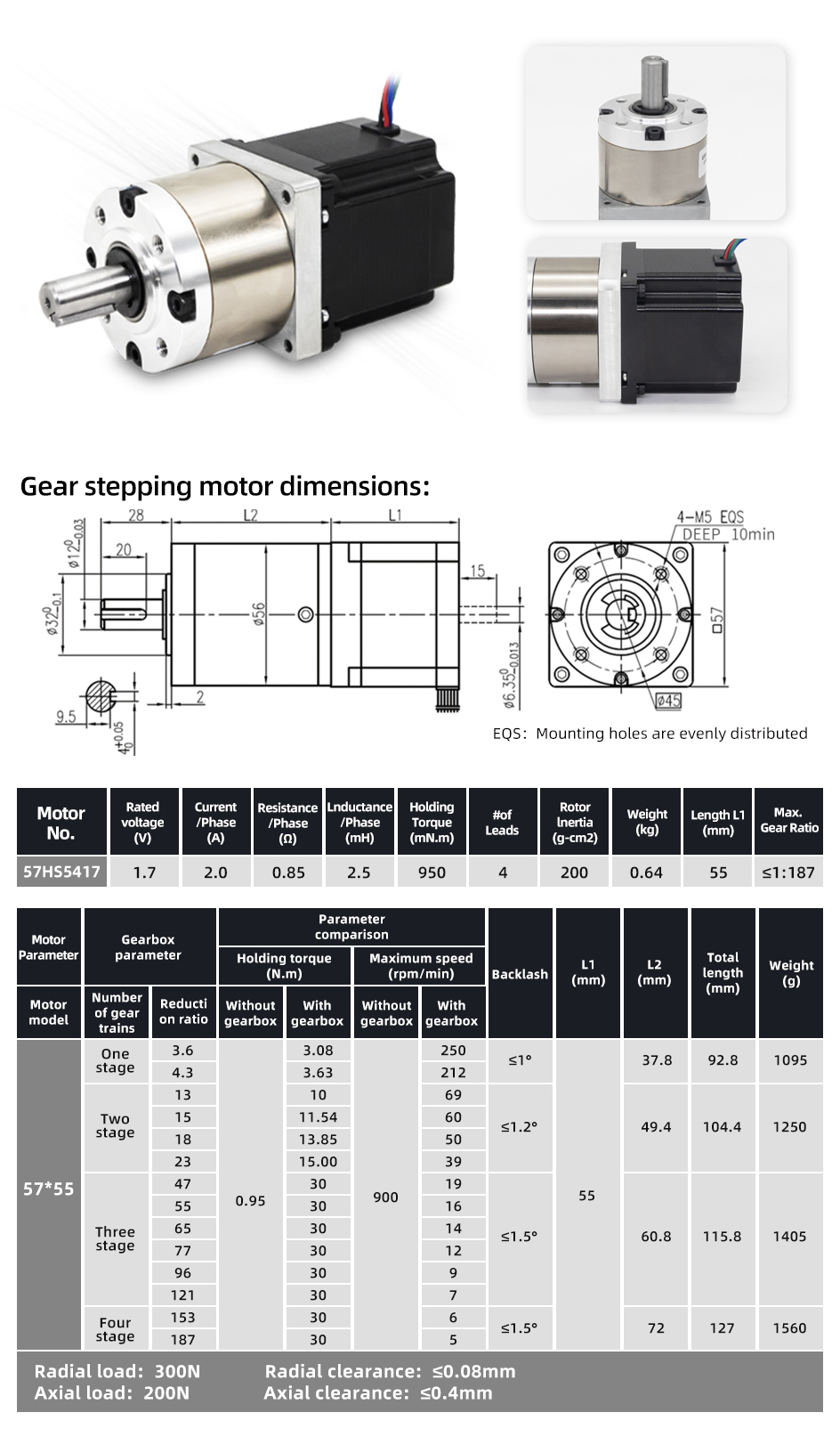

Product name
Planetary Gearbox Stepper Motor
Motor size
Nema 23 57mm
Warranty
1year
Place of Origin
China
Brand Name
Umot
Phase
2 Phase
Rated voltage
1.7V
Rated current
2.0A
Type
Hybrid
Certification
CCC, ce, ISO
Color
Silver
Bearing at output
Ball bearings
Number of gear trains
1-4
Reduction ratio
3.7:1/5.2:1/14:1/19:1/27:1/51:1/71:1/100:1/139:1/189:1/264:1/369:1
Torque of gearbox
3.078-30N.m
Efficiency
66%-90%
Cheap Nema 23 Hybrid Motor 2 Phase Automation Planetary Gearbox for Embroidery Machine for sale
