Categories | Planetary Geared Stepper Motor |
---|---|
Warranty: | 1 years |
Applicable Industries: | Manufacturing Plant, Machinery Repair Shops, Printing Shops, Other |
Weight (KG): | 1.1 KG |
Gearing Arrangement: | Planetary |
Output Torque: | 40N.m |
Input Speed: | 3000rpm |
Output Speed: | 75rpm |
Place of Origin: | China |
Brand Name: | Umot |
Product Name: | Reduction Ratio 40 Planetary Gearbox Reducer |
Reduction Ratio: | 1:40 |
Other Ratio: | Customized Ratio |
Rated Output Torque: | 40N.m |
Rotor Inertia: | 0.064kg.cm2 |
Noise: | ≤65dB |
Backlash: | ≤15arcmin |
Transmission Efficiency: | ≥94% |
Emergency Stop Torque: | Max Torque: 2 Times of the Rated Torque |
Applicable Motors: | For Size 60mm 400W AC Servo Motor |
MOQ: | 2 pieces |
Price: | $74.66/pieces 2-19 pieces |
Company Info. |
Chongqing Umot Technology Co., Ltd. |
Verified Supplier |
View Contact Details |
Product List |
Item | Value |

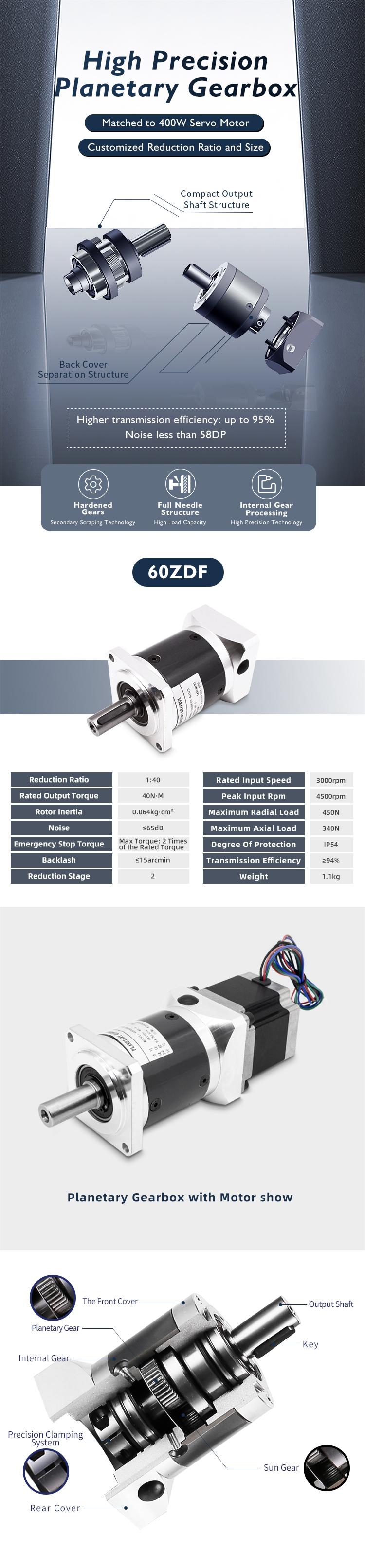

Product Name | Reduction Ratio 40 Planetary Gearbox Reducer |
Motor Size | 60ZDF |
Applicable Motors | For Panasonic Delta Simens Size 60mm 400W AC Servo Motor |
Reduction Ratio | 1:40 |
Other Ratio | Customized Ratio |
Rated Output Torque | 40N.m |
Rotor Inertia | 0.064kg.cm2 |
Noise | ≤65dB |
Emergency Stop Torque | Max Torque: 2 Times of the Rated Torque |
Backlash | ≤15arcmin |
Reduction Stage | 2 |
Rated Input Speed | 3000rpm |
Peak Input Rpm | 4500rpm |
Maximum Radial Load | 450N |
Maximum Axial Load | 340N |
Degree Of Protection | IP54 |
Transmission Efficiency | ≥94% |
Weight | 1.1kg |
![]() |
