| Categories | Fiber Optic PLC Splitter |
|---|---|
| Brand Name: | YINGDA |
| Model Number: | 1*16 fanout splitter |
| Certification: | ISO |
| Place of Origin: | China |
| MOQ: | 100 pcs |
| Price: | 1.1USD-4.58USD |
| Supply Ability: | 10,000 pcs per month |
| Delivery Time: | 5-8days after payment |
| Packaging Details: | 2pc/ box, 20pcs/carton box |
| split ratio: | 1:16 splitter with fanout kits |
| connector: | SC/APC, SC/UPC, LC/APC,LC/UPC |
| fiber type: | corning fiber SMF -28e G657A1 |
| insertion loss: | 13.6dB |
| Uniformity (Max.): | 1.4dB |
| wavelength: | 1260 - 1650 nm |
| PDL(Max.): | 0.3dB |
| Standard: | Telcordia GR-1221 and GR-1209 |
| tube dimension: | 60*12*4mm |
| cable diameter: | 0.9mm |
| cable color: | white |
| Company Info. |
| YINGDA TECHNOLOGY LIMITED |
| Verified Supplier |
| View Contact Details |
| Product List |

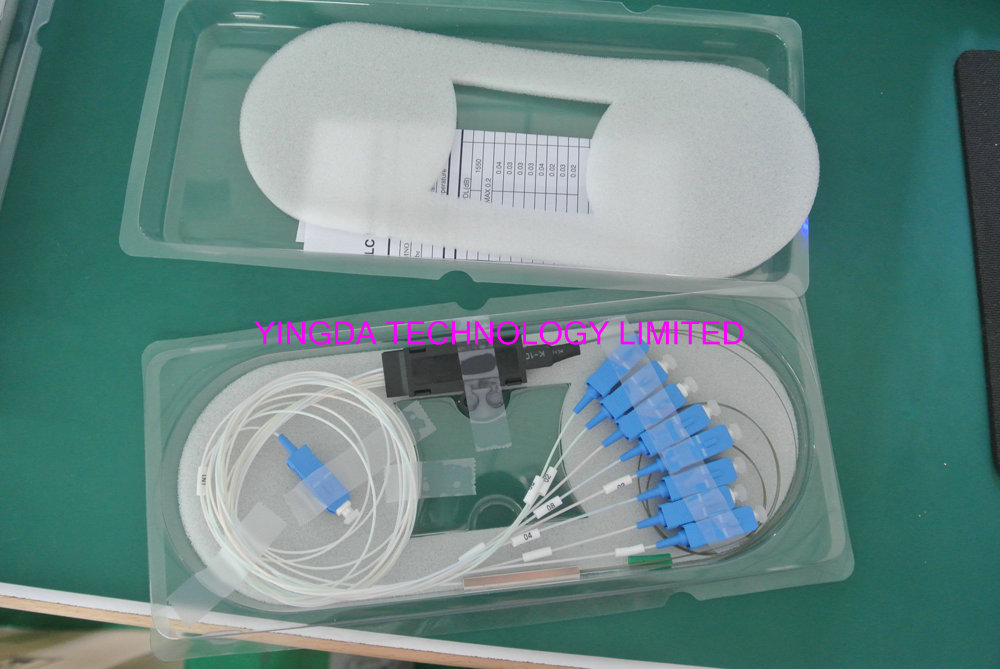

1x16 Single Mode PLC Splitter (Planar Lightwave Circuit Splitter) with Fan Out SC/UPC Connectors
Single mode standard tree coupler module 1X3, 3X3, 1X4, 1X8, 1X16, 1X32 and 2X4, 2X8, 2X16 and 2X32 port ratios are available. They offer very low insertion loss, low polarization dependence, well controlled uniformity as well as excellent environmental stability. Standard tree coupler modules have been extensively used to split and mix optical signals in CATV, LANs and all other kinds of optical communication systems.
Singel Mode PLC Splitter Features
Technical Specs for PLC Splitter with Connector
1xn Fiber PLC SPLITTER
| Item | 1x2 | 1x4 | 1x8 | 1x16 | 1x32 | 1x64 | 1x128 | |
| Fiber Type | G.657.A | |||||||
| Working Wavelength | 1260nm~1650nm | |||||||
| Standard Insertion Loss(dB) | ≤4.2 | ≤7.6 | ≤10.7 | ≤14.0 | ≤17.2 | ≤20.8 | ≤24.0 | |
| P-Grade Insertion Loss(dB) | ≤4.0 | ≤7.4 | ≤10.5 | ≤13.8 | ≤17.0 | ≤20.4 | ≤23.7 | |
| Uniformity(dB) | ≤0.6 | ≤0.8 | ≤0.8 | ≤1.0 | ≤1.5 | ≤2.0 | ≤2.0 | |
| PDL(dB) | ≤0.2 | ≤0.2 | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.4 | ≤0.5 | |
| Wavelength Dependent Loss(dB) | ≤0.6 | ≤0.8 | ≤0.8 | ≤1.0 | ≤1.5 | ≤2.0 | ≤2.0 | |
| Return Loss(dB) | ≥50 | |||||||
| Directivity(dB) | ≥55 | |||||||
| Operating Temp.Gange | -40℃~+85℃ | |||||||
| Note:The above parameter is for Splitter with connector.If w/o connector,insertion loss will reduce by 0.2dB. | ||||||||
2XN splitter
| Item | 2x2 | 2x4 | 2x8 | 2x16 | 2x32 | 2x64 | 2x128 | ||
| Fiber Type | G.657.A | ||||||||
| Working Wavelength | 1260nm~1650nm | ||||||||
| Standard Insertion Loss(dB) | ≤4.4 | ≤8.0 | ≤11.0 | ≤14.6 | ≤17.8 | ≤21.0 | ≤24.4 | ||
| P-Grade Insertion Loss(dB) | ≤4.2 | ≤7.7 | ≤10.8 | ≤14.1 | ≤17.4 | ≤20.7 | ≤24.0 | ||
| Uniformity(dB) | ≤0.8 | ≤1.0 | ≤1.2 | ≤1.5 | ≤1.8 | ≤2.0 | ≤3.0 | ||
| PDL(dB) | ≤0.2 | ≤0.2 | ≤0.3 | ≤0.3 | ≤0.3 | ≤0.4 | ≤0.5 | ||
| Wavelength Dependent Loss(dB) | ≤0.8 | ≤1.0 | ≤1.2 | ≤1.5 | ≤1.8 | ≤2.0 | ≤3.0 | ||
| Return Loss(dB) | ≥50 | ||||||||
| Directivity(dB) | ≥55 | ||||||||
| Operating Temp.Gange | -40℃~+85℃ | ||||||||
| Note:The above parameter is for Splitter with connector.If w/o connector,insertion loss will reduce by 0.2dB. | |||||||||
