| Categories | Fiber Optic PLC Splitter |
|---|---|
| Brand Name: | YINGDA |
| Model Number: | 1x32 plc splitter |
| Certification: | ISO |
| Place of Origin: | china |
| MOQ: | 100 pcs |
| Price: | 1.1USD-4.58USD |
| Payment Terms: | Western Union, T/T, MoneyGram |
| Supply Ability: | 10,000 pcs per month |
| Delivery Time: | 5-8days after payment |
| Packaging Details: | 1pc/ box, 20pcs/carton box |
| Split Count: | 32cores |
| connector: | SC APC/ UPC |
| fiber type: | singlemode G657A1 |
| insertion loss: | 16.5dB |
| Uniformity (Max.): | <1.3dB |
| wavelength: | 1260 - 1650 nm |
| PDL(Max.): | 0.3dB |

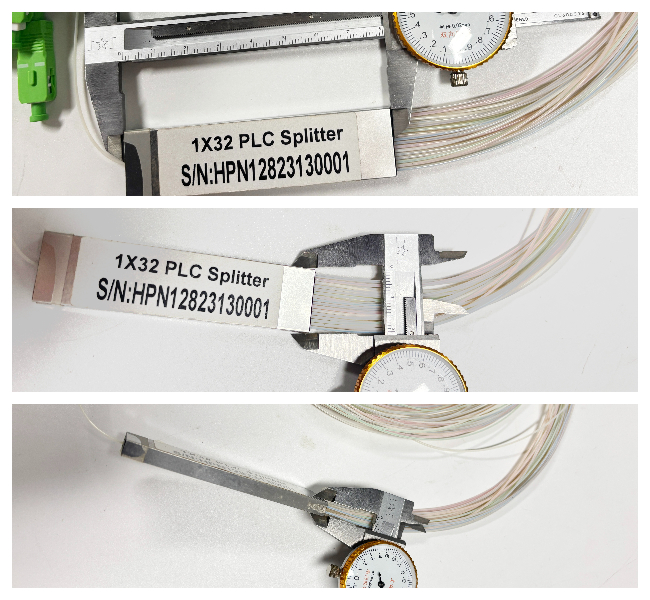

| steel tube: | 80×20×6mm |
| Company Info. |
| YINGDA TECHNOLOGY LIMITED |
| Verified Supplier |
| View Contact Details |
| Product List |

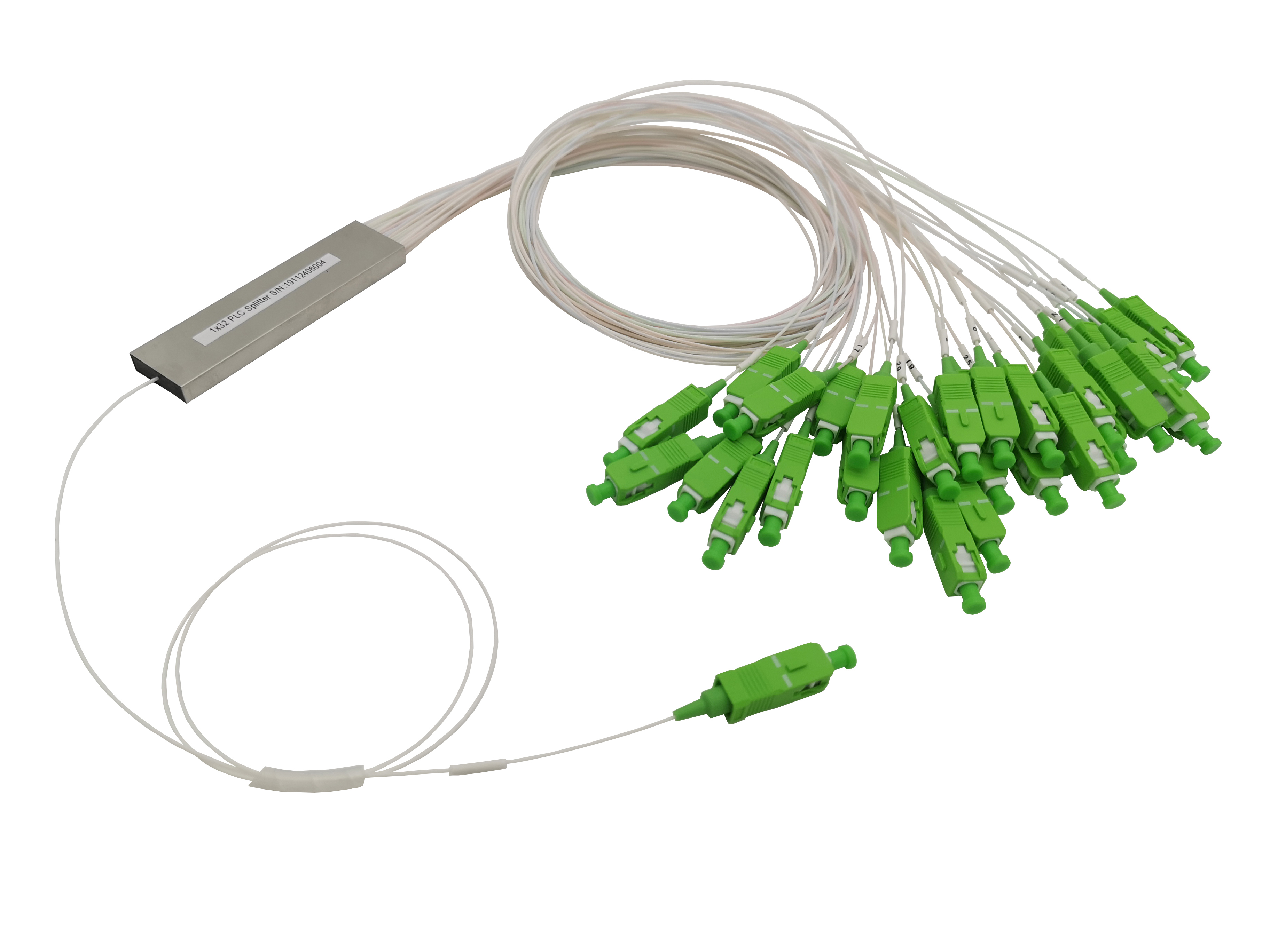

ODN 1:32 Optical Splitter MIni Module Fiber Optic PLC Splitter 1x32 Tight Buffer White Hytrel 0.9mm LSZH
Optical coupler is an optical device that combines or splits power from optical fibers. Optical splitter divides light from a single fiber into two or more fiber channels.
Fiber PLC splitter Sepcification:
| Parameter | Sepcification | ||||||||||
| Operating Wavelength(nm) | 1260~1620 | ||||||||||
| Type | 1*2 | 1*4 | 1*8 | 1*16 | 2*4 | 2*8 | 2*16 | 1*32 | 2*32 | 1*64 | 2*64 |
| Insertion Loss(dB) Max. | <4.0 | <7.3 | <10.8 | <13.8 | <7.6 | <11.2 | <14.5 | <17.2 | <18.2 | <20.5 | <21 |
| Unifromity(dB) Max. | <0.6 | <0.8 | <1.0 | <1.5 | <1.0 | <1.5 | <2.0 | <2.0 | <2.5 | <2.5 | <3.0 |
| PDL(dB) Max. | <0.2 | <0.2 | <0.2 | <0.3 | <0.3 | <0.3 | <0.4 | <0.3 | <0.4 | <0.3 | <0.3 |
| Directivity(dB) Min. | 55 | ||||||||||
| Return Loss(dB) Min. | 55(50) | ||||||||||
| Opterating Temperature(°C) | -40~+85 | ||||||||||
| Storage Temperature(°C) | -40~+85 | ||||||||||
| Fiber Length | 1m or custom length | ||||||||||
| Fiber Type | Corning SM-28e fiber | ||||||||||
| Connector Type | Custom specified | ||||||||||
Fiber PLC splitter Features
1x4, 1x8, 1x16, 1x32 and 1x64 configurations available
2x4, 2x8, 2x16, 2x32 configurations available
Telcordia GR-1209 & GR-1221 qualified
Low insertion loss, PDL, Back Reflection
High uniformity
Compact package
Fiber PLC splitter Applications:
• LAN, WAN & Metro Networks
• Telecommunication Networks
• Passive Optical Networks
• FTT(X) Systems
• CATV
• Value Added Modules
Product details

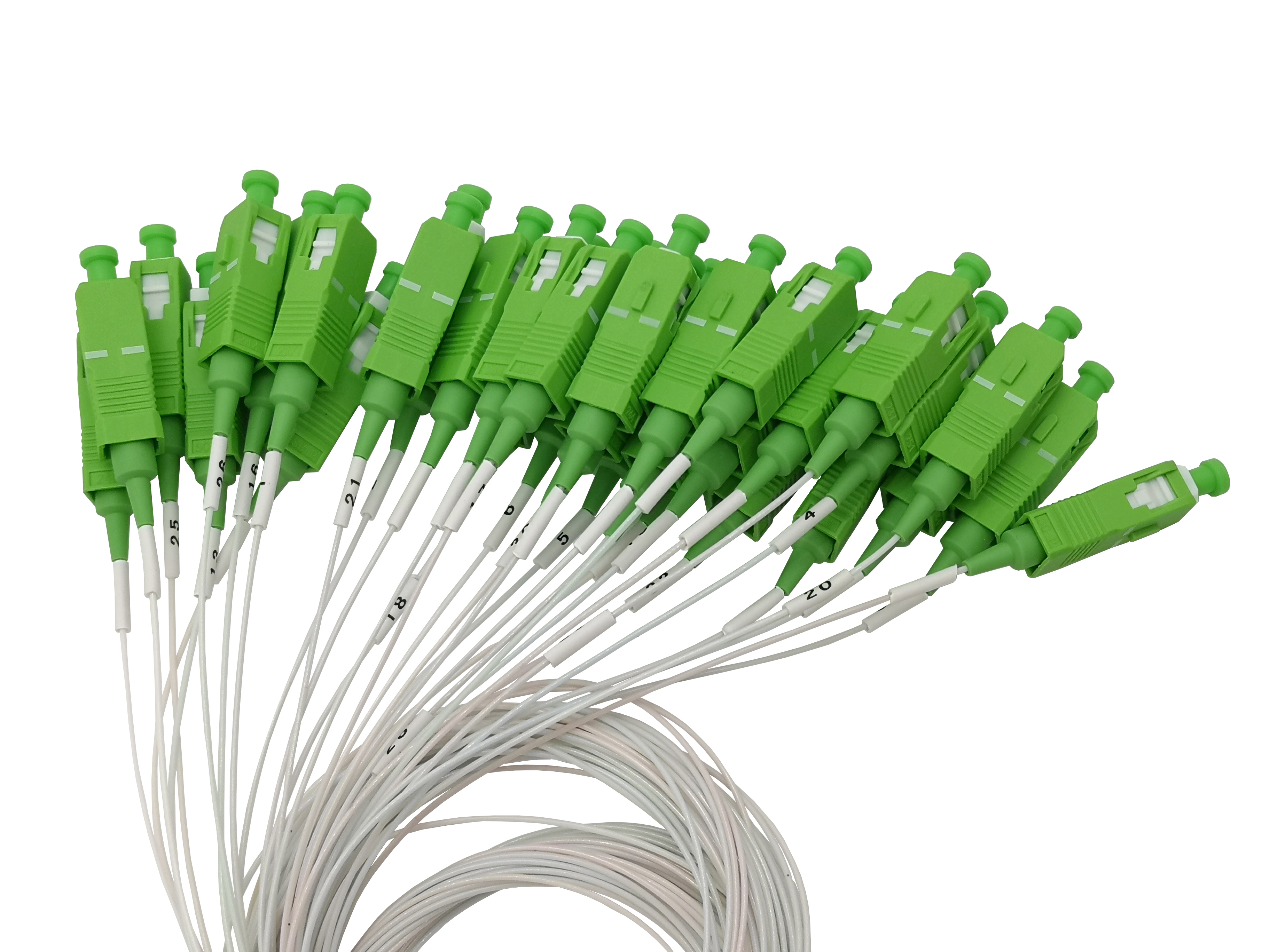

1/32 Fiber PLC Splitter Cable color can be white color or colored cable.input white, output:white,black,red,green,blue,purple,yellow,orange,...etc,
If you choose white cable, it will have number tubes for output, better for the remake when install.

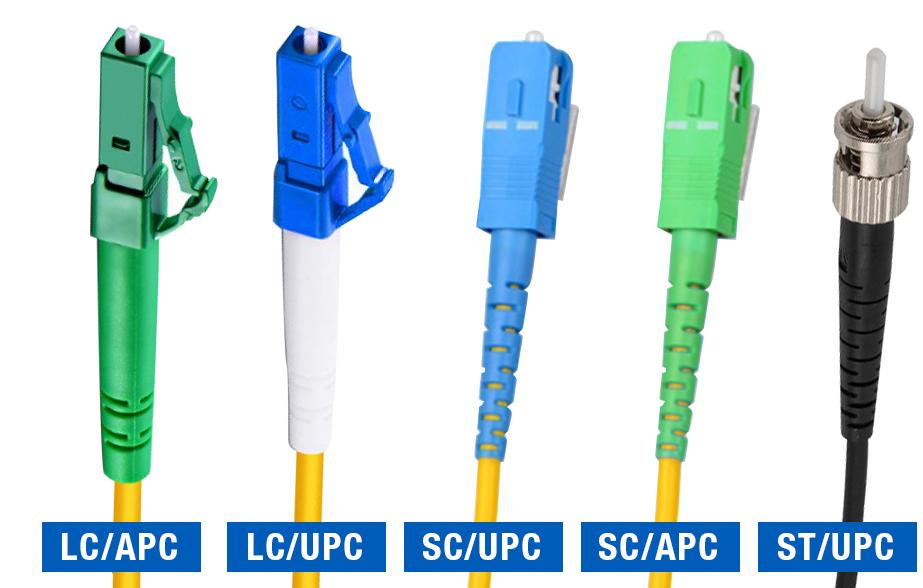

Support LC/APC, LC/UPC, SC/UPC, SC/APC, ST/UPC...More Connector are optional.
PLC SPLITTER CAN USED IN BELOW TERMINAL BOX
32 ports Fiber splitter box 32 Cores LGX splitter module box 19" Patch Panel Rack Mount
Order information
| Type | Package size | Port | Fiber Type | Input/output | Fiber length | connector |
| PLCS | BF=bare fiber FO=fan-out MD=module MB=metal box | 01X02 01x04 01x08 …… 02x16 02x32 02x64 | 0=G652D 1=G657A C=Customize | 1=bare fiber 2=900µm tight buffered 3=2.0mm Loose tube 4=3.0mm Loose tube | 1=1m 2=1.5m C=Customize | 0=no connector |
|
