Punching Cladding 4ft X 8ft Expanded Steel Mesh

Flattened Expanded Metal Sheet Diamond Steel Mesh Sheet For Cladding 4ft X 8ft


Product Description of Expanded Metal Sheet


Expanded metal mesh refers to the metal plate after the special machinery (steel plate mesh punching machine) after processing, to form the material conditions for the mesh.
Expanded metal mesh Material: low carbon steel, stainless steel, aluminum plate, brass plate .
Expanded metal mesh shape: diamond , square, round , trianglescale,etc, we can produce it according to the customers' drawing to punching and pulling.
Expanded metal mesh Pattern: , Standard - raised surface, more rigid
Features: It has well erosion-resisting and rustproof properties.


Specification of Expanded Metal Sheet
L.W.M.
S.W.M.
Strand Width
Strand Gauge
Approx. Kg/M2
6.05
3.38
0.8
0.5
2.1
10.24
5.84
0.8
0.5
1.2
10.24
5.84
1.2
0.9
3.2
14.27
5.84
1.2
0.9
3.2
19.05
7.42
1.2
0.9
3.4
5.8
3.5
0.8
0.6
2.1
19
7.4
1.7
1.0
3.4
30.5
11.7
2.4
1.6
4.9
30.5
11.7
2.4
1.2
3.8
38
16.5
2.2
1.6
3.4
50.8
22.5
2.5
2.5
4.4
50.8
22.5
3
1.6
3.4
50.8
22.5
3.9
3
8.1
50.8
22.5
3.1
3
6.5
76.2
33.9
3.5
3
4.9
85.7
40.6
3.2
3
3.7
101.6
50.8
5
3
4.7
101.6
50.8
3.4
3
3.1
114.3
39.3
4.6
3
5.4
200
75
6.3
3
3.6

Features of Expanded Metal Mesh


1.Continuity--the mesh is formed from a single piece of metal.

2.Environment friendly--no wasteful of material.

3.High strength--higher strength to weight ration then metal sheet.

4.Adherence--anti slip surface.

5.Good rigidity--premium reinforcement properties.

6.Good conductivity--highly efficient conductor.

7.Good resistance to corrosion.


Product Details of Expanded Metal Sheet


Product nameExpanded metal
Material

Stainless steel,thin low carbon steel,brass plate,

Aluminum plate,titanium plate,nickel plate,Al-Mg alloy plate.

Thickness0.3-10.0mm
Hole shapeDiamond,square hole,scale hole,gothic etc.
Mesh size1220*2440mm,1200*2400mm,1000*2000mm or customized
Surface treatment

1.PVC coated

2.Powder coated

3.Anodized

4.Paint

5.Fluorocarbon spraying

6.Polishing


Application of Expanded Metal Sheet

  • Protective cover
  • Metal fence
  • Metal grille
  • Walkway
  • Building Facades
  • Supermarket shelves
  • Bicycle basket
  • Trailer floor and sides

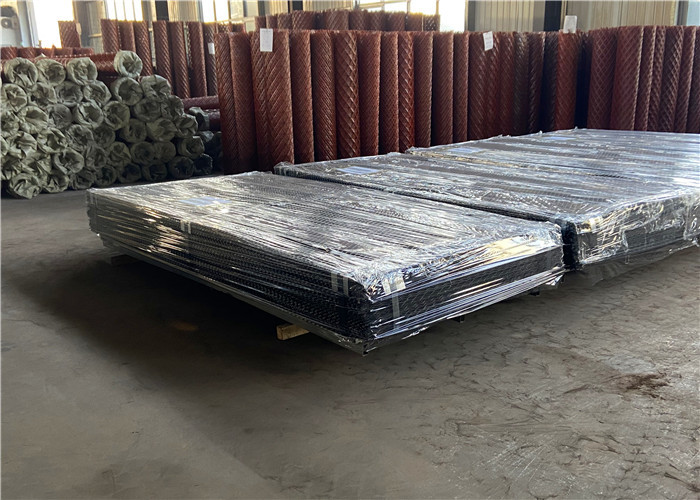

Package of Expanded Metal Sheet


1. On pallet with waterproof cloth,the biggest width is 1500mm

2. In wooden case with waterproof paper

3. In carton box

4. In roll with woven bag,the biggest width is 3000mm

5. In bulk or In bundle
