Hot Dip Galvanized Low Carbon Steel Expanded Metal Metal Stretched Mesh
Expanded Metal Sheet Description
Expanded metal mesh material are carbon steel plate, stainless steel, galvanized steel, aluminum, aluminum foil, lead, nickel plate, titanium, aluminum-magnesium alloy panels. Conventional mesh is formed in a diamond pattern. It has other pattern of hexagonal, round, triangle, scale-like opening.
Expanded metal mesh is also called pulled plate wire mesh. A rigid piece of metal that has been slit and drawn into an open mesh pattern in a single operation. It is stronger, lighter in weight and more rigid than the original base metal.
Expanded Metal Sheet Introduction
| material | Low carbon steel ,Stainless steel plate,Aluminium plate,Al-Ma alloy plate,Copper plate,Nickel plate |
| Surface treatment | PVC coated or sprayed,Hot dipped galvanized ,Electro galvanized ,lacquer painting |
| Hole Shape | diamond ,hexangular, as request |
| Aperture | as you needed |
| Wire Gauge | min 0.8mm |
| mesh of width | max 3m |
EXPANDED MESH | ||||
| Thickness(mm) | SWD(mm) | LWD(mm) | Wire stems width(mm) | Width & Length |
| 0.5 | 2.5 | 4.5 | 0.5 | Width: 0.5m-2.0m Length: 30m, 50m Other sizes can be made as request |
| 0.5 | 10 | 25 | 0.5 | |
| 0.6 | 10 | 25 | 1 | |
| 0.8 | 10 | 25 | 1 | |
| 1 | 10 | 25 | 1.1 | |
| 1 | 15 | 40 | 1.5 | |
| 1.2 | 10 | 25 | 1.1 | |
| 1.2 | 15 | 40 | 1.5 | |
| 1.5 | 15 | 40 | 1.5 | |
| 1.5 | 23 | 60 | 2.6 | |
| 2 | 18 | 50 | 2.1 | |
| 2 | 22 | 60 | 2.6 | |
| 3 | 40 | 80 | 3.8 | |
| 4 | 50 | 100 | 4 | |
| 4 | 60 | 120 | 4 | |
| 4 | 80 | 180 | 4 | |
| 4 | 100 | 200 | 4 | |
| 4.5 | 50 | 100 | 5 | |
| 5 | 50 | 100 | 5 | |
| 5 | 75 | 150 | 5 | |
| 6 | 50 | 100 | 6 | |
| 8 | 50 | 100 | 8 | |
Expanded Metal Sheet Feature
1. Strong and sturdy
It has the advantages of firmness and durability.
2. High Visibility
It has high visibility and high ety.
3. Shock resistance
It has strong hole shape to resist shake and break.
Small, medium and heavy expanded metal mesh. Expanded aluminum
mesh, expanded platinum filtration mesh, expanded brass mesh,
expanded copper mesh, expanded stainless steel mesh, expanded
nickel mesh. Opening in the shape of diamond, hexagonal or special
shape.
Expanded Metal Sheet Application
Expanded metal steel series, hole strong and long service life, use a wide range, mainly used in civil engineering batch of cement,machinery and equipment protection, handicraft manufacturing, high-end speaker net enclosures. Highway guardrail, sports venues fence, the road green belt protection net. Network can be used for heavy-duty steel foot tanker net, heavy machinery and boilers,oil wells. Locomotive, million tons of ships working platforms, escalators, walkways. Also can be used for construction, roads, bridges reinforced with also application and defense industry, railway, highway, shipbuilding, coal, textile, building materials,agricultural and sideline, aquaculture, gardens, minerals, petrochemicals, household appliances, also applies to integrated ceiling, anti-theft doors and windows, e passage corridor stairs baffle, tables and chairs, vents, all carrying cargo boxes, shelves and so on. Nowadays, most suitable for use on the railway fence material is steel net!

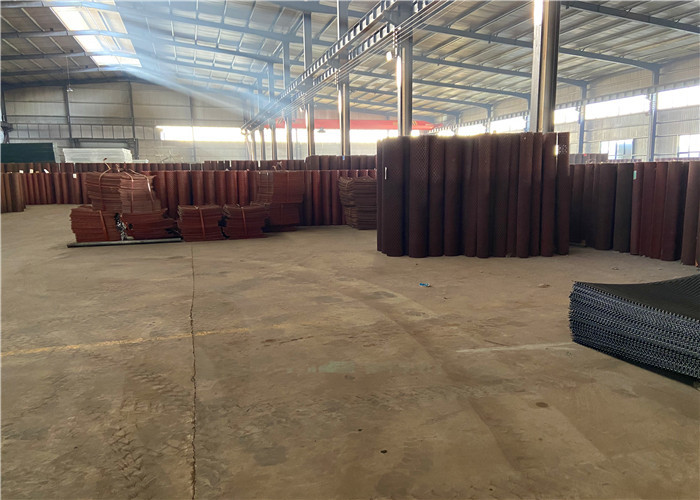

Expanded Metal Sheet Warehouse
|
