Pvc Coated Decorative Screen Cladding Expanded Metal Wire Mesh Flattened 0.3mm

Categories Expanded Metal Wire Mesh
Brand Name: YuanHai
Model Number: YH-06
Certification: ISO9001:2015
Place of Origin: Hebei Province,China
MOQ: 50 Square Meters
Price: US$4~20
Payment Terms: T/T
Supply Ability: 100000 Square Meters per Week
Delivery Time: 3-8 days
Packaging Details: palletized or loose load in the container
Material: black sheet/stainless steel/ aluminium
Hole Shape: Diamond / Hexagonal
LWD: 25mm-100mm
SWD: 10mm-50mm
Weight: 0.7kg-30kg/㎡
Thickness: 0.3mm-8mm
Process: Cutting, Punching
Surface Treatment: Hot Dipped Galvanized, powder coated
Product Name: Expanded Aluminium/ Stainless Steel Sheet
Usage: Construction,building facade,guard, filter net
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Pvc Coated Decorative Screen Cladding Expanded Metal Wire Mesh Flattened 0.3mm

PVC Coated Decorative Screen Expanded Diamond Mesh Metal For Cladding


Product Description of Expanded Metal Sheet


Expanded metal sheets are created by slitting and cold-forming metal as it expands in a press. This process creates diamond-shaped openings that are nominally measured the long way of the diamond (LWD) and the short way of the diamond (SWD). Raised, or standard, expanded sheets offer a skid-resistant surface and a high strength-to-weight ratio. Flat expanded sheets have been rolled for a smooth, level surface. Expanded metal sheets are measured by the percentage of open area, which is the ratio of open space to total space in a given area. A sheet with a larger percentage of open area contains less material than one with a smaller percentage.


Specification of Expanded Metal Sheet
Specification of expanded metal sheet
ItemStrandDesign sizesOpening sizes

Open area

(%)

Thickness

(Inch)

Width

(Inch)

LWD

(Inch)

SWD

(Inch)

LWO

(Inch)

SWO

(Inch)

010.1340.1502.000.9231.5620.67567
020.0920.1442.000.9231.6250.71869
030.0900.0962.000.9231.6880.7679
040.0600.1012.000.9231.750.78378
050.0900.0961.200.5000.9380.33762
060.0600.0871.200.5000.9380.37265
070.0480.0881.200.5000.9380.38265
080.0360.0721.000.5000.7180.40771
090.0480.0721.000.2500.7180.14642
100.0360.0721.000.2500.7180.15742

Features of Expanded Metal Mesh


1)Strong and durable, with Elegant appearance

2)Easy maintenance, high visibility.

3)Antioxidant and corrosion resistant, long lifetime.

4)Convenient installation, and not easy to be damaged.

5)Environmental protection product, can be recycled.


Application of Expanded Metal Sheet


1. Expanded metal wire mesh could be civil engineering, building walls, crafts manufacturing, ships, highways, railways, bridges, boilers and other platforms, pedals, and can also be used as reinforcements for cement and light construction materials.

2. Heat dissipation hoods and mechanical transmission protective covers for various vehicles, air compressors, etc., high-end audio speaker mesh covers, filters, air-conditioning equipment, outdoor furniture, mechanical equipment protection, highway guardrails, railway guardrails, building decoration, platform walkways Non-slip etc.

3. Fences for sports venues. Road green belt protection net, municipal engineering protection net.

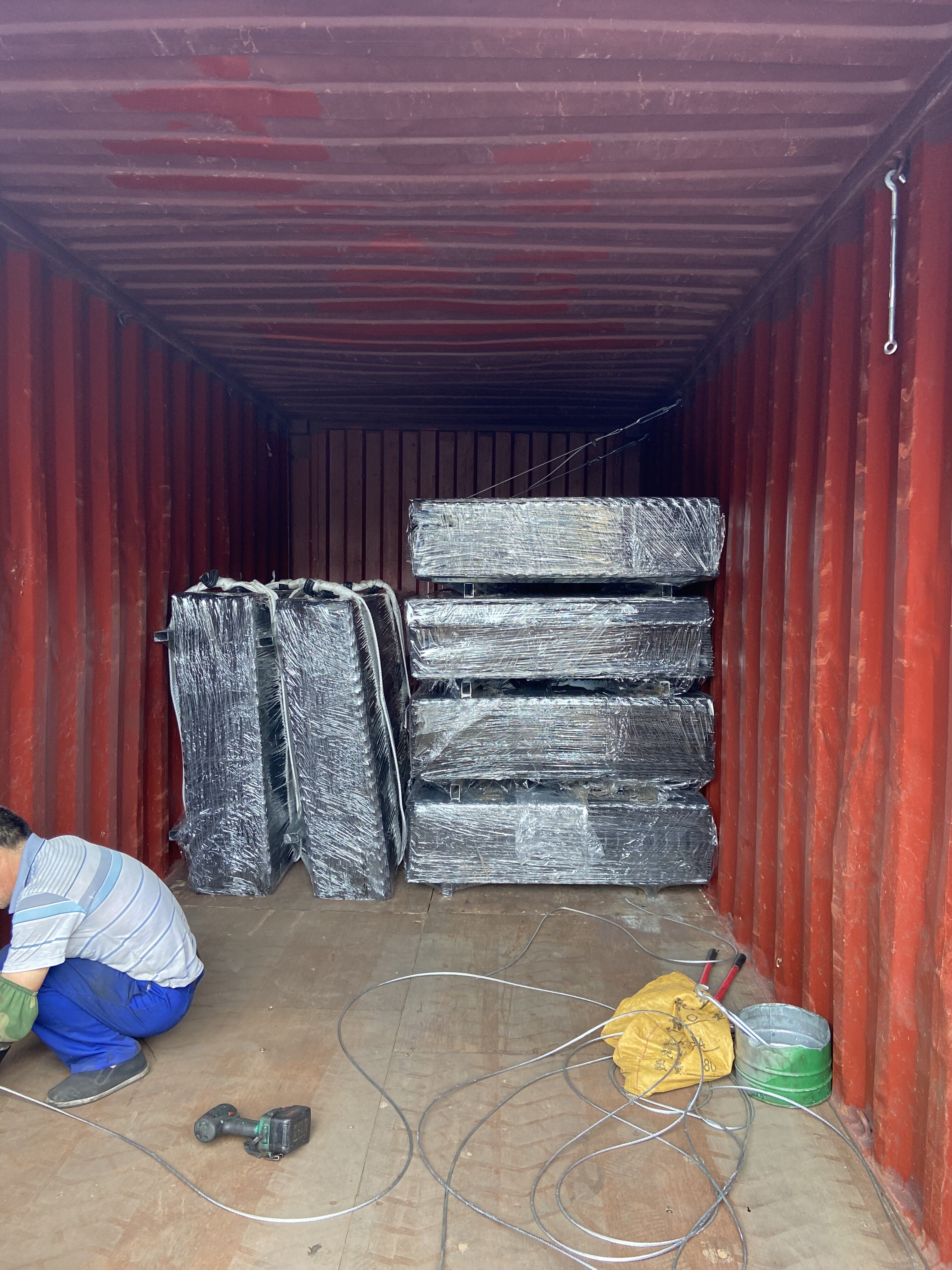

Package of Expanded Metal Sheet


1. On pallet with waterproof cloth,the biggest width is 1500mm

2. In wooden case with waterproof paper

3. In carton box

4. In roll with woven bag,the biggest width is 3000mm

5. In bulk or In bundle
