| Categories | Stainless Steel Flanges |
|---|---|
| Brand Name: | Yuhao |
| Model Number: | Slip On Flange |
| Certification: | ISO, API, BV, CE ... |
| Place of Origin: | China |
| MOQ: | 100KGS |
| Price: | Negotation |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 2000tons/per month |
| Delivery Time: | 2-10 work days |
| Packaging Details: | They are usually packed in conventional export wooden cases. |
| Material: | 304, 304L, 306, 306L, 316, 316L |
| Application: | Connection, Decoration, oil and gas, Automative |
| Standard: | ASTM, AISI, GB, JIS |
| Shape: | Raising face, Flat face, Tongue face, Groove face... |
| Package: | Standard Seaworthy Packagel, wooden cases... |
| Connection: | Welding |
| Pressure: | PN6 to PN400 |
| Type: | Pipe Fitting |
| Company Info. |
| Zhejiang Yuhao Stainless Steel Co., Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |

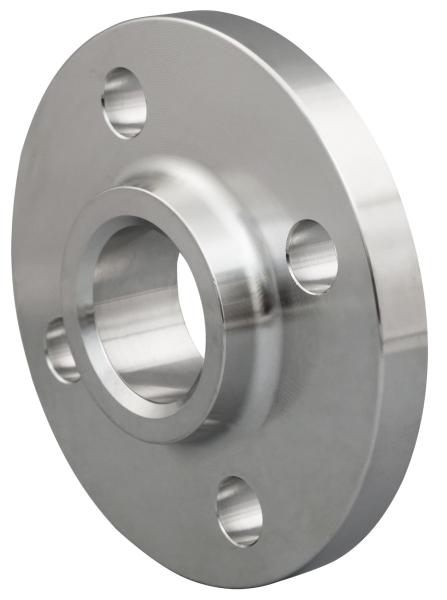

DIN Slip On Flange Stainless Steel Flanges 304 ISO, API, BV, CE
►Product Description
Slip-On Plate Flanges are designed for easy welding and installation, available in materials like 304, 316 stainless steel, and carbon steel. These flat, plain flanges are ideal for low-pressure applications, ensuring a secure connection in piping systems. Compliant with ISO and API standards, they offer durability, corrosion resistance, and reliable performance in various industrial environments.
►Product Size
| DN | Pipe OD | Connection Size | Flange Thickness(mm) C | Flagne ID | |||
| A | B | Flange OD | Bolt Hole Circle Diameter | A | B | ||
| 10 | 17.2 | 14 | 90 | 60 | 14 | 18 | 15 |
| 15 | 21.3 | 18 | 95 | 65 | 14 | 22.5 | 19 |
| 20 | 26.9 | 25 | 105 | 75 | 16 | 27.5 | 26 |
| 25 | 33.7 | 32 | 115 | 85 | 16 | 34.5 | 33 |
| 32 | 42.4 | 38 | 140 | 100 | 18 | 43.5 | 39 |
| 40 | 48.3 | 45 | 150 | 110 | 18 | 49.5 | 46 |
| 50 | 60.3 | 57 | 165 | 125 | 19 | 61.5 | 59 |
| 65 | 76.1 | 76 | 185 | 145 | 20 | 77.5 | 78 |
| 80 | 88.9 | 89 | 200 | 160 | 20 | 90.5 | 91 |
| 100 | 114.3 | 108 | 220 | 180 | 22 | 116 | 110 |
| 125 | 139.7 | 133 | 250 | 210 | 22 | 143.5 | 135 |
| 150 | 168.3 | 159 | 285 | 240 | 24 | 170.5 | 161 |
| 200 | 219.1 | 219 | 340 | 295 | 24 | 221.5 | 222 |
| 250 | 273 | 273 | 395 | 350 | 26 | 276.5 | 276 |
| 300 | 323.9 | 325 | 445 | 400 | 26 | 328 | 328 |
| 350 | 355.6 | 377 | 505 | 460 | 28 | 360 | 381 |
| 400 | 406.4 | 426 | 565 | 515 | 32 | 411 | 430 |
| 450 | 457 | 480 | 615 | 565 | 36 | 462 | 485 |
| 500 | 508 | 530 | 670 | 620 | 38 | 513.5 | 535 |
| 600 | 610 | 630 | 780 | 725 | 42 | 616.5 | 636 |
►Shot Shoot
►FAQ
Q1: How is the quality about the products?
A: Quality is priority. We pay much attention to the quality check. Every product will be fully assembled and carefully tested before it's packed for shipment.
Q2.Can you supply what's the service?
A: We can supply the kinds of matel raw materies and products,such as pipes,pipe fittings,flanges,coil,sheet,round bar and so on...
Q3: What is your minimum order quantity?
A: The MOQ for each product is different, so it would be recommended to refer to the detail page of the product you are interested in. If you need further clarification, send me the product link, and I will reply as soon as possible.
Q4: Do you provide samples ? Is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q5: How long is your production lead time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
|
