| Categories | Stainless Steel Flanges |
|---|---|
| Brand Name: | YUHAO |
| Model Number: | flanges |
| Certification: | ISO, API, BV, CE, CO ... |
| Place of Origin: | China |
| MOQ: | 100KGS |
| Price: | Negotation |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram |
| Supply Ability: | 2000tons/per month |
| Delivery Time: | 2-10 work days |
| Packaging Details: | They are usually packed in conventional export wooden cases. |
| Material: | 306, 304, 316, 306L, 304L, 316L |
| Application: | Connection, Decoration, oil and gas, Automative, Shipbuilding, Construction, Petrochemical, Chemical, New Energy |
| Standard: | ASTM, ANSI, GB, JIS, DIN, AISI |
| Shape: | Raising face, Flat face, Tongue face |
| Package: | Standard Seaworthy Packagel, wooden cases... |
| Connection: | Welding |
| Pressure: | Class150/300/600/9001500/2500 |
| Type: | Pipe Fitting |
| Company Info. |
| Zhejiang Yuhao Stainless Steel Co., Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |

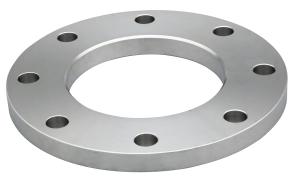

ANSI Flat Face Stainless Steel Flanges SS Plate Flanges 12 inch
►Product Description
Raising Face, Flat Face, and Tongue Face Plate Flanges are available in 304, 306, and 316 stainless steel, offering versatility for various piping connections. These flat, plain welding flanges are designed for easy installation and reliable performance in industrial applications. Suitable for high and low-pressure systems, they provide excellent corrosion resistance and durability. Compliant with international standards, they are ideal for chemical, oil, gas, and water industries, ensuring secure and efficient sealing.
►Product Size
| DN | Pipe OD | Connection Size | Flange Thickness(mm) C | Flagne ID | |||
| A | B | Flange OD | Bolt Hole Circle Diameter | A | B | ||
| 10 | 17.2 | 14 | 90 | 60 | 14 | 18 | 15 |
| 15 | 21.3 | 18 | 95 | 65 | 14 | 22.5 | 19 |
| 20 | 26.9 | 25 | 105 | 75 | 16 | 27.5 | 26 |
| 25 | 33.7 | 32 | 115 | 85 | 16 | 34.5 | 33 |
| 32 | 42.4 | 38 | 140 | 100 | 18 | 43.5 | 39 |
| 40 | 48.3 | 45 | 150 | 110 | 18 | 49.5 | 46 |
| 50 | 60.3 | 57 | 165 | 125 | 19 | 61.5 | 59 |
| 65 | 76.1 | 76 | 185 | 145 | 20 | 77.5 | 78 |
| 80 | 88.9 | 89 | 200 | 160 | 20 | 90.5 | 91 |
| 100 | 114.3 | 108 | 220 | 180 | 22 | 116 | 110 |
| 125 | 139.7 | 133 | 250 | 210 | 22 | 143.5 | 135 |
| 150 | 168.3 | 159 | 285 | 240 | 24 | 170.5 | 161 |
| 200 | 219.1 | 219 | 340 | 295 | 24 | 221.5 | 222 |
| 250 | 273 | 273 | 395 | 350 | 26 | 276.5 | 276 |
| 300 | 323.9 | 325 | 445 | 400 | 26 | 328 | 328 |
| 350 | 355.6 | 377 | 505 | 460 | 28 | 360 | 381 |
| 400 | 406.4 | 426 | 565 | 515 | 32 | 411 | 430 |
| 450 | 457 | 480 | 615 | 565 | 36 | 462 | 485 |
| 500 | 508 | 530 | 670 | 620 | 38 | 513.5 | 535 |
| 600 | 610 | 630 | 780 | 725 | 42 | 616.5 | 636 |

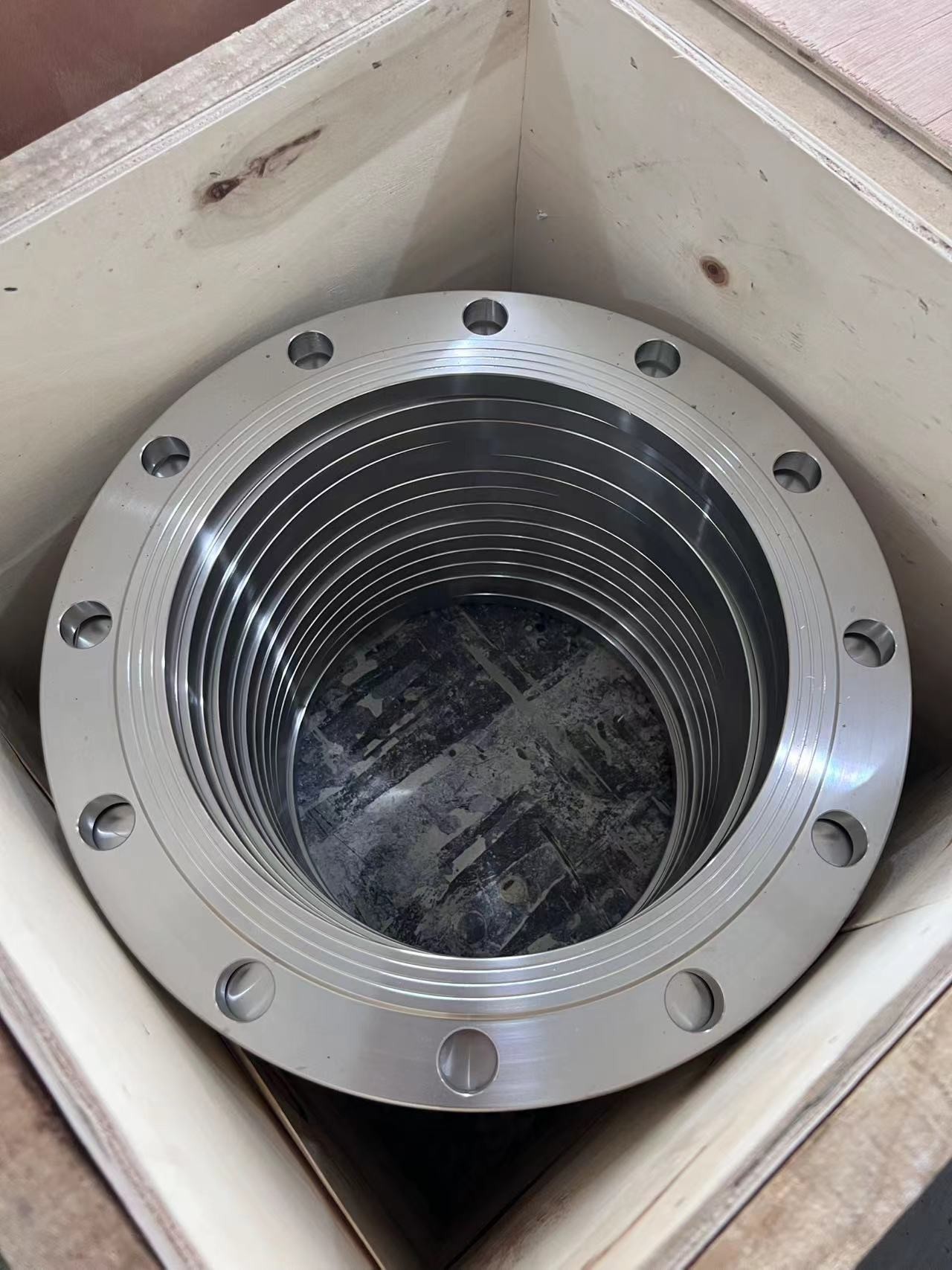

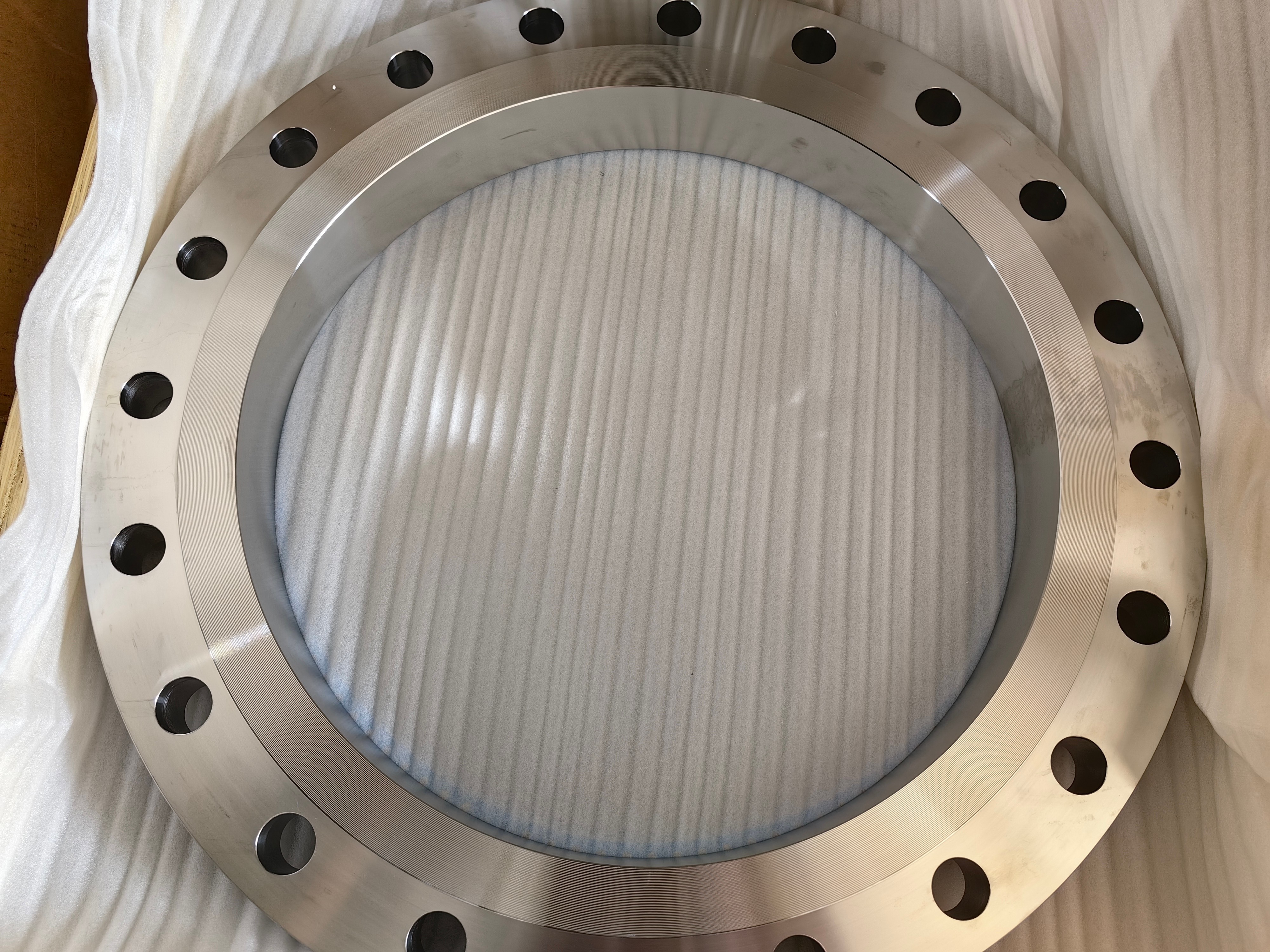

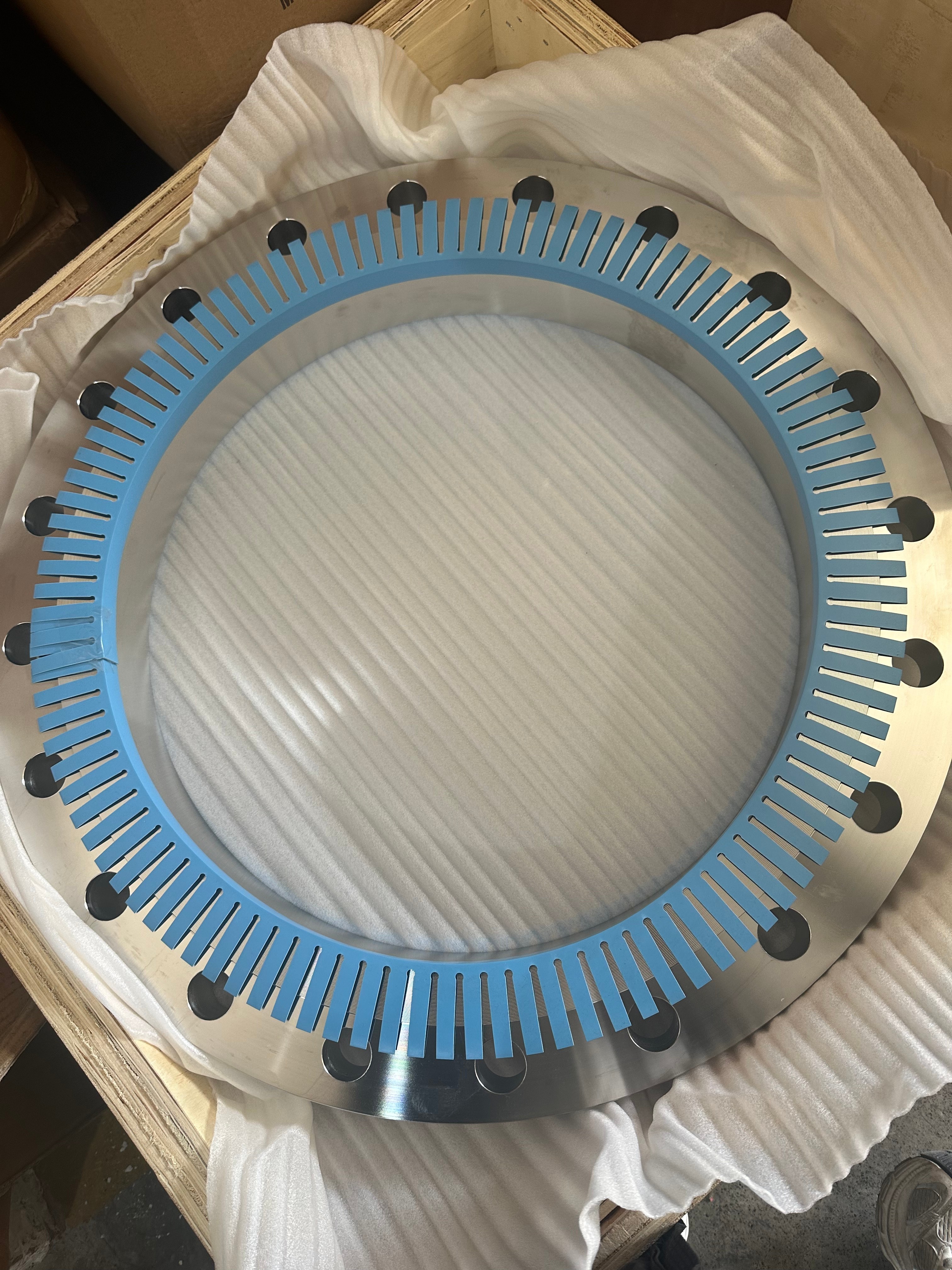

►Shot Shoot
►FAQ
Q1: What is your minimum order quantity?
A: The MOQ for each product is different, so it would be recommended to refer to the detail page of the product you are interested in. If you need further clarification, send me the product link, and I will reply as soon as possible.
Q2: Can you supply what's the service?
A: We can supply the kinds of matel raw materies and products,such as pipes,pipe fittings,flanges,coil,sheet,round bar and so on...
Q3: What about your delivery time if we placed order?
A: We have large of ready stock,in general we can delivery within 2-10days.
Q4: Do you provide samples ? Is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q5: How long is your production lead time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
|
