| Categories | Stainless Steel Flanges |
|---|---|
| Brand Name: | YUHAO |
| Model Number: | flanges |
| Certification: | ISO, API, BV, CE, CO ... |
| Place of Origin: | China |
| MOQ: | 100KGS |
| Price: | Negotation |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 2000tons/per month |
| Delivery Time: | 2-10 work days |
| Packaging Details: | They are usually packed in conventional export wooden cases. |
| Material: | 306, 304, 316 |
| Application: | Connection, Decoration, oil and gas, Automative, Shipbuilding, Construction, Petrochemical, Chemical, New Energy |
| Standard: | ASTM, ANSI, GB, JIS, DIN, AISI |
| Shape: | Raising face, Flat face, Tongue face |
| Package: | Standard Seaworthy Packagel, wooden cases... |
| Connection: | Welding |
| Pressure: | Class150/300/600/9001500/2500 |
| Type: | Pipe Fitting |
| Company Info. |
| Zhejiang Yuhao Stainless Steel Co., Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |

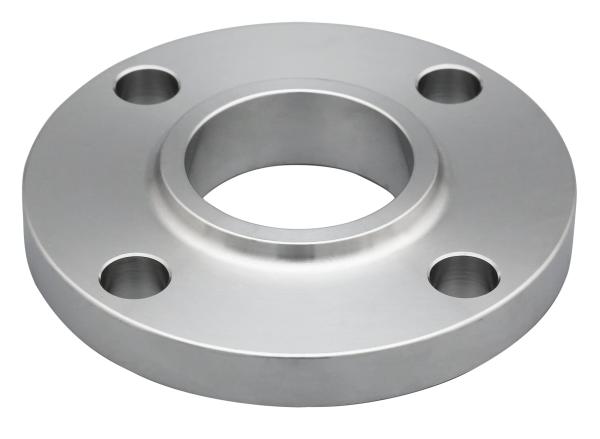

Customize ANSI DIN JIS Stainless Steel 304 316 Slip on Flange
►Product Description
Customizable ANSI, DIN, and JIS Stainless Steel Slip-On Flanges in 304 and 316 grades are designed to meet specific project requirements. These flanges offer excellent corrosion resistance, durability, and easy installation, making them ideal for high-performance piping systems. Suitable for industrial applications in chemical, oil, gas, and water industries, they ensure reliable sealing and compatibility with international standards. Custom dimensions and specifications are available to suit diverse needs.
►Product Size
| DN | Pipe OD | Connection Size | Flange Thickness(mm) C | Flagne ID | |||
| A | B | Flange OD | Bolt Hole Circle Diameter | A | B | ||
| 10 | 17.2 | 14 | 90 | 60 | 14 | 18 | 15 |
| 15 | 21.3 | 18 | 95 | 65 | 14 | 22.5 | 19 |
| 20 | 26.9 | 25 | 105 | 75 | 16 | 27.5 | 26 |
| 25 | 33.7 | 32 | 115 | 85 | 16 | 34.5 | 33 |
| 32 | 42.4 | 38 | 140 | 100 | 18 | 43.5 | 39 |
| 40 | 48.3 | 45 | 150 | 110 | 18 | 49.5 | 46 |
| 50 | 60.3 | 57 | 165 | 125 | 19 | 61.5 | 59 |
| 65 | 76.1 | 76 | 185 | 145 | 20 | 77.5 | 78 |
| 80 | 88.9 | 89 | 200 | 160 | 20 | 90.5 | 91 |
| 100 | 114.3 | 108 | 220 | 180 | 22 | 116 | 110 |
| 125 | 139.7 | 133 | 250 | 210 | 22 | 143.5 | 135 |
| 150 | 168.3 | 159 | 285 | 240 | 24 | 170.5 | 161 |
| 200 | 219.1 | 219 | 340 | 295 | 24 | 221.5 | 222 |
| 250 | 273 | 273 | 395 | 350 | 26 | 276.5 | 276 |
| 300 | 323.9 | 325 | 445 | 400 | 26 | 328 | 328 |
| 350 | 355.6 | 377 | 505 | 460 | 28 | 360 | 381 |
| 400 | 406.4 | 426 | 565 | 515 | 32 | 411 | 430 |
| 450 | 457 | 480 | 615 | 565 | 36 | 462 | 485 |
| 500 | 508 | 530 | 670 | 620 | 38 | 513.5 | 535 |
| 600 | 610 | 630 | 780 | 725 | 42 | 616.5 | 636 |
►Shot Shoot
►FAQ
Q1: How is the quality?
A: Quality is priority. We pay much attention to the quality check. Every product will be fully assembled and carefully tested before it's packed for shipment.
Q2: Can you provide the free samples?
A: We can supply the free samples but the sample express freight need paid by yourside.
Q3: Can I customize products?
A: Yes. Let me know the specific customization requirements, and I will get back to you as soon as possible.
Q4: Are you manufacturer or trading company?
A: We are not only manufacturer but also a trading company,we have more than 12years export experience.
Q5: How long is your production lead time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
|
