| Categories | Transformers |
|---|---|
| Type: | power transformer |
| Material: | Aluminum, Copper, Ferrite core |
| Frequency: | 1KHZ-500KHZ |
| Shape: | Coil, Rectangle |
| Toplogy: | Boost, Flyback |
| Winding Material: | Copper, Aluminum |
| Place of Origin: | Guangdong, China |
| Brand Name: | Chipsen |
| Model Number: | PQ40 |
| application: | Power Supply |
| Phase: | Single Phase |
| Coil Structure: | TOROIDAL, TOROIDAL |
| Coil Number: | AUTOTRANSFORMER, AUTOTRANSFORMER |
| Input Voltage: | 12v-360v |
| Output Voltage: | 12v-360v |
| Name: | 12v 200kHz 240v converter Transformer EPC 17 19 Series for Lighting |
| Brand: | Chipsen |
| certificates: | ULROHS |
| Efficiency: | more than 98% |
| Application: | Electric meter |
| Working frequency: | 1KHz to 200KHz |
| Warranty: | 5 years |
| Price: | CN¥3.63/pieces 1-4999 pieces |

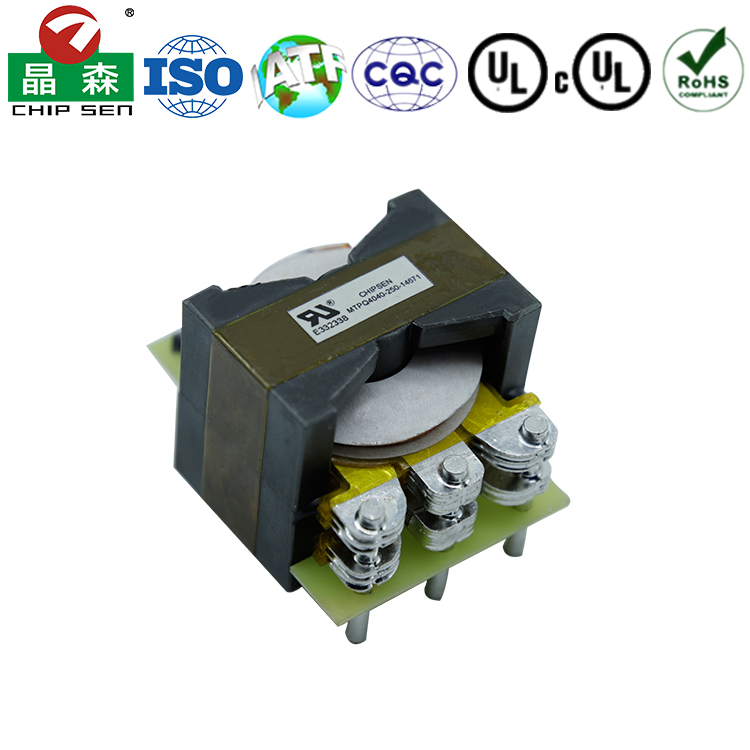

  | Model No. | High frequency transformer PQ40 |
| Working Frequency Range | 1KHz-1MHz | |
| Output Power | 1W-3000W | |
| Output Voltage | 0.5V-15000V | |
| Output Current | 0.01A-100A | |
| Storage Temperature | +5℃ to +95℃ | |
| Working Temperature | -40℃ to +125℃ | |
| Storage Humidity | 30% to 70% | |
| Certifications | ISO9001:2015, ISO14001:2015, IATF16949, UL/cUL, ROHS, REACH, CQC | |
| Designing Information | operating frequency | |
| circuit topology | ||
| input voltage range | ||
| output power (V/A) | ||
| mounting dimensions | ||
| safety requirements | ||
| product application |
How to get samples?
Chipsen Sample Policy
How long the sample can be ready?
Shipping for samples Customer afford freignt cost, we can help customer to use the cheapest way.
|
