| Categories | Transformers |
|---|---|
| Type: | Instrument Transformer, power transformer, distribution transformer, high frequency transformer, ferrite core transformer, Horizontal/Vertical |
| Material: | Copper |
| Frequency: | 1KHZ-500KHZ, 1KHz -500KHz |
| Shape: | ROUND, flat, Coil, Rectangle |
| Toplogy: | FORWARD, BUCK, Boost, Flyback |
| Winding Material: | Copper |
| Place of Origin: | Guangdong, China |
| Brand Name: | Chipsen |
| Model Number: | Chipsen-EC39 |
| application: | High Frequency |
| Phase: | Single Phase |
| Coil Structure: | TOROIDAL |
| Coil Number: | AUTOTRANSFORMER |
| Input Voltage: | 5V-480V, 12v 24v 48v |
| Output Voltage: | 5V-480V, 200V/220V/230V/240V/380V/400V/ 415V/440V/480V/600V/690V |
| Product name: | Single Phase Power Transformer |
| Certification: | UL/ISO9001/ISO14001/RoHS/Reach |
| Application: | High Frequency Applications |
| Core material: | PC44/PC95/PC40 Ferrite Core |
| Winding material: | UL Approved Pure Copper Transformer |
| Operating temperature: | 40 To+180 |
| Price: | CN¥25.37/pieces 1-4999 pieces |

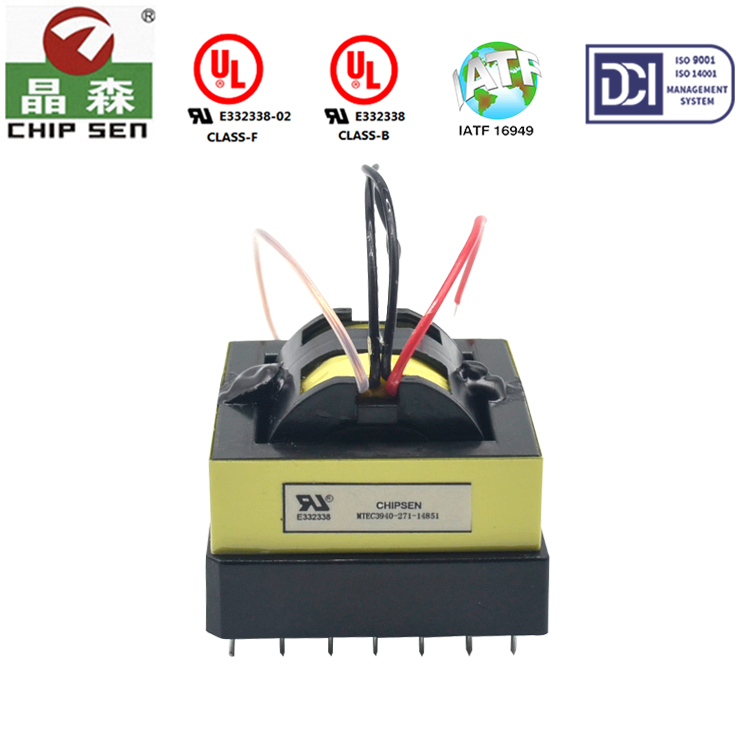

 | Model No. | High frequency transformer EC39 |
| Working Frequency Range | 1KHz-1MHz | |
| Output Power | 1W-3000W | |
| Output Voltage | 0.5V-15000V | |
| Output Current | 0.01A-100A | |
| Storage Temperature | +5℃ to +95℃ | |
| Working Temperature | -40℃ to +125℃ | |
| Storage Humidity | 30% to 70% | |
| Certifications | ISO9001:2015, ISO14001:2015, IATF16949, UL/cUL, ROHS, REACH, CQC | |
| Designing Information | operating frequency | |
| circuit topology | ||
| input voltage range | ||
| output power (V/A) | ||
| mounting dimensions | ||
| safety requirements | ||
| product application |
|
