| Categories | Transformers |
|---|---|
| Type: | power transformer |
| Material: | Copper |
| Frequency: | 50Hz |
| Shape: | ROUND |
| Toplogy: | FORWARD |
| Winding Material: | Copper |
| Place of Origin: | Guangdong, China |
| Brand Name: | Chipsen |
| Model Number: | JYD-TF-ER28 |
| application: | Power |
| Phase: | Single Phase |
| Coil Structure: | TOROIDAL |
| Coil Number: | AUTOTRANSFORMER |
| Input Voltage: | 380V |
| Output Voltage: | 208V, 127V, 9V |
| Product name: | High Voltage Ferrite Transformer |
| Product Model: | RM10 |
| Bobbin Type: | Horizontal/ Vertical/THD/SMD |
| Core Material: | PC40, PC44, PC95 |
| Input/Output Voltage: | Customized |
| Power Rating: | Customized |
| Management Certifications: | ISO9001/ISO14001/IATF16949 |
| UL No.: | E332338 |
| ROHS/REACH: | Complied |
| OEM/ODM: | Welcomed |
| MOQ: | 1000 pieces |
| Price: | CN¥20.66/pieces 1000-2999 pieces |

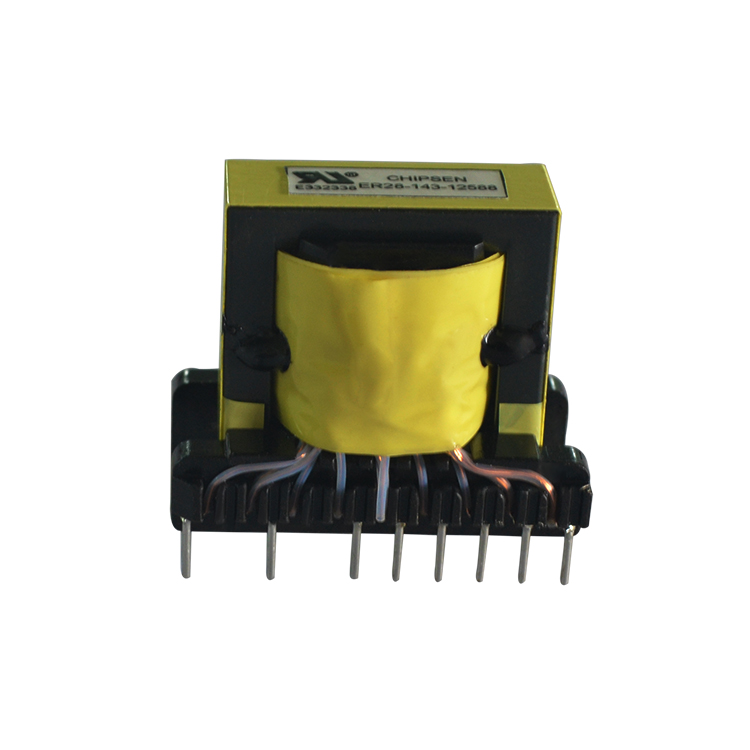

 | Model No. | High frequency transformer ER28 |
| Working Frequency Range | 1KHz-1MHz | |
| Output Power | 1W-3000W | |
| Output Voltage | 0.5V-15000V | |
| Output Current | 0.01A-100A | |
| Storage Temperature | +5℃ to +95℃ | |
| Working Temperature | -40℃ to +125℃ | |
| Storage Humidity | 30% to 70% | |
| Certifications | ISO9001:2015, ISO14001:2015, IATF16949, UL/cUL, ROHS, REACH, CQC | |
| Designing Information | operating frequency | |
| circuit topology | ||
| input voltage range | ||
| output power (V/A) | ||
| mounting dimensions | ||
| safety requirements | ||
| product application |
|
