Name: Enameled Bare Wire Copper Manganese Alloy Manganin Resistance Ribbon
Brand: HUONA
Price: 16 USD

Home > Used Tools >

Enameled Bare Wire Copper Manganese Alloy Manganin Resistance Ribbon

Categories	High Temperature Alloy
Brand Name:	HUONA
Model Number:	6J13
Certification:	ISO9001, RoHS
Place of Origin:	China
MOQ:	1KG
Price:	$16/KG-$19/ KG
Payment Terms:	T/T
Supply Ability:	100 Ton/Month
Delivery Time:	Around a week
Packaging Details:	Spool, Carton, Wooden Case
Product name:	Copper-Manganese Alloy
Product grade:	6j13
Product composition:	Copper-Manganese
Product type:	Wire/ Ribbon
Quality:	High quality
Diameter:	0.02-10.0mm

Contact Now

Add to Cart

Company Info.

Huona (Shanghai) New Material Co., Ltd.

Verified Supplier

View Contact Details

Product List

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Product Details
Company Profile

Enameled Bare Wire Copper Manganese Alloy Manganin Resistance Ribbon

Basic Info.

Model NO.

6J13

Shape

Coil

Surface

Birght

Width

200mm

Thickness

0.1-3.0mm

Diameter

0.02-10.0mm

Density

8.4G/Cm3

Resistivity

0.44

Type

Copper Wire

Application

Water Heater, Air Condition or Refrigerator

Alloy

Standard

GB/T

Transport Package

Wooden Case

Specification

0.02-10.0mm

Trademark

Huona

Origin

China

HS Code

7506220000

Production Capacity

1500ton/Year

Product Description

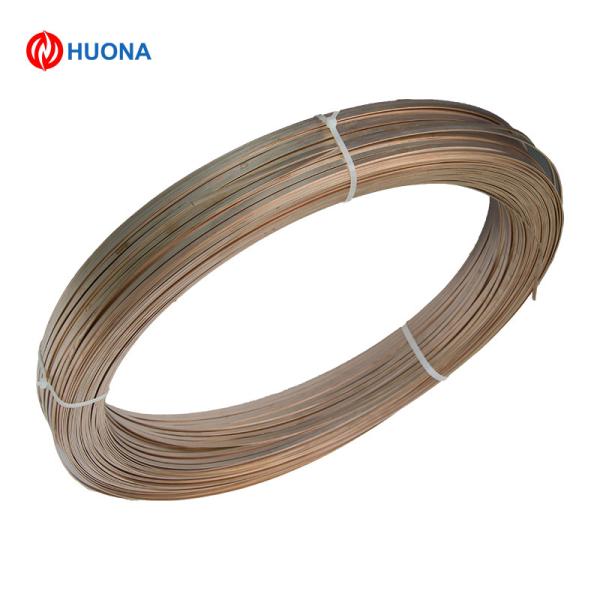

Enameled Bare Wire Copper-Manganese Alloy Manganin Resistance ribbon / flat Wire

Product Description

Shunt Manganin widely used for Shunt resistor with the highest requirements, shunt manganin has been used in precision built electrical components such as Wheatstone bridges, decade boxes, voltage drivers, potentiometers and resistance standards.

Chemical Content, %

Ni	Mn	Fe	Si	Cu	Other	ROHS Directive
						Cd	Pb	Hg	Cr
2~5	11~13	<0.5	micro	Bal	-	ND	ND	ND	ND

Mechanical Properties

Max Continuous Service Temp	0-100ºC
Resisivity at 20ºC	0.44±0.04ohm mm2/m
Density	8.4 g/cm3
Thermal Conductivity	40 KJ/m·h·ºC
Temp Coefficient of Resistance at 20 ºC	0~40α×10-6/ºC
Melting Point	1450ºC
Tensile Strength(Hard)	585 Mpa(min)
Tensile Strength,N/mm2 Annealed,Soft	390-535
Elongation	6~15%
EMF vs Cu, μV/ºC (0~100ºC)	2(max)
Micrographic Structure	austenite
Magnetic Property	non
Hardness	200-260HB
Micrographic Structure	Ferrite
Magnetic Property	Magnetic
