Wall Mounted Open Channel Water Flow Meter , Partially Filled Pipe Flow Meter

Categories Area Velocity Flow Meter
Brand Name: Lanry
Model Number: DF6100-EC
Certification: ISO9000, CE, CPA,CMC
Place of Origin: China
MOQ: 1 Unit
Price: Negotiable
Payment Terms: T/T
Supply Ability: 1000pcs/month
Delivery Time: 7-10 working days
Packaging Details: carton packing 44X33X22cm 1PC/carton
Measure principle: Velocity: Doppler; Level: ultrasonic
Veolicty range: 0.03 to 4.5m/s
Accuracy: 2%
IP class: IP68
Level Rang: 0-5m
Power supply: VAC, VDC, Solar Power
Output: Data logger, 4-20mA ,RS485, GPRS
Transducer material: Aluminum
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Wall Mounted Open Channel Water Flow Meter , Partially Filled Pipe Flow Meter

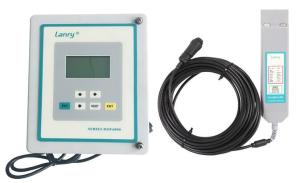

DOF6000 series Flow Meter consists of flow calculator, and the integrated transducer to measure velocity and level at the same time.


The flow calculator can display the velocity, level, flow rate and flow totalizer. It also can be available with 4-20mA, RS232, RS485 (Modbus) /GPRS and SD card logger outputs. It can record data of flow rate and total flow with a SD card up to 16GB.


The flow calculator can calculate the cross-sectional area of partially filled pipe, open channel stream or river, for stream or river, it can input up to 20 coordinate points describing the river’s shape of cross section. It is suitable for various applications.


The Velocity and Level Transducer is a unique combination of water velocity, depth and temperature instruments integrated with a solid state logger. It is a new generation of intelligent flow measurement systems.


Features:

  1. Measure flow in partially filled pipes and open channels.
  2. No flume or weir required.
  3. Display the velocity, level, flow rate and flow totalizer.
  4. 4-20mA, RS485 (Modbus) /GPRS outputs are available.
  5. 16GB SD card data logger can be optional.
  6. 20 coordinate points to describe the river’s shape of cross section.

Specifications:

Calculator:

Enclosure typeWall-mounted
Power Supply:85~265VAC,12~28VDC
Degree of protectionIP66 according to EN60529
Operating temperature-20℃ to +60℃
Enclosure MaterialFiberglass
Outputs:4-20mA, RS485(Modbus), data logger, GPRS (optional)
Size244L×196W×114H (mm)
Weight2.4kg
Data logger16GB
Application rangePipe: 300-6000mm; Channel: 200-6000mm

Sensor:

VelocityRange:21mm/s to 4500mm/s bi-directional
Accuracy:2% of measured velocity
Resolution:1mm/s
DepthRange:0m to 3.0m or 0m to 6.0m
Accuracy:±0.25% of calibrated lower range
ResolutionH2 0-1m at 1mm, 1-2m at 2mm
H5 0-2.5m at 2.5mm, 2.5-5m at 5mm
TemperatureTemperature:-17°C to 60°C
Resolution:0.1°C
FlowComputation:Flow rate, flow totalizer
Channel type:Pipe, open channel, natural stream
GeneralCable:15 meter
Cable Options:User specified up to 100 meters
Material:PVC body, stainless steel mounting plate
Dimensions:290mm x 70mm x 30mm (L x W x H)
Weight:1kg (2kg with 15m cable)
