Ultrasonic Flowmeter for water measure DOF6000-W Area Velocity Flow Meter for irrigation

Categories Area Velocity Flow Meter
Place of Origin: Shanghai, China (Mainland)
Brand Name: Lanry
Model Number: DOF6000-W
Supply Ability: 1000 Unit/Units per Week Anti-Jamming Ultrasonic Flowmeter
Packaging Details: packing: 1unit/carton
MOQ: 1 Unit/Units
Price: US $250-7000/Units
Certification: CE
Product Name: Area Velocity Flow Meter
Accuracy: 2% of measured velocity
Operating temperature: -20℃ to +60℃
Degree of protection: IP66
Port: Shanghai
Size: 244L×196W×114H (mm)
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Ultrasonic Flowmeter for water measure DOF6000-W Area Velocity Flow Meter for irrigation

Ultrasonic Flowmeter for water measure DOF6000-W Area Velocity Flow Meter for irrigation

The Ultrasonic Flowmeter DOF6000 launched by Lanry combines years experience in metering
research and development, adopting state-of-the-art technology and sophisticated production.
It has been proven that DOF6000 is reliable and absolute matured achievement in high accuracy measurement.
DOF6000 series DOF6000 Digital River Water Flow Meter consists of flow calculator, and the
integrated DOF6526 transducer to measure velocity and level at the same time. The flow calculator
can display the velocity, level, flow rate and flow totalizer. The Ultrasonic Flowmeter also can be
available with 4-20mA, RS232, RS485 (Modbus) /GPRS and SD card logger outputs.
Ultrasonic Flowmeter for water measure DOF6000-W Area Velocity Flow Meter for irrigation features:

1. Measure flow in partially filled pipes and open channels.
2. Display the velocity, level, flow rate and flow to talizer.
3. No flume or weir required.
4. 16GBSD card datalogger can be optional.
5. 4-20mA,RS485 (Modbus) /GPRS outputs are available.
6. 20 coordinate points to describe the river’s shape of cross section.

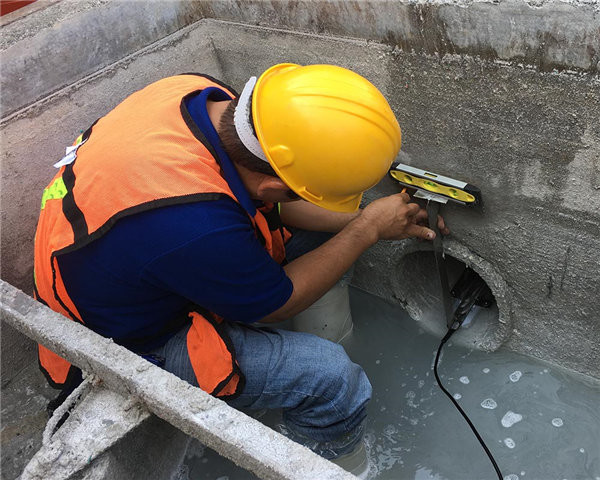

Application
Ultrasonic Flowmeter for water measure DOF6000-W Area Velocity Flow Meter for irrigation Specifications:
Calculator:
Enclosure typeWall-mounted
Power Supply:85~265VAC,12~28VDC
Operating temperature-20℃ to +60℃
Degree of protectionIP66 according to EN60529
Outputs:4-20mA, RS485(Modbus), data logger, GPRS (optional)
Enclosure MaterialFiberglass
Size244L×196W×114H (mm)
Data logger16GB
Weight2.4kg
Application rangePipe: 300-6000mm; Channel: 200-6000mm

Specifications :DOF6526 sensor

DOF6526 sensor:

VelocityRange:21mm/s to 4500mm/s bi-directional
Accuracy:2% of measured velocity
Resolution:1mm/s
DepthRange:0m to 3.0m or 0m to 6.0m
Accuracy:±0.25% of calibrated lower range
ResolutionH2 0-1m at 1mm, 1-2m at 2mm
H5 0-2.5m at 2.5mm, 2.5-5m at 5mm
TemperatureTemperature:-17°C to 60°C
Resolution:0.1°C
FlowChannel type:Pipe, open channel, natural stream
Computation:Flow rate, flow totalizer
GeneralCable Options:User specified up to 100 meters
Cable:15 meter
Material:PVC body, stainless steel mounting plate
Dimensions:290mm x 70mm x 30mm (L x W x H)
Weight:1kg (2kg with 15m cable)

Diamensional Sketches:


Company
Factory Equipment

Packing

Delivery
Standard meter: 3-7 days
Special meter: pls contact us
Express, by air, by sea can be optional.
