10/100BASE 2x8 Stacked RJ45 Modular Jacks Double Decks Lan Socket TM59B828T1X11

Categories RJ45 Female Connector
Brand Name: TM
Model Number: TM59B828T1X11
Certification: UL,Rohs,Reach,ISO9001
Place of Origin: Guangdong of China
MOQ: 1piece
Price: Supportive
Payment Terms: T/T, Western Union, ,Paypal
Supply Ability: 5KK/year
Delivery Time: 20 Days
Packaging Details: Tray in Carton
LENGTH: 28.2 mm
HOUSING MATERIAL: PBT UL94V-0
CONTACT MATING AREA PLATING: GOLD FU'' PLATING
CONNECTOR TYPE: BLACK
LED OPTION: NO
NUMBER OF PORTS: 2X8
NUMBER OF CONTACTS: 8
GROUNDING OPTIONS: Panel Ground and PCB Ground
SHIELD PLATING MATERIAL: NICKEL
SHIELD EMI TABS: YES
SHIELD: YES
ROHS COMPLIANT: YES
PANEL STOP: YES
PCB MOUNT ANGLE: SIDE ENTRY
PACKAGE: DIP
CONNECTOR & CONTACT TERMINAATES TO: Printed Circuit Board
LATCH ORIENTATION: LATCH DOWN
Voltage rating: 125 V
Current rating: 1.5 A
Contact resistance: 30mΩ
Insulation resistance: 500 MΩ MIN @ 500V DC
Dielectric resistance: 1000V AC RMS 50Hz. 1MIN
Durrability: 750 CYCLES MIN
Minimal Order: 1pcs
Package: 5pcs/tray,125pcs/carton
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

10/100BASE 2x8 Stacked RJ45 Modular Jacks Double Decks Lan Socket TM59B828T1X11

10/100BASE 2x8 Stacked RJ45 Modular Jacks double decks lan socket without transformer TM59B828T1X11



RJ45 Without Transformer (TM59B828T1X11) Attributes:

Model:TM59B828T1X11
Place of Origin:Guangdong of China
Certification:UL,Rohs,Reach,ISO9001
Product Type :RJ45 Dual Layer Connector
Jack Type:RJ45
Number of Positions :8
Terminals per Port:8
LED Option:No
Shielded EMI Tabs:YES
Voltage rating:125 V
Current rating:1.5 A
Contact resistance:30mΩ
Insulation resistance:500 MIN @ 500V DC
Dielectric resistance:1000V AC RMS 50Hz. 1MIN
Durrability:750 CYCLES MIN
Minimal Order:1pcs
Package:5pcs/tray,125pcs/carton
Delivery Time:20 Days
Supply Ability:5KK/year

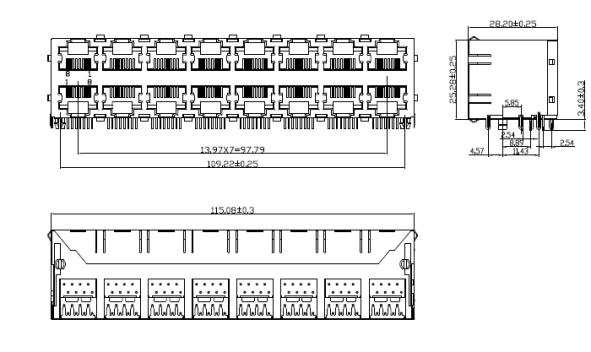

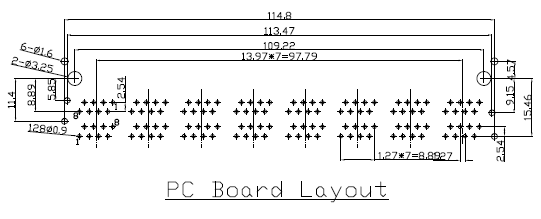

RJ45 Female Connector (TM59B828T1X11) Mechnical Drawing:

Materials:


Housing:PBT,UL94V-0 ( RoHS )
Contact Finish: φ0.46 mm Phosphor Bronze gold plating Fu”(Optional) over nickel
Shielding Shell: 0.2 mm thickness Copper alloy with Nickel Plating over all
All materials mates with modulat plug conforming to FCC part 68. subpart F.


Product Structure:
RJ45 Dual Layer Connector
2 x 8 Port / sixteen port
Connector Length: 28.20 mm
Connector Width: 115.08 mm
Connector Height: 25.28 mm
Termimal Solder Pin Length: 3.40 mm
8P8C ( 8 positions 8 contacts )
90°Orientation
Without LED, let know the connection status
With Shield,can be customized as required
We Support Custom service as required
