2X2 Port Rj45 Ethernet Jack With LED Y/G Side Entry Unshielded TM5JC822SX111

Categories RJ45 Female Connector
Brand Name: TM
Model Number: TM5JC822SX111
Certification: UL,Rohs,Reach,ISO9001
Place of Origin: Guangdong of China
MOQ: 500 piece
Price: Supportive
Payment Terms: T/T, Western Union, ,Paypal
Supply Ability: 5KK/year
Delivery Time: 20 Days
Packaging Details: Tray in Carton
LENGTH: 27.65 mm
HOUSING MATERIAL: PBT UL94V-0
CONTACT MATING AREA PLATING: GOLD FU'' PLATING
CONNECTOR TYPE: BLACK
LED OPTION: YES
NUMBER OF PORTS: 2X2
NUMBER OF CONTACTS: 8
GROUNDING OPTIONS: Panel Ground and PCB Ground
SHIELD PLATING MATERIAL: NICKEL
SHIELD EMI TABS: NO
SHIELD: NO
ROHS COMPLIANT: YES
PANEL STOP: YES
PCB MOUNT ANGLE: SIDE ENTRY
PACKAGE: DIP
CONNECTOR & CONTACT TERMINAATES TO: Printed Circuit Board
LATCH ORIENTATION: LATCH DOWN
Voltage rating: 125 V
Current rating: 1.5 A
Contact resistance: 30mΩ
Insulation resistance: 500 MΩ MIN @ 500V DC
Dielectric resistance: 1000V AC RMS 50Hz. 1MIN
Durrability: 750 CYCLES MIN
Minimal Order: 1pcs
Package: 35pcs/tray,875pcs/carton
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

2X2 Port Rj45 Ethernet Jack With LED Y/G Side Entry Unshielded TM5JC822SX111

Side Entry unshielded 2X2 Port RJ45 network jack With LED y/g TM5JC822SX111


Product Structure:



Connector Height: 24.88 mm
Termimal Solder Pin Length: 3.2 mm
8P8C ( 8 positions 8 contacts )
90°Orientation
With LED left yellow/right green, let know the connection status
Without Shield,can be customized as required
We Support Custom service as required


RJ45 Without Transformer (TM5JC822SX111) Attributes:


Model:TM5JC822SX111
Place of Origin:Guangdong of China
Certification:UL,Rohs,Reach,ISO9001
Product Type :RJ45 Dual Layer Connector
Jack Type:RJ45
Number of Positions :8
Terminals per Port:8
LED Option:left yellow/right green
Shielded EMI Tabs:NO
Voltage rating:125 V
Current rating:1.5 A
Contact resistance:30mΩ
Insulation resistance:500 MIN @ 500V DC
Dielectric resistance:1000V AC RMS 50Hz. 1MIN
Durrability:750 CYCLES MIN
Minimal Order:1pcs
Package:20pcs/tray,500pcs/carton
Delivery Time:20 Days
Supply Ability:5KK/year

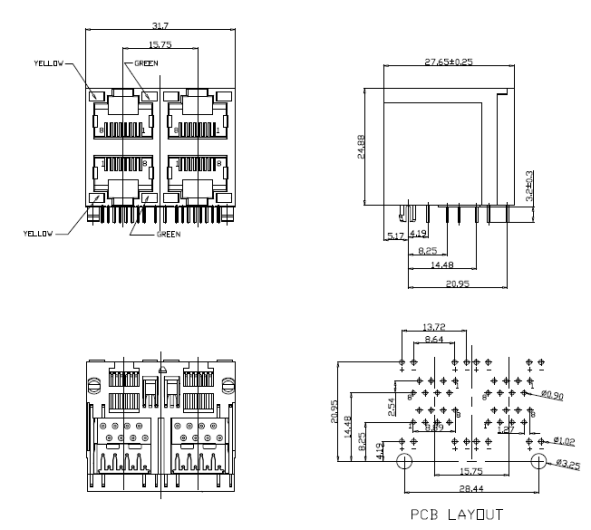

RJ45 Female Connector (TM5JC822SX111) Mechnical Drawing:
