1X1 10 100Base-Tx RJ45 Single Port / RJ45 Ethernet Jack Without LEDS Tab Down

Single port 1X1 10/100Base-Tx RJ45 Ethernet Jack without LEDS Tab-Down TM111BD6HXX111007

RJ45 Connector with Transformer (TM111BD6HXX111007) Description:

10/100Base-Tx RJ45 single port 1X1 without LEDS with Side Entry (Right Angle)
Single port 1X1 Tab-Down RJ45 with internal magnetics
Internal magnetics are 100% electrically tested for HI-POT and functionality
Suitable for CAT5&6 fast Ethernet Cable or better UTP
350uHminimum OCL with 8mA bias current
High performance for maximum EMI suppression
Minimum 1500Vrms isolation per IEEE 802.3 requirement
ROHS-6 peak wave solder temperature rating 230℃
Operating temperarure range :-40℃ to +85℃
Storage temperature range :-40℃ to +85℃

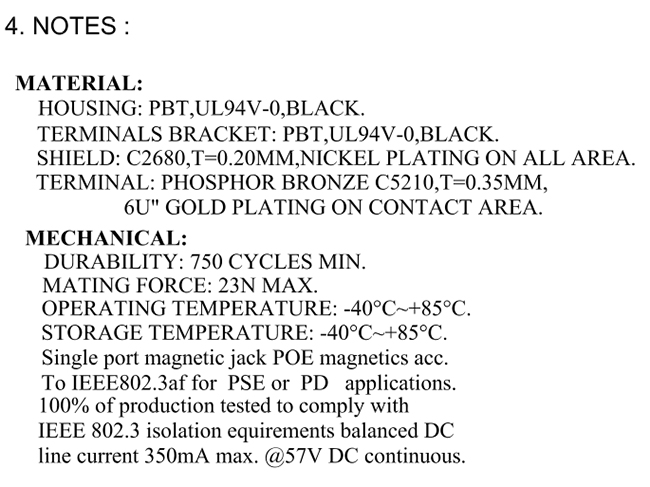

RJ45 Without Transformer (TM111BD6HXX111007) Attributes:

RJ45 Female Connector (TM111BD6HXX111007) Applications:

10/100M net card,PCMCIA net card,USB Hub,network switch,router,fiber optic transceivers,optical transceiver,IP phone,internet set-top box,internet camera,net bridge,computer,telecommunication,MODEM,
HomePNA,DSL／ADSL and so on.

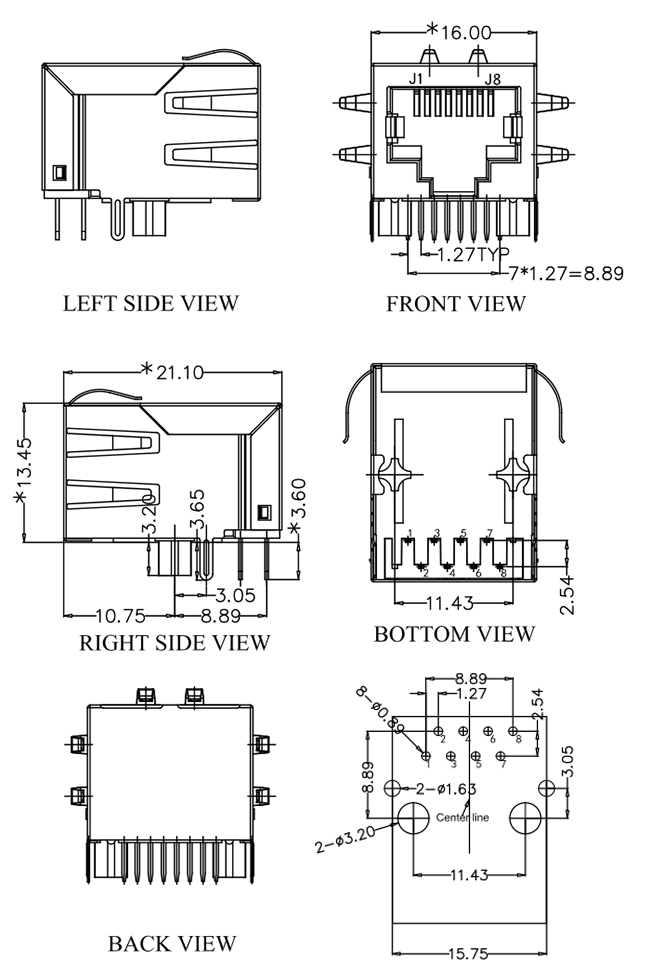

RJ45 Female Connector (TM111BD6HXX111007) Mechnical Drawing:
