| Brand Name: | YUSH |
| Model Number: | RG-3 |
| Certification: | CE |
| Place of Origin: | China |
| MOQ: | 1 set |
| Price: | USD 100,000~500,000 per set |
| Payment Terms: | T/T |
| Supply Ability: | 5 sets per month |
| Delivery Time: | 30~60 working days |
| Packaging Details: | well packaged to loaded in container |

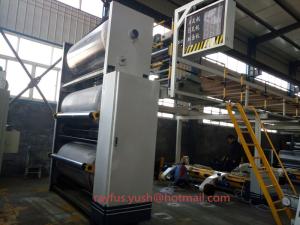

| name: | Used Multiple Preheater |
| type: | automatic |
| max width: | 2200mm |
| min width: | 1100mm |
| diameter: | 600/900/1000mm |
| Speed: | 100~200m/min |
| angle: | 360 degree electrical adjust |
| use: | Single Faced Or Surface Paper Preheating |
| Company Info. |
| YUSH CARTON MACHINE COMPANY |
| View Contact Details |
| Product List |
Technical Parameters:
1) Electrical motion heating angle adjustment. Adjustable range of 60°-270°
2) Surface of all rollers are well treated by grind and plated hard chrome, glabrous and durable.
3) Adopt dishing seal or plat design. Insure reel paper be heated averagely.
4) Duplex preheater for 3-layer corrugator line, Triplex preheater preheater for 5-layer corrugator line.
Technical Parameters:
| Max Effective Width | 1100~2500mm |
| Heating Roller Diameter | 600~1000mm |
| Heating Angle | 60-270° |
| Design Speed | 100~250m/min |
| Working Speed | 80~220m/min |
used Corrugator Line, 3/5/7-layer, various flute type,
low-medium-high speed
1) 2/3/5/7-layer Corrugated Cardboard Production Line consists of
the following machines, Electrical or Hydrualic Shaftless Mill Roll
Stand, Automatic Splicer, Single Preheater, Fingerless type Single
Facer Corrugator, Overhead Conveyor Bridge, Duplex or Triplex
Preheater, Single or Duplex Gluer, Double Facer, NC Thin Blade
Slitter Scorer, NC Rotary Cut-off, Up or Down Conveyor & Stacker,
etc.
2) Kraft Paper Reel to be corrugated and glue by Corn Starch Gum, continuously produce, slit, crease & cut to 2/3/5/7-layer Corrugated Cardboard Sheet, and then conveyor, stack and output.
3) The production line has rational structure design, advanced producing flow, high efficiency, strong batch adjustability, easy operation, etc. good work conditions.
4) It is the ideal and perfect equipment for corrugated cardboard and carton box factories.
Technical Parameters:
| Model | 3/5/7-layer |
| Max Effective Width | 1100~2500mm |
| Design Speed | 100~250m/min |
| Heating Method | Steam Heating |
| Working Speed | 80~220m/min |
| Workshop Suggested | 3000~5000sqm |
| Customer-owned Parts | Steam Boiler, Pipeline, Wireline, Air Compressor, etc. |
Machine List:
| Item | Model | WJ-I | WJ-II | WJ-III |
| Description | 3-layer | 5-layer | 7-layer | |
| 1 | Shaftless Paper Roll Stand | 3 | 5 | 7 |
| 2 | Track Rail & Paper Roll Trolley | 6 | 10 | 14 |
| 3 | Auto Splicer | 3 | 5 | 7 |
| 4 | Single Preheater | 2 | 4 | 6 |
| 5 | Single Facer Corrugator | 1 | 2 | 3 |
| 6 | Overhead Conveyor Bridge | 1 | 1 | 1 |
| 7 | Multiple Preheater | 1 | 1 | 1 |
| 8 | Gluer | 1 | 1 | 1 |
| 9 | Double Facer | 1 | 1 | 1 |
| 10 | Thin Blade Slitter Scorer | 1 | 1 | 1 |
| 11 | NC Helical-knife Cut-off | 1 | 1 | 1 |
| 12 | Conveyor Stacker | 1 | 1 | 1 |
| 13 | Glue Kitchen System | 1 | 1 | 1 |
| 14 | Internal Steam Heating System | 1 | 1 | 1 |
| 15 | Electricla Control System | 1 | 1 | 1 |
