| Categories | Used Corrugated Machinery |
|---|---|
| Brand Name: | YUSH |
| Model Number: | WJ-3/5/7 |
| Certification: | CE |
| Place of Origin: | China |
| MOQ: | 1 set |
| Price: | USD 100,000~500,000 per set |
| Payment Terms: | T/T |
| Supply Ability: | 5 sets per month |
| Delivery Time: | 30~60 working days |
| Packaging Details: | well packaged to be loaded in container |
| name: | used 3/5/7-layer corrugator line |
| type: | automatic |
| max width: | 2200mm |
| min width: | 1100mm |
| flute type: | A/B/C/E/F flute |
| Speed: | 100~200m/min |

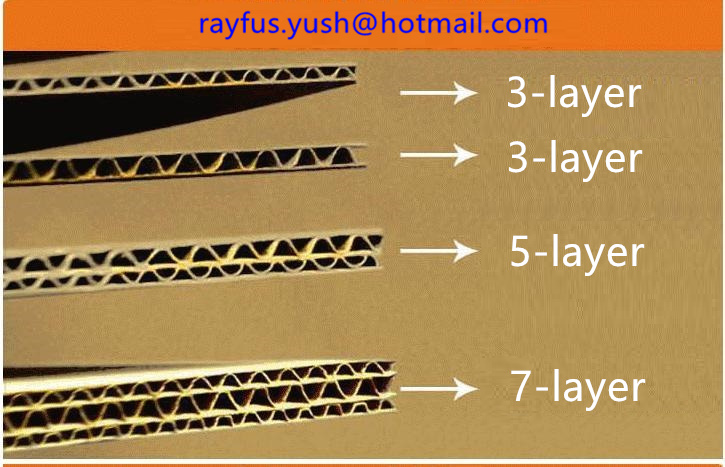

| layer: | 3/5/7-ply |
| use: | 3/5/7-layer corrugated cardboard production line |
| Company Info. |
| YUSH CARTON MACHINE COMPANY |
| View Contact Details |
| Product List |

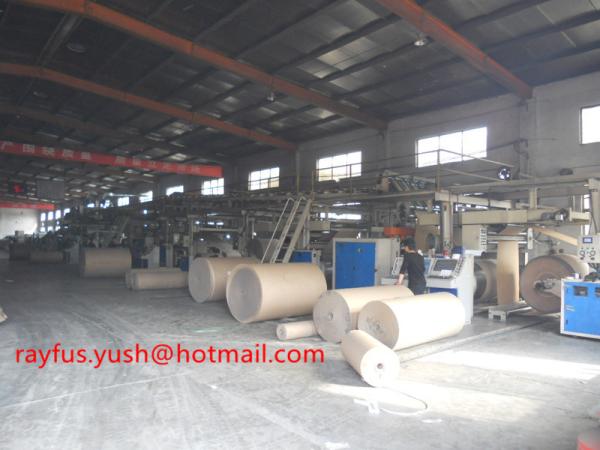

1) 3/5/7-layer Corrugated Cardboard Production Line mainly consists
of the following machines, Electrical or Hydrualic Shaftless Mill
Roll Stand, Automatic Splicer, Single Preheater, Fingerless type
Single Facer Corrugator, Overhead Conveyor Bridge, Duplex or
Triplex Preheater, Single or Duplex Gluer, Double Facer, NC Thin
Blade Slitter Scorer, NC Rotary Cut-off, Conveyor & Stacker, Glue
Kitchen System, Steam Heatng System, Electrical Control System,
etc.
2) Kraft Paper Reel to be corrugated and glue by Corn Starch Gum, continuously produce, slit, crease & cut to 2/3/5/7-layer Corrugated Cardboard Sheet, and then conveyor, stack and output.
3) The production line has rational structure design, advanced producing flow, high efficiency, strong batch adjustability, easy operation, etc. good work conditions.
4) It is the ideal and perfect equipment for corrugated cardboard and carton box factories.
Technical Parameters:
| Model | 3/5/7-layer |
| Max Effective Width | 1100~2500mm |
| Design Speed | 100~250m/min |
| Heating Method | Steam Heating |
| Working Speed | 80~220m/min |
| Workshop Suggested | 3000~5000sqm |
| Customer-owned Parts | Steam Boiler, Pipeline, Wireline, Air Compressor, etc. |
Machine List:
| Item | Model | WJ-I | WJ-II | WJ-III |
| Description | 3-layer | 5-layer | 7-layer | |
| 1 | Shaftless Paper Roll Stand | 3 | 5 | 7 |
| 2 | Track Rail & Paper Roll Trolley | 6 | 10 | 14 |
| 3 | Auto Splicer | 3 | 5 | 7 |
| 4 | Single Preheater | 2 | 4 | 6 |
| 5 | Single Facer Corrugator | 1 | 2 | 3 |
| 6 | Overhead Conveyor Bridge | 1 | 1 | 1 |
| 7 | Multiple Preheater | 1 | 1 | 1 |
| 8 | Gluer | 1 | 1 | 1 |
| 9 | Double Facer | 1 | 1 | 1 |
| 10 | Thin Blade Slitter Scorer | 1 | 1 | 1 |
| 11 | NC Helical-knife Cut-off | 1 | 1 | 1 |
| 12 | Conveyor Stacker | 1 | 1 | 1 |
| 13 | Glue Kitchen System | 1 | 1 | 1 |
| 14 | Internal Steam Heating System | 1 | 1 | 1 |
| 15 | Electricla Control System | 1 | 1 | 1 |
