| Categories | Used Corrugated Machinery |
|---|---|
| Brand Name: | YUSH |
| Model Number: | ZJ-Y |
| Certification: | CE |
| Place of Origin: | China |
| MOQ: | 1 set |
| Price: | USD 100,000~500,000 per set |
| Payment Terms: | T/T |
| Supply Ability: | 5 sets per month |
| Delivery Time: | 30~60 working days |
| Packaging Details: | well packaged to loaded in container |
| Condition: | used Hydraulic Shaftless Mill Roll Stand |
| type: | hydraulic |
| max width: | 2200mm |
| min width: | 1100mm |
| diameter: | 1500mm |
| weight: | 3000kg |
| support: | 2 roll |
| use: | To Support Paper Roll For Corrugated Cardboard Production Line |
| Company Info. |
| YUSH CARTON MACHINE COMPANY |
| View Contact Details |
| Product List |
Technical Parameters:

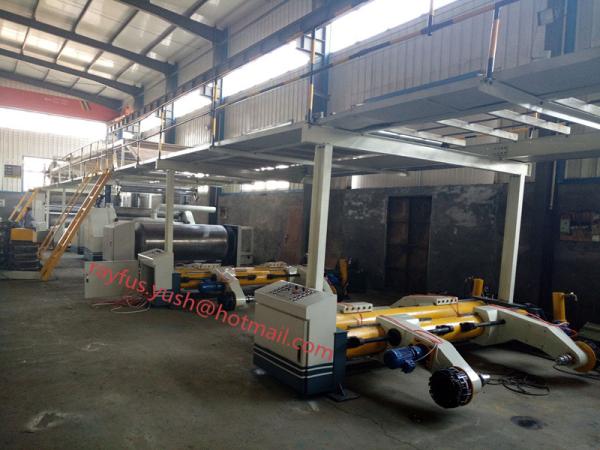

1) The structure is double rotary shafts with four arms; Support two paper mill rolls on both arms at the same time.
2) Hydraulic control for paper mill roll up-down, clamp-open and centering.
3) Web tension is controlled by pneumatic brake; Springiness chucks are optional.
4) Two sets of Paper Vehicle and Track Rail will be provided for each Mill Roll Stand, to transfer the Paper Mill Roll.
Technical Parameters:
| Max Effective Width | 1100~2500mm |
| Max Paper Roll Diameter | 1500mm |
| Max Paper Roll Weight | 3000kg |
| Remarks | 2 sets of Paper Vehicle and Track Rail will be provided for each Roll Stand |
1) 2/3/5/7-layer Corrugated Cardboard Production Line consists of
the following machines, Electrical or Hydrualic Shaftless Mill Roll
Stand, Automatic Splicer, Single Preheater, Fingerless type Single
Facer Corrugator, Overhead Conveyor Bridge, Duplex or Triplex
Preheater, Single or Duplex Gluer, Double Facer, NC Thin Blade
Slitter Scorer, NC Rotary Cut-off, Up or Down Conveyor & Stacker,
etc.
2) Kraft Paper Reel to be corrugated and glue by Corn Starch Gum, continuously produce, slit, crease & cut to 2/3/5/7-layer Corrugated Cardboard Sheet, and then conveyor, stack and output.
3) The production line has rational structure design, advanced producing flow, high efficiency, strong batch adjustability, easy operation, etc. good work conditions.
4) It is the ideal and perfect equipment for corrugated cardboard and carton box factories.
Technical Parameters:
| Model | 3/5/7-layer |
| Max Effective Width | 1100~2500mm |
| Design Speed | 100~250m/min |
| Heating Method | Steam Heating |
| Working Speed | 80~220m/min |
| Workshop Suggested | 3000~5000sqm |
| Customer-owned Parts | Steam Boiler, Pipeline, Wireline, Air Compressor, etc. |
Machine List:
| Item | Model | WJ-I | WJ-II | WJ-III |
| Description | 3-layer | 5-layer | 7-layer | |
| 1 | Shaftless Paper Roll Stand | 3 | 5 | 7 |
| 2 | Track Rail & Paper Roll Trolley | 6 | 10 | 14 |
| 3 | Auto Splicer | 3 | 5 | 7 |
| 4 | Single Preheater | 2 | 4 | 6 |
| 5 | Single Facer Corrugator | 1 | 2 | 3 |
| 6 | Overhead Conveyor Bridge | 1 | 1 | 1 |
| 7 | Multiple Preheater | 1 | 1 | 1 |
| 8 | Gluer | 1 | 1 | 1 |
| 9 | Double Facer | 1 | 1 | 1 |
| 10 | Thin Blade Slitter Scorer | 1 | 1 | 1 |
| 11 | NC Helical-knife Cut-off | 1 | 1 | 1 |
| 12 | Conveyor Stacker | 1 | 1 | 1 |
| 13 | Glue Kitchen System | 1 | 1 | 1 |
| 14 | Internal Steam Heating System | 1 | 1 | 1 |
| 15 | Electricla Control System | 1 | 1 | 1 |
YUSH CARTON MACHINE, your best supplier for Corrugated Cardboard & Carton Box Making Machines
Sincerely, welcome you to join our cooperator team, we shall repay you with top-notch products and perfect services.
|
