304 316 316L Stainless Steel Threaded Pipe Flange For Water Line
The 304 316 316L Stainless Steel Threaded Pipe Flange and Stainless Steel Threaded Pipe Flange supplied in various spheres of the industries ranging from basic industries such as, Textile, Paper, Sugar, Dairy, Engineering to more complex such as Oil & Gas, Power Generation, Chemical & Fertilizers , Petrochemical, and Nuclear Industries. We provide a complete range of 304 316 316L Stainless Steel Threaded Pipe Flange, Stainless Steel Threaded Pipe Flange, Threaded Pipe Flange in the world.
Specifications of 304 316 316L Stainless Steel Threaded Pipe Flange For Water Line
Threaded flange Standards | ANSI/ASME B16.5, B16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, GOST Flange, ASME/ANSI B16.5/16.36/16.47A/16.47B, MSS S44, ISO70051, JISB2220, BS1560-3.1, API7S-15, API7S-43, API605, EN1092 |
Threaded flange Size | 1/2″ (15 NB) to 48″ (1200NB) DN10~DN5000 |
| Application | Petroleum industry, Refinery Company, fertilizer industry, power station, shipbuilding |
Threaded flange Pressure | Class 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS |
Types Of Threaded flange | Forged / Threaded / Screwed / Plate |
Port | Tianjin |

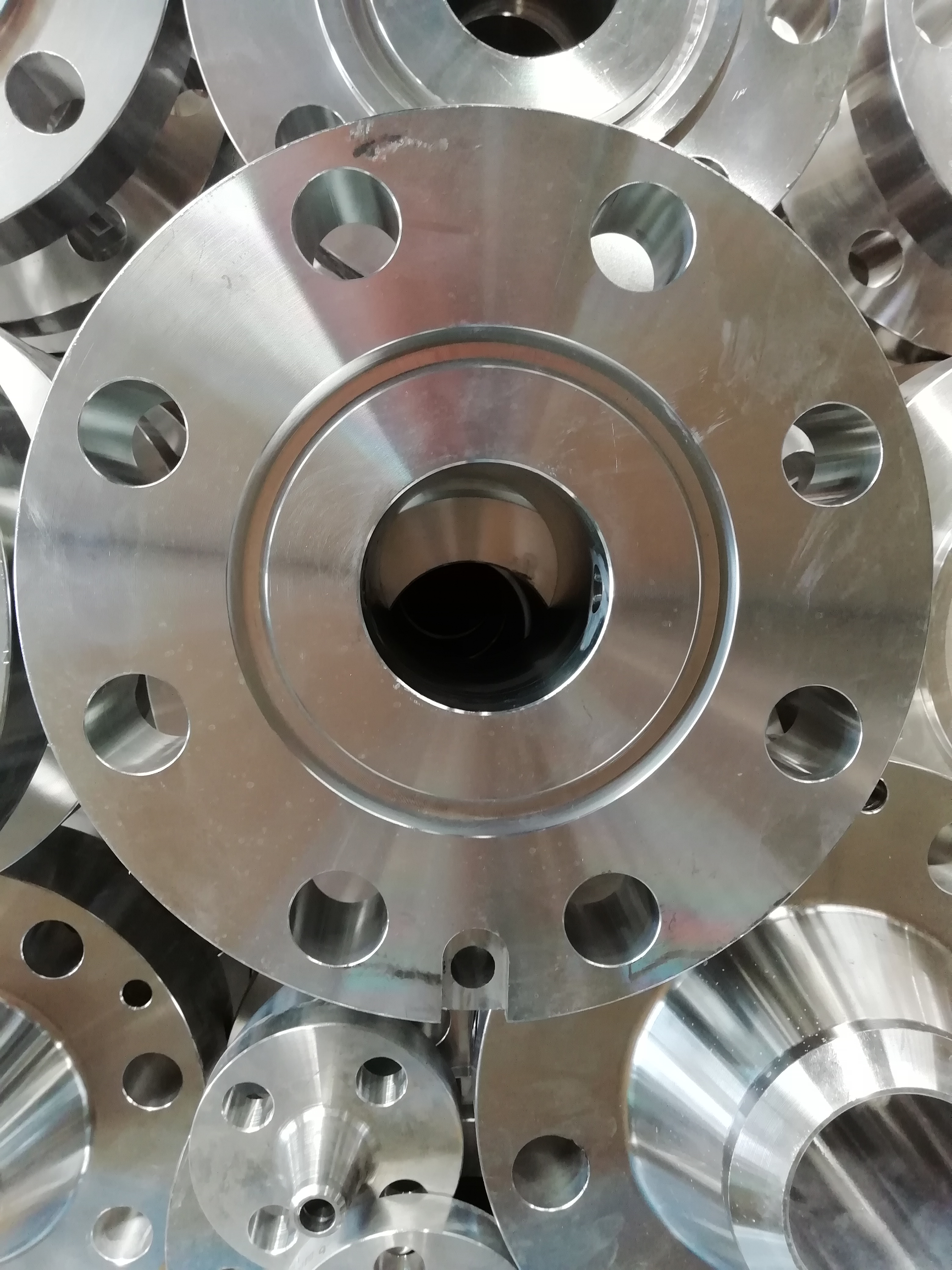

304 316 316L Stainless Steel Threaded Pipe Flange For Water Line Picture
Dimensions Of 304 316 316L Stainless Steel Threaded Pipe Flange
| Pipe Size | Outside Diameter of Flange | Diameter of Raised Face | Thickness of Flange | Diameter of Hub at Base | Length of Hub | Minimum Thread Length | Number of Bolt Holes | Approx. Weight |
| (NPS) | A | B | C | J | L | N | (Lbs.) | |
| 1/2 | 3 1/2 | 1 3/8 | 7/16 | 1 3/16 | 5/8 | 5/8 | 4 | 2 |
| 3/4 | 3 7/8 | 1 11/16 | 1/2 | 1 1/2 | 5/8 | 5/8 | 4 | 2 |
| 1 | 4 1/4 | 2 | 9/16 | 1 15/16 | 11/16 | 11/16 | 4 | 2 |
| 1 1/4 | 4 5/8 | 2 1/2 | 5/8 | 2 5/16 | 13/16 | 13/16 | 4 | 3 |
| 1 1/2 | 5 | 2 7/8 | 11/16 | 2 9/16 | 7/8 | 7/8 | 4 | 3 |
| 2 | 6 | 3 5/8 | 3/4 | 3 7/16 | 1 | 1 | 4 | 5 |
| 2 1/2 | 7 | 4 1/8 | 7/8 | 3 9/16 | 1 1/8 | 1 1/8 | 4 | 7 |
| 3 | 7 1/2 | 5 | 15/16 | 4 1/4 | 1 3/16 | 1 3/16 | 4 | 8 |
| 3 1/2 | 8 1/2 | 5 1/2 | 15/16 | 4 13/16 | 1 1/4 | 1 1/4 | 8 | 11 |
| 4 | 9 | 6 3/16 | 15/16 | 5 5/16 | 1 5/16 | 1 5/16 | 8 | 13 |
| 5 | 10 | 7 5/16 | 15/16 | 6 7/16 | 1 7/16 | 1 7/16 | 8 | 15 |
| 6 | 11 | 8 1/2 | 1 | 7 9/16 | 1 9/16 | 1 9/16 | 8 | 19 |
| 8 | 13 1/2 | 10 5/8 | 1 1/8 | 9 11/16 | 1 3/4 | 1 3/4 | 8 | 30 |
| 10 | 16 | 12 3/4 | 1 3/16 | 12 | 1 15/16 | 1 15/16 | 12 | 43 |
| 12 | 19 | 15 | 1 1/4 | 14 3/8 | 2 3/16 | 2 3/16 | 12 | 64 |
| 14 | 21 | 16 1/4 | 1 3/8 | 15 3/4 | 2 1/4 | 2 1/4 | 12 | 85 |
| 16 | 23 1/2 | 18 1/2 | 1 7/16 | 18 | 2 1/2 | 2 1/2 | 16 | 93 |
| 18 | 25 | 21 | 1 9/16 | 19 7/8 | 2 11/16 | 2 11/16 | 16 | 120 |
| 20 | 27 1/2 | 23 | 1 11/16 | 22 | 2 7/8 | 2 7/8 | 20 | 155 |
| 22 | 29 1/2 | 25 1/4 | 1 13/16 | 24 | 3 1/8 | 3 1/8 | 20 | 159 |
| 24 | 32 | 27 1/4 | 1 7/8 | 26 1/8 | 3 1/4 | 3 1/4 | 20 | 210 |
|
