| Categories | Threaded Pipe Flange |
|---|---|
| Brand Name: | ST |
| Model Number: | Threaded Pipe Flange022 |
| Certification: | ISO |
| Place of Origin: | Hebei，China |
| MOQ: | 1 piece |
| Price: | 1-10 Pieces US $4.52/piece; >10 Pieces US $3.96/piece |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 20000000PCS/Year |
| Delivery Time: | 7-14 work days |
| Packaging Details: | Plywood Cases, Pallets, Nylon Bags, Wooden Catron |
| Manufacturing Way: | Forging |
| Standard: | DIN |
| Structure: | Flanges |
| Type: | Threaded |
| Sealing Surface: | RF |
| Material: | Carbon Steel |
| Connection: | Welding |
| Pressure: | Pn16 |
DIN2566 Pn16 304 Stainless Steel Threaded Flange Screwed Flange
Product Description
| Size | 1/2″ to 48″ DN10~DN5000 |
| Material | Carbon, Alloy Steel and Stainless Steel |
| Flange Standards | ANSI, MSS, AWWA, DIN, UNI, JIS, BS, EN1092, GOST, SABS |
| Thickness | Schedule 10(S) to SCH 160 |
| Pressure Rating | Class 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS |
| ASTM | 6Bar 10Bar 16Bar 25Bar 40Bar / PN6 PN10 PN16 PN25 PN40, PN64 |
| JIS | 5K, 10 K, 16 K 20 K, 30 K, 40 K, 63 K |
| UNI | 6Bar 10Bar 16Bar 25Bar 40Bar |
| EN | 6Bar 10Bar 16Bar 25Bar 40Bar |
| Coating | Oil Black Paint, Anti-rust Paint, Zinc Plated, Yellow Transparent, Cold and Hot Dip Galvanized |
| Process | Forged |
| Test Certificates | Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
| Production technique | Forged, Heat treated and machined |
| Face Type | RF (Raised Face), RTJ (Ring Type Joint) |
| Types | Weld Neck, Blind, Slip-On, Socket-Weld, Threaded, Orifice, Spectacle Blinds |
| Uses & application | Bitumen upgraders. Heavy oil refineries. Nuclear power (mostly seamless). Petrochemicals and acids. |
Flange Standard
| American Standard | ASME B16.5,ASME B16.47,ANSI B16.5,API605,AWWA C207 |
| Japanese Standard | JIS / KS 5K / 10K / 16K / 20K / 30K |
| German Standard | DIN2527,2528,2561,2565,2566,2573,2576,2627-2638,2641,2642,2655,2656,2673,86029 |
| British Standard | BS4504 PN16 / 25 / 40,BS10 TABLE E / TABLE D |
| Italian Standard | UNI 2253,2254,2276,2278,2281,6084-6093 |
| China Standard | GB/T 13402-92,GB/T9112-9124-2000,HG5010-5028 |
Product Display
Certifications
Apart being certified for the local demand, we have also
international certifications such as
1. ASME- american Society of Mechanical Engineers
2. BV-Bureau Veritas
3. CE-Conformite Euiropeenne
4. ISO- International Organization for Standardization(ISO9001,
ISO14001, ISO45001)
5. ASTM-API-American Petroleum Institute

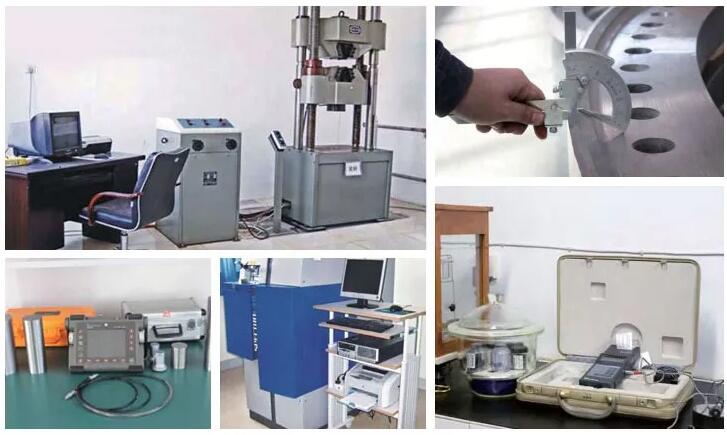

Testing Equipment
|
