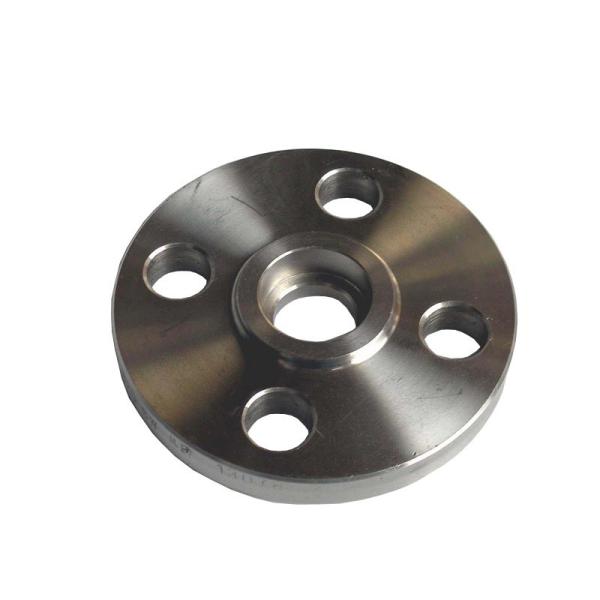

Name: Clear Lacquer DIN 25Bar SCH 40 Threaded Pipe Flange
Brand: Shengtian
Price: 1 USD

Home > Flanges >

Clear Lacquer DIN 25Bar SCH 40 Threaded Pipe Flange

Categories	Threaded Pipe Flange
Brand Name:	Shengtian
Model Number:	Threaded Flange 005
Certification:	ISO9000
Place of Origin:	China
MOQ:	1 piece
Price:	1-50 Pieces US $10.23/ Piece；>50 Pieces US $9.24/ Piece
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	500ton/Year
Delivery Time:	7-15 work days
Packaging Details:	in Wooden Cases or Customers Requirements
Type:	Forged
Material:	Stainless Steel
Standard:	ANSI, DIN, GB, JIS, GOST
Size:	1/2"-24"
Manufacturing Way:	Forging
Port:	Tianjin
Sealing Surface:	RF

Contact Now

Add to Cart

Company Info.

Hebei Shengtian Pipe Fittings Group Co., Ltd.

View Contact Details

Product List

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Product Details
Company Profile

Clear Lacquer DIN 25Bar SCH 40 Threaded Pipe Flange

Stainless Steel ASTM A182 F316 C150lb RF Sch40 Threaded Pipe Flange

Material	Carbon steel	ASTM A105. ASTM A350 LF1. LF2, A234, P235GH
		ASTM A694 F42/F46/F52/F56/F60/F65/F70, etc
	Stainless steel	ASTM A182, F304/304L, F316/316L
	Alloy steel	ASTM A182 A182 F12, F11, F22, F5, F9, F91etc.
Standard	ANSI	Class 150 Flanges-Class 2500 Flanges
	DIN	6Bar 10Bar 16Bar 25Bar 40Bar
	JIS	5K Flanges-20K Flanges
	UNI	6Bar 10Bar 16Bar 25Bar 40Bar
	EN	6Bar 10Bar 16Bar 25Bar 40Bar
TYPE	1.Welding neck Flange 2.Slip on
	3.Blind flange 4.Long welding neck flange
	5.Lap joint flange 6.Socket welding
	7.Threaded flange 8.Flat flange
Surface	Anti-rust oil, clear lacquer, Black lacquer, Yellow lacquer,hot-dipped Galvanized,electrical galvanized
Connection	Welding, Threaded
Technical	Forged, Plate Cutting, Casting
Size	DN10-DN3600
Package	1. Standard export packaging (Plywood Case with plastic sheet lined,or wooden pallet with plastic film outside). 2. As Customers' Requirements
Heat Treatment	Normalizing, Annealing, Quenching Tempering
Applications	Water works, Shipbuilding industry, Petrochemical & Gas industry, Power industry, Valve industry,and general pipes connecting projects etc.

Threaded Pipe Flange Dimension

FLANGE	Inside	Outside	Bolt Circle (BC)	Raised Face (R)	Raised Face (RF)	H	Raised Face Thickness (T)	T1	Flat Face Thickness (T2)	Bolt Hole (B)	No. of Bolt Holes
NPS	Diameter	Diameter	Bolt Circle (BC)	Raised Face (R)	Raised Face (RF)	H	Raised Face Thickness (T)	T1	Flat Face Thickness (T2)	Bolt Hole (B)	No. of Bolt Holes
1/2″	0.93″	3.75″	2.62″	1.38″	.063″	1.50″	0.88″	0.50″	0.82″	0.62″	4
3/4″	1.14″	4.62″	3.25″	1.69″	.063″	1.88″	1.00″	.056″	0.94″	0.75″	4
1″	1.41″	4.88″	3.50″	2.00″	.063″	2.12″	1.06″	0.63″	1.00″	0.75″	4
1-1/4″	1.75″	5.25″	3.88″	2.50″	.063″	2.50″	1.06″	0.69″	1.00″	0.75″	4
1-1/2″	1.99″	6.12″	4.50″	2.88″	.063″	2.75″	1.19″	0.75″	1.13″	0.88″	4
2″	2.50″	6.50″	5.00″	3.62″	.063″	3.31″	1.31″	0.82″	1.25″	0.75″	8
2-1/2″	3.00″	7.50″	5.88″	4.12″	.063″	3.94″	1.50″	0.94″	1.44″	0.88″	8
3″	3.63″	8.25″	6.62″	5.00″	.063″	4.62″	1.69″	1.06″	1.63″	0.88″	8
3-1/2″	4.13″	9.00″	7.25″	5.50″	.063″	5.25″	1.75″	1.13″	1.69″	0.88″	8
4″	4.63″	10.00″	7.88″	6.19″	.063″	5.75″	1.88″	1.19″	1.82″	0.88″	8
5″	5.69″	11.00″	9.25″	7.31″	.063″	7.00″	2.00″	1.32″	1.94″	0.88″	8
6″	6.75″	12.50″	10.62″	8.50″	.063″	8.12″	2.06″	1.38″	2.00″	0.88″	12
8″	8.75″	15.00″	13.00″	10.62″	.063″	10.25″	2.44″	1.56″	2.38″	1.00″	12
10″	10.88″	17.50″	15.25″	12.75″	.063″	12.62″	2.62″	1.82″	2.56″	1.12″	16
12″	12.94″	20.50″	17.75″	15.00″	.063″	14.75″	2.88″	1.94″	2.82″	1.25″	16
14″	14.19″	23.00″	20.25″	16.25″	.063″	16.75″	3.00″	2.06″	2.94″	1.25″	20
16″	16.19″	25.50″	22.50″	18.50″	.063″	19.00″	3.25″	2.19″	3.19″	1.38″	20
18″	18.19″	28.00″	24.75″	21.00″	.063″	21.00″	3.50″	2.32″	3.44″	1.38″	24
20″	20.19″	30.50″	27.00″	23.00″	.063″	23.12″	3.75″	2.44″	3.69″	1.38″	24
22″	22.19″	33.00″	29.25″	25.25″	.063″	25.25″	4.00″	2.57″	3.94″	1.63″	24
24″	24.19″	36.00″	32.00″	27.25″	.063″	27.62″	4.19″	2.69″	4.13″	1.62″	24

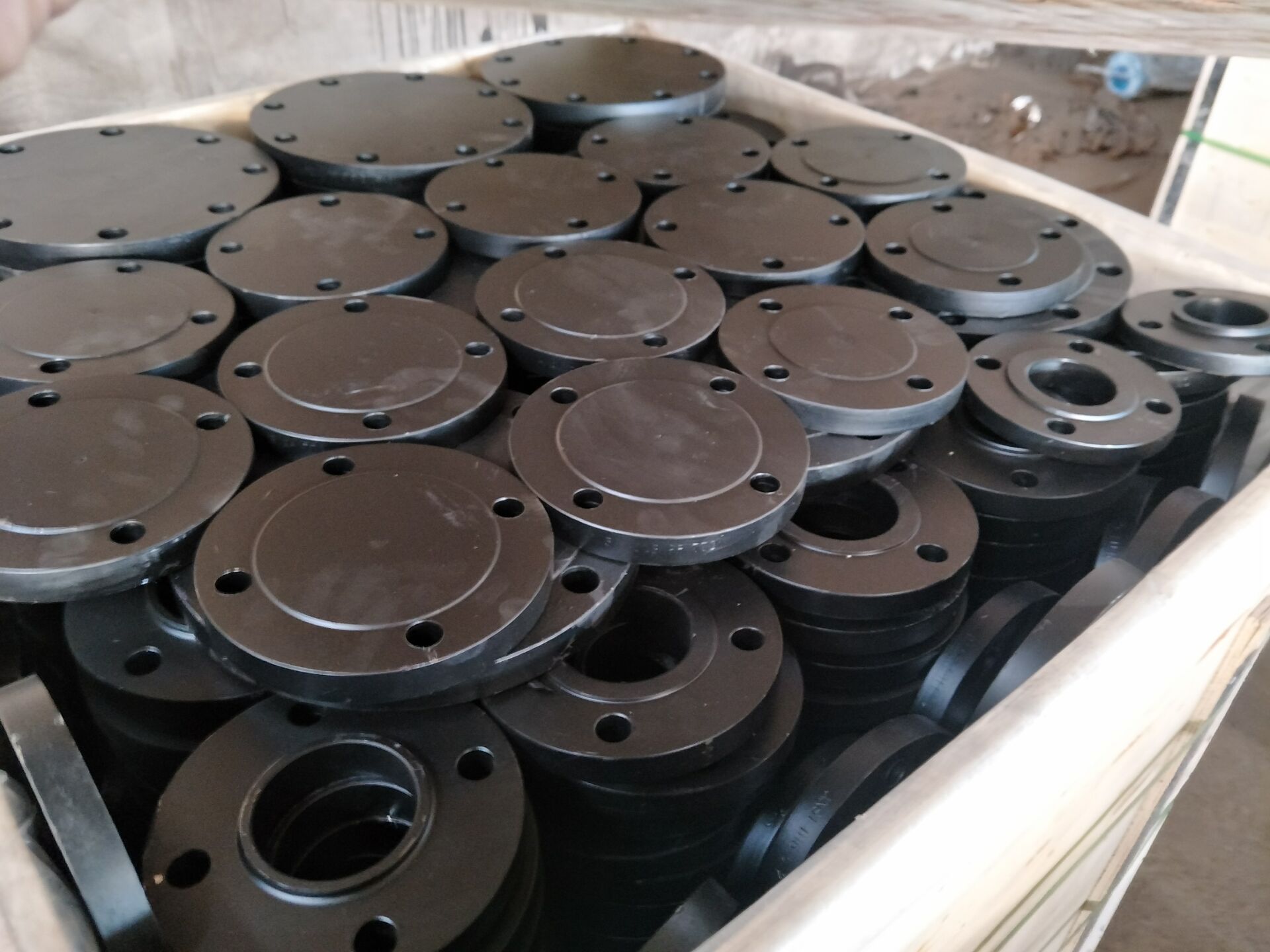

Products Show
