SG-S600A Three-axis CNC double-head cutting saw

Categories aluminum processing machine
Brand Name: KM
Model Number: SG-S600A
Place of Origin: china
MOQ: 1
Price: Negotiable
Payment Terms: L/C, T/T, Western Union
Supply Ability: 5 Pieces per Month
Delivery Time: 15 days
Packaging Details: Regular export packing
machine size: 7500mmX1600mmX1860mm
machine weight: 2050kg
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

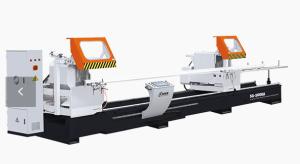

SG-S600A Three-axis CNC double-head cutting saw

SG-S600A

Three-axis CNC double-head cutting saw

The machine is mainly used for cutting all kinds of aluminum alloy profiles, two head can separate cutting can be cut at the same time, fixed-length imported servo drive high precision reducer through the precision rack positioning, high Angle is driven by servo motor precision ball screw rotation, are selected to implement any than traditional reducer angular stable structure, high precision .

As long as the touch screen to set the parameters, you need the machine will automatically detect adjust to what you need data, ranging accuracy is high, operation is stable, reliable, is to improve the production efficiency and machining precision of the ideal equipment.


Technical Parameters

power380V/50HZcutting size90°=180mmX225mm
Total power10.5KW45°=180mmX160mm
motor power2X4KWcutting angle22.5°-135°
blade rotary speed2840r/ minsaw bladeØ600mmX30X4.4X144T
positioning servo motor0.75KWblade feeding speed0-10m/min
positioning tolerance±0.05 mmcutting length360mm-4800/5800mm
contact touch screen size10.2寸air pressure0.6-0.8Mpa
tilting motor2X0.6KWcoolingmist cooling
Tilting tolerance±2`control modecontact touch screen input
Machine dimension7500mmX1600mmX1860mmmachine weight2200kg
