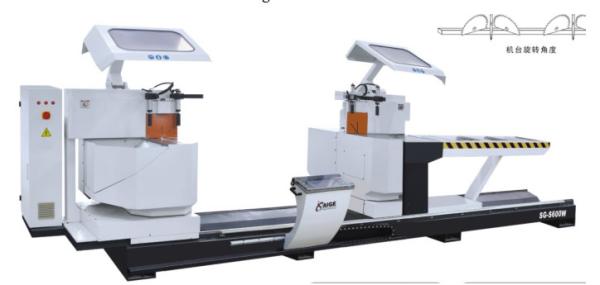

5-axis CNC double head cutting saw

5-axis CNC double head cutting saw



Product introduction

The machine is mainly used for cutting aluminum alloy doors and Windows, sun room, aluminum curtain wall and industrial aluminum multi-angle cutting, two head vertical (45-90 degrees) can realize arbitrary rotary swing Angle cutting and the workbench's level (30 degrees 135 degrees) at any Angle cutting, imported CNC positioning system, two head controlled by servo motor driven ball screw vertical pendulum Angle, The horizontal rotation of the body worktable at any Angle is realized by servo reducer and high precision imported arc measurement.

As long as you set the parameters you need in the touch screen, the machine will automatically detect and adjust to the data you need, high ranging accuracy, stable and reliable operation; It is an ideal equipment to improve production efficiency and processing precision.


技术参数Technique data

机器电源power3相380V/50HZ

垂直摆角度切割尺寸(WXH) vertica

The Angle cutting size

90°=290mmX200mm

机器总功率

Total power

10.6KW45°=290mmX140mm

锯片电机功率

Motor power

2X4KW水平旋转角度切割尺寸(WXH) The level of The Angle cutting size45°=245mmX180mm

锯片转速

blade rotary speed

2840r/ min22.5°=130mmX180mm

定位伺服电机功率

positioning servo motor

1.3KW

锯片尺寸

saw blade

Ø650mmX38X4.4X144T

定位精度

positioning tolerance

±0.05 mm

切割进给速度

blade feeding speed

0-10m/min

摆角度伺服电机

Angular Angle Motor power

2X0.75KW切割长度cutting length460mm-6000mm

旋转角度伺服电机

Swing Angle Motor power

2X0.75KW机器气压air pressure0.6-0.8Mpa

定角精度

Tilting tolerance

±3`切削冷却cooling雾化冷却mist cooling
触摸屏尺寸contact touch screen size10.2寸

控制方式

control mode

触摸屏数字输入控制

contact touch screen input

机器尺寸(LXWXH)

Machine dimension

8300mmX1600mmX1860mm

机器重量

machine weight

2250kg
