3-axis CNC double head cutting saw

Categories aluminum processing machine
Brand Name: KM
Model Number: SG-S650A
Place of Origin: china
MOQ: 1
Price: Negotiable
Payment Terms: L/C, T/T, Western Union
Supply Ability: 5 Pieces per Month
Delivery Time: 15 days
Packaging Details: Regular export packing
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

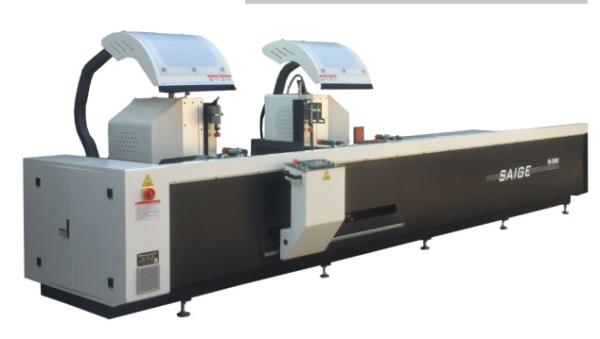

3-axis CNC double head cutting saw

3-axis CNC double head cutting saw



Product introduction

The machine is mainly used for Angle cutting of various profiles, two heads can be cut independently or at the same time, fixed length using imported servo driven high precision reducer positioning through precision rack, Angle driven by servo motor high precision reducer rotation to achieve arbitrary Angle cutting, stable operation, high precision.

As long as you set the parameters you need in the touch screen, the machine will automatically detect and adjust to the data you need, high ranging accuracy, stable and reliable operation; It is an ideal equipment to improve production efficiency and processing precision


Technique data

Machine power supply 3-phase 380V/ 50Hz cutting size (WXH)

90 ° = 210 mmx210mm

The total power of the machine is 10.3KW 45°=210mmX148mm

Saw blade motor power 2X4KW cutting Angle 22.5°-135°

Saw blade speed 2840/ min Saw blade size Ø 650mmx30x4.4x144t

Positioning servo motor 0.75KW cutting feed speed 0-10m/min

Positioning accuracy ± 0.05mm Cutting length 450mm-6000

Touch screen size 10.2 inches machine air pressure 0.6-0.8Mpa

Swing Angle servo motor 2X0. 75kW cutting cooling atomization cooling

Swing Angle precision ±6 'control mode touch screen digital input control

Machine size (LXWXH) 8200mmX1800mmX1860mm machine weight
