| Categories | Aluminium Alloy Plates |
|---|---|
| Brand Name: | XINZHENG |
| Model Number: | Aluminium sheet |
| Certification: | SGS |
| Place of Origin: | CHINA |
| MOQ: | 1 MT |
| Price: | 1000-2000 USD / MT |
| Payment Terms: | L/C, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 4000 MT PER week |
| Delivery Time: | 5-25 Days |
| Packaging Details: | SEAWORTHY STANDARD EXPORT PACKAGE |
| Material: | Aluminiu 6000 series |
| standard: | GB/T 3880, ASTM B209, EN485 |
| Aluminium designation: | China standard 6063,US standard 6063, ENAW-6063 |
| Thickness: | 0.5 ~ 6.0mm for sheet |
| Width: | 600 ~ 2200mm |
| Length: | 200mm-10000mm |
| surface finish: | Mill finish (unless otherwise specified), Color Coated, or Stucco Embossed |
| Surface Protection: | Paper interleaved, PE/PVC filming (if specified) |
| Temper: | T4, T6, T451, T651 |
| Grade: | 6063 |
| Application: | Decorations,Heat Sink,Door & Window,Other,industrial |
| Shape: | FLAT ROLLED |

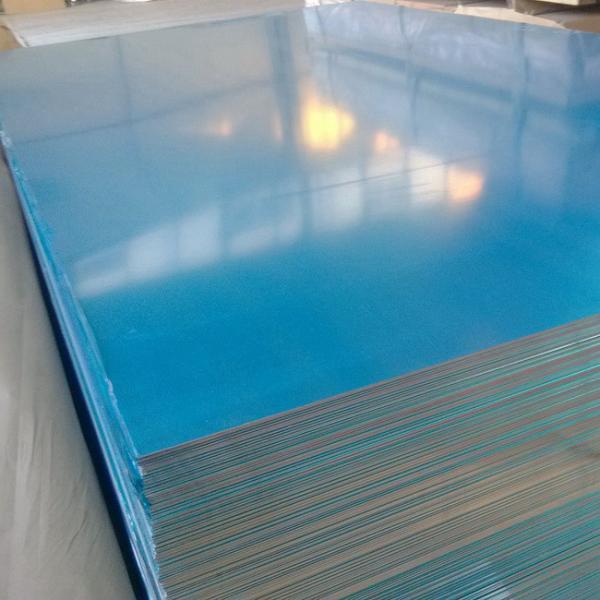

4X8 Feet AISI 6061 T6 Flat-Rolled Aluminium Sheet For Building Materials
| Aluminum Sheet Spec | ||||
| Aluminum Model Number | Thickness (MM) | Length (MM) | Width (MM) | Remark |
| 6061 | 4,5,6,8,10,12,14,15,18,20,22,24,25,28, 30,35,40,45,50,55,60,65,70,75,80,85,90, 95,100,105,110,115,120,125 | Standard : 3000 Or custom | Standard : 1500 Or custom | Custom length and width is accepted |
| 5052 | 3,4,5,6,8,10,12,15,16,20,24,25,30,35,40,45 | Standard : 3000 Or custom | Standard : 1500 Or custom | |
| 6063 | 4,8,10,15,18,20,25,30,35,40,45,50,55,60,65,70 | Standard : 3000 Or custom | Standard : 1500 Or custom | |
| 7075 | 8,10,12,15,20,25,30,35,40,45,50,55,60,65,70,75 | Standard : 3000 Or custom | Standard : 1500 Or custom | |
| 5083 | 10,12,15,20,25,30,35,40 | Standard : 3000 Or custom | Standard : 1500 Or custom | |
| 6082 | 8,10,12,15,20,25,30,35,40,45,50,55,60,65,70,75 | Standard : 3000 Or custom | Standard : 1500 Or custom | |
| 1060 | 3,5,8,10,12,20,25,30,30.5,32.5,40,45,50,55,60,65,70 | Standard : 3000 Or custom | Standard : 1500 Or custom | |
| Grade | Thickness | Width x Length |
|---|---|---|
| AA1100 | 0.5mm to 12mm | 1220mm x 2440mm (4 Ft. x 8 Ft.) 1524mm x 3048mm (5 Ft. x 10 Ft.) |
| AA2024 | 6.0mm to 76mm | 1524mm x 3660mm (5 Ft. x 12 Ft.) |
| AA5052 | 0.8mm to 25mm | 1220mm x 2440mm (4 Ft. x 8 Ft.) 1524mm x 3048mm (5 Ft. x 10 Ft.) |
| AA5083 | 2.0mm to 180mm | 1220mm x 2440mm (4 Ft. x 8 Ft.) 1500mm x 6000mm 2000mm x 6000mm |
| AA6061 | 1.5mm to 320mm | 1220mm x 2440mm (4 Ft. x 8 Ft.) 1524mm x 3048mm (5 Ft. x 10 Ft.) 1524mm x 3658mm (5 Ft. x 12 Ft.) |
| AA7075 | 6.0mm to 230mm | 1220mm x 2440mm (4 Ft. x 8 Ft.) 1524mm x 3658mm (5 Ft. x 12 Ft.) |
Precision Machined Cast Plate | 6.0mm to 127mm | 1220mm x 2440mm (4 Ft. x 8 Ft.) 1524mm x 3658mm (5 Ft. x 12 Ft.) |
| Dimension | Range |
| Thickness | 0.5 ~ 6.0mm for sheet |
| Width | 600 ~ 2,200mm |
| Length | 2,000 ~ 10,000mm |
- Standard Width and Length:
1000x2000mm, 1250x2500mm, 1500x3000mm, 1219x2438mm, 1524x3048mm
- Surface Finish:
Mill finish (unless otherwise specified), Color Coated, or Stucco Embossed
- Surface Protection:
Paper interleaved, PE/PVC filming (if specified)
- Minimum Order Quantity: 3~5MT per size, total 20MT for one order
| Alloy | Temper |
| 1xxx: 1050, 1050A, 1060, 1100 | O, H12, H14, H16, H18, H22, H24, H26, H28, H111 |
| 3xxx: 3003, 3004, 3005, 3105 | |
| 5xxx: 5005, 5052, 5754, 5083, 5086, 5182, 5049, 5251, 5454 | O, H22, H24, H26, H28, H32, H34, H36, H38, H111 |
| 6xxx: 6061, 6082 | T4, T6, T451, T651 |
| 2xxx: 2024 | T3, T351, T4 |
| 7xxx: 7075 | T6, T651 |
| Alloy Series | Chinese Standard | American Standard | European Standard |
| 1xxx Series | 1050 | - | - |
| 1050A | - | EN AW-1050A | |
| 1060 | 1060 | - | |
| 1100 | 1100 | - | |
| 2xxx Series | 2024 | 2024 | EN AW-2024 |
| 3xxx Series | 3003 | 3003 | EN AW-3003 |
| 3004 | 3004 | EN AW-3004 | |
| 3005 | 3005 | EN AW-3005 | |
| 3105 | 3105 | EN AW-3105 | |
| 5xxx Series | 5005 | 5005 | EN AW-5005 |
| 5052 | 5052 | EN AW-5052 | |
| 5754 | 5754 | EN AW-5754 | |
| 5083 | 5083 | EN AW-5083 | |
| 5086 | 5086 | EN AW-5086 | |
| 5182 | - | EN AW-5182 | |
| 5049 | - | EN AW-5049 | |
| 5251 | - | EN AW-5251 | |
| 6xxx Series | 6061 | 6061 | EN AW-6061 |
| 6082 | - | EN AW-6082 | |
| 7xxx Series | 7075 | 7075 | EN AW-7075 |
| Temper | Definition |
| O | Annealed |
| H111 | Annealed and slightly strain hardened (less than H11) |
| H12 H14 H16 H18 | Strain Hardened, 1/4 Hard Strain Hardened, 1/2 Hard Strain Hardened, 3/4 Hard Strain Hardened, Full Hard |
| H22 H24 H26 H28 | Strain Hardened and Partially Annealed, 1/4 Hard Strain Hardened and Partially Annealed, 1/2 Hard Strain Hardened and Partially Annealed, 3/4 Hard Strain Hardened and Partially Annealed, Full Hard |
| H32 H34 H36 H38 | Strain Hardened and Stabilized, 1/4 Hard Strain Hardened and Stabilized, 1/2 Hard Strain Hardened and Stabilized, 3/4 Hard Strain Hardened and Stabilized, Full Hard |
| T3 | Solution heat-treated, cold worked and naturally aged |
| T351 | Solution heat-treated, cold worked, stress-relieved by stretching and naturally aged |
| T4 | Solution heat-treated and naturally aged |
| T451 | Solution heat-treated, stress-relieved by stretching and naturally aged |
| T6 | Solution heat-treated and then artificially aged |
| T651 | Solution heat-treated, stress-relieved by stretching and artificially aged |
Aluminum sheet or plate is used in various applications, including aerospace, military, transportation, etc. Aluminum sheet or plate is also used for tanks in many food industries, because some aluminum alloys become tougher at low temperatures.
| Type | Application |
| Food Packaging | Beverage can end, can tap, cap stock, etc. |
| Construction | Curtain walls, cladding, ceiling, heat insulation and venetian blind block, etc. |
| Transportation | Automobile parts, bus bodies, aviation and shipbuilding and air cargo containers, etc. |
| Electronic Appliance | Electrical appliances, telecommunication equipment, PC board drilling guide sheets, lighting and heat radiating materials, etc. |
| Consumer Goods | Parasols and umbrellas, cooking utensils, sports equipment, etc. |
| Other | Military, color coated aluminum sheet |
|
