| Categories | Aluminium Alloy Plates |
|---|---|
| Brand Name: | XINZHENG |
| Model Number: | Aluminium coil |
| Certification: | ISO9001,SGS, ROHS,FDA,TUV |
| Place of Origin: | CHINA |
| MOQ: | 1 MT |
| Price: | 1000-3000 USD / MT |
| Payment Terms: | L/C, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 4000 MT PER week |
| Delivery Time: | 5-25 Days |
| Packaging Details: | SEAWORTHY STANDARD EXPORT PACKAGE |
| Material: | Aluminum Alloy 1000 3000 5000 6000 8000 Series |
| Standard: | GB/T 3880, ASTM B209, EN 485 |
| Width: | 600 ~ 2600mm |
| Coil weight: | 1MT-3MT , or As required |
| Thickness: | 0.1mm-10mm |
| Surface Protection: | With PE/PVC filming on main side (if specified) |
| Temper: | O, F, H12, H14, H16, H18, H22, H24, H26, H28 |
| Application: | transportation, automobile, shipbuilding, instrument, electrical enclosure, etc |
| Package: | The coils are packed in eye-to-sky or eye-to-wall position, wrapped in HDPE and hardboard, strapped with hoop iron and placed on wooden pallets. Moisture protection is provided by silica gel packets. |
| Name: | Aluminium coil , Aluminium strip , Aluminium alloy coil |
| Coil INNER Diameter: | 150mm, 405mm, 505mm, 605mm , or As required |
| Technique: | Hot rolled , Cold Rolled |
| Surface finish: | Mill finish, anodized sliver, black, golden, champaign, Wooden Grain, Powder Coating, checkered, orange peel etc. |
| Alloy or not: | Is Alloy |

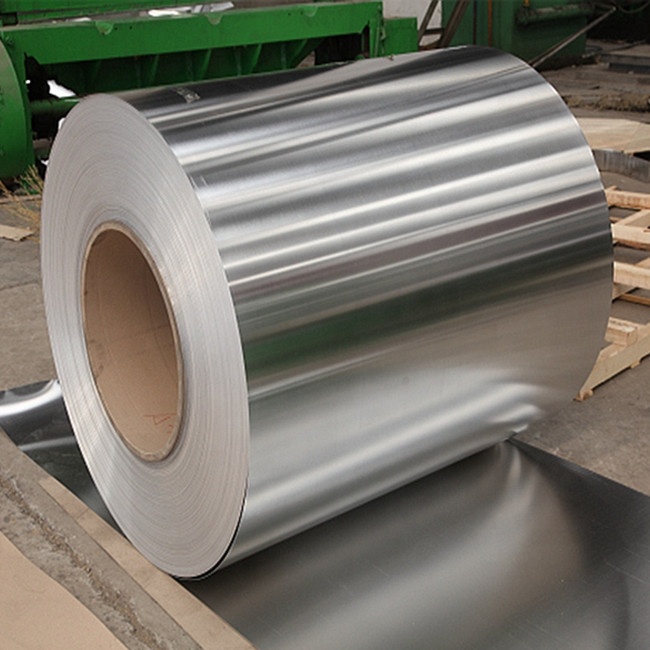

ASTM B209 5052 Aluminum Coil H34 Temper Hot rolled Bright Aluminium Alloy Coil For Building materials
| Product | ASTM B209 5052 Aluminum Coil H34 Temper |
| Property | Anti-Corrosion,Heat Resistant |
| Surface | |
| Production Process | Cold Rolled,Hot Rolled |
| Internal Diameter | 300mm,405mm,505mm or per request |
| Temper | O,H14,H24,H32,H112 Etc;T4,T651 Etc |
| Thickness | 0.3mm - 60mm |
| Width | 600mm - 2600mm |
| Coil Weight | 2-4 tons |
| Payment Term | TT,LC,WestUnion |
| Package | Export wooden pallets,craft paper,anti-blushing agent. |
| Delivery Time | Future goods:15-20 Work days,Ready Stock:7-10 days. |
| Quality of Material | Totally free from defects like white rust,roll marks,adge damage,camber,dents,holes,break lines,scratches and free from coil set. |
| Note: | Specification can be custommized as the customer's requirements. |
| Dimension | Range |
| Thickness | 0.2 ~ 10.0 mm |
| Width | 600 ~ 2,600 mm |
* The thickness can be up to 10mm for coil stock (mother coil for
cold rolling).
- Standard Width and Length: 1000mm, 1250mm, 1500mm, 1219mm, 1524mm
- Surface Finish: Mill finish, unless otherwise specified
- Surface Protection:
Without paper interleaved for all aluminum coils
With PE/PVC filming on main side (if specified)
- Coil ID
405mm, 505mm, 605mm etc
| Alloy | Temper |
| 1xxx: 1050, 1050A, 1060, 1100 | O, H12, H14, H16, H18, H22, H24, H26, H28, H111 |
| 3xxx: 3003, 3004, 3005, 3105 | |
| 5xxx: 5005, 5052, 5754, 5083, 5086, 5182, 5049, 5251, 5454 | O, H22, H24, H26, H28, H32, H34, H36, H38, H111 |
| 6xxx: 6061, 6082 | T4, T6, T451, T651 |
| 2xxx: 2024 | T3, T351, T4 |
| 7xxx: 7075 | T6, T651 |
| Alloy Series | Chinese Standard | American Standard | European Standard |
| 1xxx Series | 1050 | - | - |
| 1050A | - | EN AW-1050A | |
| 1060 | 1060 | - | |
| 1100 | 1100 | - | |
| 2xxx Series | 2024 | 2024 | EN AW-2024 |
| 3xxx Series | 3003 | 3003 | EN AW-3003 |
| 3004 | 3004 | EN AW-3004 | |
| 3005 | 3005 | EN AW-3005 | |
| 3105 | 3105 | EN AW-3105 | |
| 5xxx Series | 5005 | 5005 | EN AW-5005 |
| 5052 | 5052 | EN AW-5052 | |
| 5754 | 5754 | EN AW-5754 | |
| 5083 | 5083 | EN AW-5083 | |
| 5086 | 5086 | EN AW-5086 | |
| 5182 | - | EN AW-5182 | |
| 5049 | - | EN AW-5049 | |
| 5251 | - | EN AW-5251 | |
| 6xxx Series | 6061 | 6061 | EN AW-6061 |
| 6082 | - | EN AW-6082 | |
| 7xxx Series | 7075 | 7075 | EN AW-7075 |
| Temper | Definition |
| O | Annealed |
| H111 | Annealed and slightly strain hardened (less than H11) |
| H12 H14 H16 H18 | Strain Hardened, 1/4 Hard Strain Hardened, 1/2 Hard Strain Hardened, 3/4 Hard Strain Hardened, Full Hard |
| H22 H24 H26 H28 | Strain Hardened and Partially Annealed, 1/4 Hard Strain Hardened and Partially Annealed, 1/2 Hard Strain Hardened and Partially Annealed, 3/4 Hard Strain Hardened and Partially Annealed, Full Hard |
| H32 H34 H36 H38 | Strain Hardened and Stabilized, 1/4 Hard Strain Hardened and Stabilized, 1/2 Hard Strain Hardened and Stabilized, 3/4 Hard Strain Hardened and Stabilized, Full Hard |
| T3 | Solution heat-treated, cold worked and naturally aged |
| T351 | Solution heat-treated, cold worked, stress-relieved by stretching and naturally aged |
| T4 | Solution heat-treated and naturally aged |
| T451 | Solution heat-treated, stress-relieved by stretching and naturally aged |
| T6 | Solution heat-treated and then artificially aged |
| T651 | Solution heat-treated, stress-relieved by stretching and artificially aged |
|
