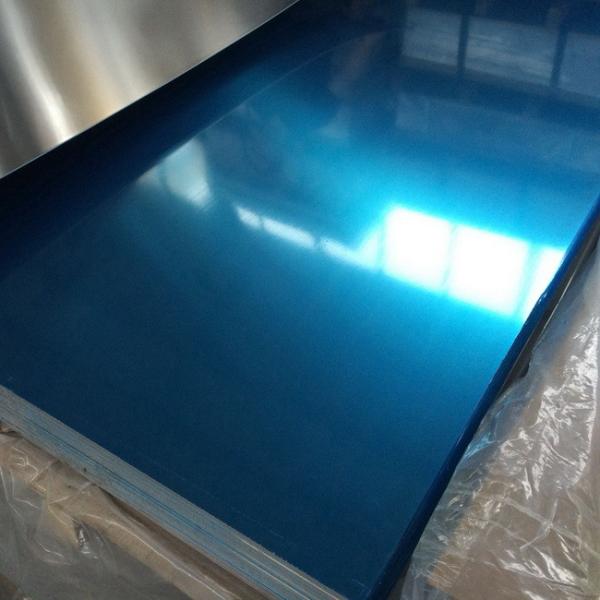

Marine Grade 2440mm H116 Brushed Aluminium Alloy Sheet 5083

5083 H116 Marine Grade Aluminium Alloy Sheet For ship building

Aluminium plate / Aluminium sheet overview

5083 Aluminum Alloy

Aluminnium 5083 - an aluminum alloyed with magnesium and traces of manganese and chromium. It is highly resistant to attack by seawater and industrial chemicals. Alloy 5083 retains exceptional strength after welding. It has the highest strength of the non-heat treatable alloys, but is not recommended for use in temperatures in excess of 65 degrees Celsius.

Properties

Tensile Strength: 46,000 PSI
Yield Strength: 33,000 PSI
Elongation: 16%

*These numbers are "Typical" properties and may not be required to meet this grade. Please check with your Alro Sales Representative if physical properties are required for your application.*

Typical Uses

Typical Uses for 5083 include:

Ship Building
Rail Cars
Vehicle Bodies
Tip Truck Bodies
Mine Skips and Cages
Pressure Vessels

Grade	Thickness	Width x Length
AA1100	0.5mm to 12mm	1220mm x 2440mm (4 Ft. x 8 Ft.) 1524mm x 3048mm (5 Ft. x 10 Ft.)
AA2024	6.0mm to 76mm	1524mm x 3660mm (5 Ft. x 12 Ft.)
AA5052	0.8mm to 25mm	1220mm x 2440mm (4 Ft. x 8 Ft.) 1524mm x 3048mm (5 Ft. x 10 Ft.)
AA5083	2.0mm to 180mm	1220mm x 2440mm (4 Ft. x 8 Ft.) 1500mm x 6000mm 2000mm x 6000mm
AA6061	1.5mm to 320mm	1220mm x 2440mm (4 Ft. x 8 Ft.) 1524mm x 3048mm (5 Ft. x 10 Ft.) 1524mm x 3658mm (5 Ft. x 12 Ft.)
AA7075	6.0mm to 230mm	1220mm x 2440mm (4 Ft. x 8 Ft.) 1524mm x 3658mm (5 Ft. x 12 Ft.)
Precision Machined Cast Plate	6.0mm to 127mm	1220mm x 2440mm (4 Ft. x 8 Ft.) 1524mm x 3658mm (5 Ft. x 12 Ft.)

Aluminum Sheet Synonyms

Aluminium, aluminio, alluminio, aluminyum, ,铝, アルミニウム, 알류미늄, алюминий , Aluminium plate , Aluminium ,Hoja de aluminio,Plato de aluminio , Plaque en aluminium, Алюминиевый лист, Folha de alumínio,
Sheet ng aluminyo,

Aluminium plate / Aluminium sheet specication ,Surface Finish, Size Range

Available Size Range

Dimension	Range
Thickness	0.5 ~ 6.0mm for sheet
Width	600 ~ 2,200mm
Length	2,000 ~ 10,000mm

- Standard Width and Length:

1000x2000mm, 1250x2500mm, 1500x3000mm, 1219x2438mm, 1524x3048mm

- Surface Finish:

Mill finish (unless otherwise specified), Color Coated, or Stucco Embossed

- Surface Protection:

Paper interleaved, PE/PVC filming (if specified)
- Minimum Order Quantity: 3~5MT per size, total 20MT for one order

Alloy and Temper
Alloy	Temper
1xxx: 1050, 1050A, 1060, 1100	O, H12, H14, H16, H18, H22, H24, H26, H28, H111
3xxx: 3003, 3004, 3005, 3105	O, H12, H14, H16, H18, H22, H24, H26, H28, H111
5xxx: 5005, 5052, 5754, 5083, 5086, 5182, 5049, 5251, 5454	O, H22, H24, H26, H28, H32, H34, H36, H38, H111
6xxx: 6061, 6082	T4, T6, T451, T651
2xxx: 2024	T3, T351, T4
7xxx: 7075	T6, T651

Alloy Series	Chinese Standard	American Standard	European Standard
1xxx Series	1050	-	-
	1050A	-	EN AW-1050A
	1060	1060	-
	1100	1100	-
2xxx Series	2024	2024	EN AW-2024
3xxx Series	3003	3003	EN AW-3003
	3004	3004	EN AW-3004
	3005	3005	EN AW-3005
	3105	3105	EN AW-3105
5xxx Series	5005	5005	EN AW-5005
	5052	5052	EN AW-5052
	5754	5754	EN AW-5754
	5083	5083	EN AW-5083
	5086	5086	EN AW-5086
	5182	-	EN AW-5182
	5049	-	EN AW-5049
	5251	-	EN AW-5251
6xxx Series	6061	6061	EN AW-6061
6xxx Series	6082	-	EN AW-6082
7xxx Series	7075	7075	EN AW-7075

Temper Designation (For Reference)

Temper	Definition
O	Annealed
H111	Annealed and slightly strain hardened (less than H11)
H12 H14 H16 H18	Strain Hardened, 1/4 Hard Strain Hardened, 1/2 Hard Strain Hardened, 3/4 Hard Strain Hardened, Full Hard
H22 H24 H26 H28	Strain Hardened and Partially Annealed, 1/4 Hard Strain Hardened and Partially Annealed, 1/2 Hard Strain Hardened and Partially Annealed, 3/4 Hard Strain Hardened and Partially Annealed, Full Hard
H32 H34 H36 H38	Strain Hardened and Stabilized, 1/4 Hard Strain Hardened and Stabilized, 1/2 Hard Strain Hardened and Stabilized, 3/4 Hard Strain Hardened and Stabilized, Full Hard
T3	Solution heat-treated, cold worked and naturally aged
T351	Solution heat-treated, cold worked, stress-relieved by stretching and naturally aged
T4	Solution heat-treated and naturally aged
T451	Solution heat-treated, stress-relieved by stretching and naturally aged
T6	Solution heat-treated and then artificially aged
T651	Solution heat-treated, stress-relieved by stretching and artificially aged

Aluminium plate / Aluminium sheet Application

Application

Aluminum sheet or plate is used in various applications, including aerospace, military, transportation, etc. Aluminum sheet or plate is also used for tanks in many food industries, because some aluminum alloys become tougher at low temperatures.

Alloy 5083 is typically used in:
~ Shipbuilding
~ Rail cars
~ Vehicle bodies
~ Tip truck bodies
~ Mine skips and cages
~ Pressure vessels

Aluminium plate / Aluminium sheet Package and Transporation

Product Tags:


*From:	Your email address is incorrect!
*To:	Wuxi Zhongxin Special Steel Co.，Ltd
*Subject:	Subject is empty!
*Message:	For the best results, we recommend including the following details: -Self introduction -Required specifications -Inquire about price/MOQ Characters Remaining: (0/3000) Please enter 20 to 3000 characters to contact this supplier!

Categories	Aluminium Alloy Plates
Brand Name:	XINZHENG
Model Number:	Aluminium sheet
Certification:	SGS
Place of Origin:	CHINA
MOQ:	1 MT
Price:	1000-2000 USD / MT
Payment Terms:	L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability:	4000 MT PER week
Delivery Time:	5-25 Days
Packaging Details:	SEAWORTHY STANDARD EXPORT PACKAGE
Material:	Aluminiu 5000 series
standard:	GB/T ASTM , EN
Aluminium designation:	China standard 5083,US standard 5083, ENAW-5083
Thickness:	0.5 ~ 6.0mm for sheet
Width:	600 ~ 2200mm
Length:	200mm-10000mm
surface finish:	Color Coated, or Stucco Embossed
Surface Protection:	Paper interleaved, PE/PVC filming (if specified)
Temper:	T4, T6, T451, T651
Grade:	5083
Application:	Boat, ship buliding , etc
Shape:	FLAT ROLLED, Coil, strip, Rod
