Brand Name: | Gracias |
Model Number: | Ridge cap |
Certification: | CE |
Place of Origin: | China |
MOQ: | 1set |
Price: | Negotiable |
Payment Terms: | T/T, L/C |
Supply Ability: | 30sets per month |
Delivery Time: | 45 work days |
Packaging Details: | as customer's request |
Voltage: | 380V 50Hz 3phases |
Condition: | New |
Tile type: | Colored Steel |
Warranty: | 1 Year |
Thickness: | 0.3-0.8mm |
Capacity: | 12-15m/min |
Company Info. |
WENZHOU YIHENG MACHINERY CO.,LTD |
View Contact Details |
Product List |
Technical parameters of fair ridge cap making machine
Model number | metal roof ridge cap roll forming machine |
Rolled material | 0.3-1.5mm thickness, aluminum sheet, galvanized sheet, colored steel sheet and various steel plates |
Effective width | as customer's require |
Feeding width | as customer's require |
Forming steps | 9-18 stations |
Roller | 45# forged steel, hard chrome plating within 0.05mm |
Diameter of shaft | 70mm |
Main motor power | 4 kw |
Pump power | 3 kw |
Sprocket chain | 1 inch |
Drive type | by chain |
Cutting Blade | Cr12, heat treatment 60-62°C |
Frequency Converter | It has the advantage of slowing down before cutting, to ensure the length accuracy (±1mm, far better than industrial standard ±3mm). |
component | 1 set of manual decoiler,1 set of main roll forming machine,1 set of computer control cabinet,1 set of hydraulic System,1 set of cutting mechanism,1 set of counter,1 set of output table |

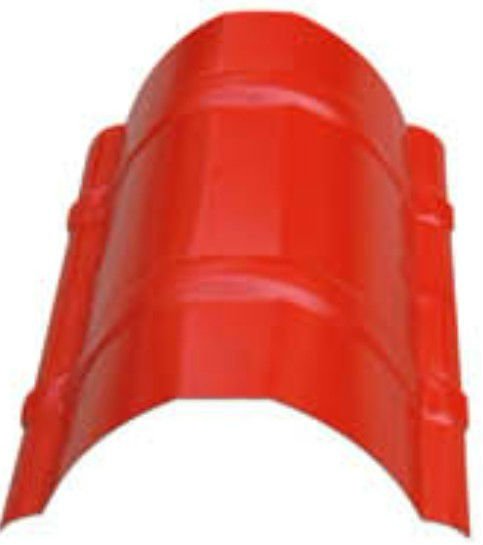

Sheet Photo
![]() |
