Half Round Ridge Cap Roll Forming Machine Green 3 Phase 2.5T

Categories Ridge Cap Roll Forming Machine
Brand Name: Gracias
Place of Origin: China
MOQ: one set
Price: As discussion
Payment Terms: T/T, L/C, Western Union
Supply Ability: 50sets per month
Delivery Time: 20-40work days
Packaging Details: Standard export package
Voltage: 380V 50Hz 3Phases Or As Your Requirment
Condition: New
Weight: 2.5T
Warranty: 1 Year
Color: Customized
Control system: PLC(imported Brand)
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

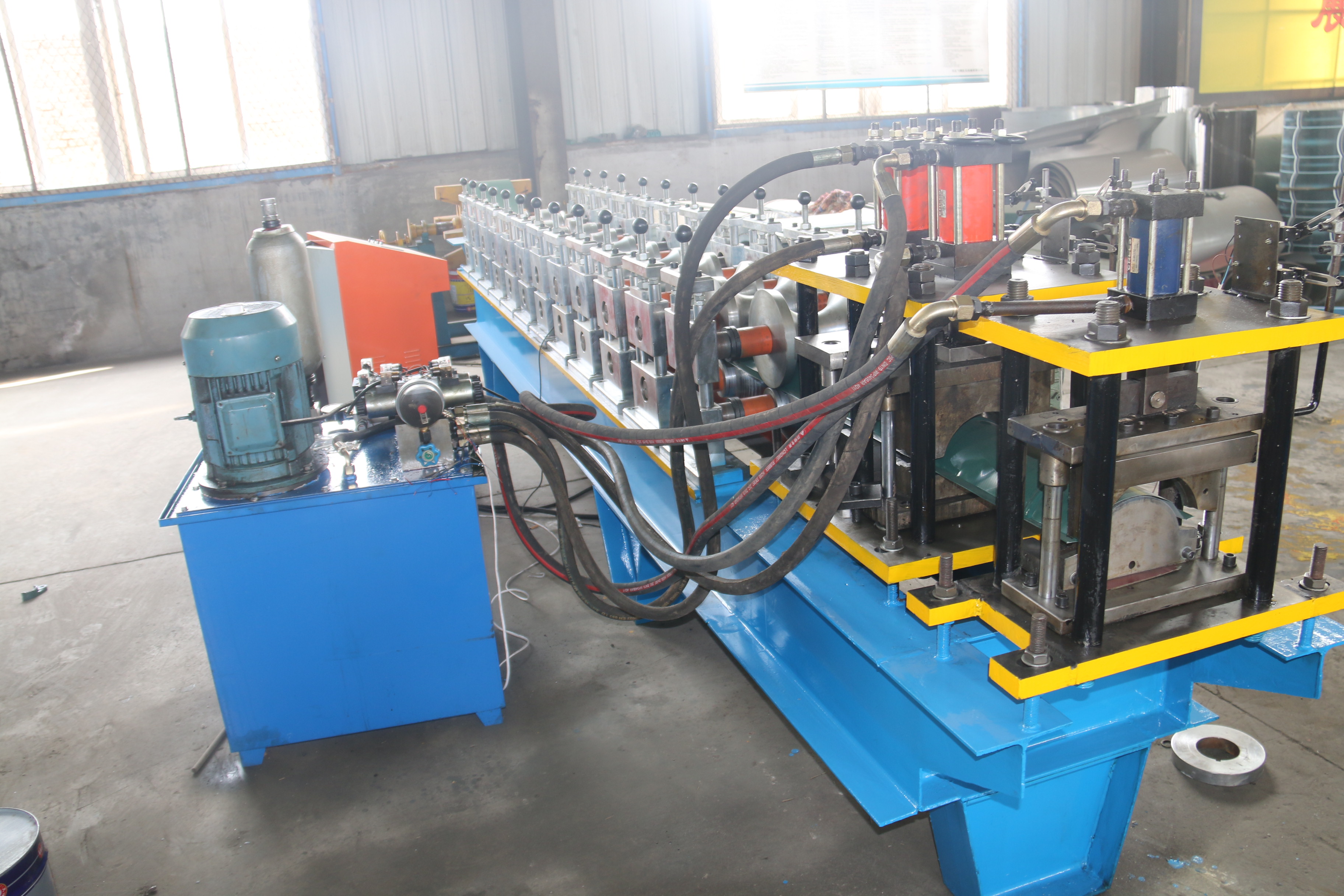

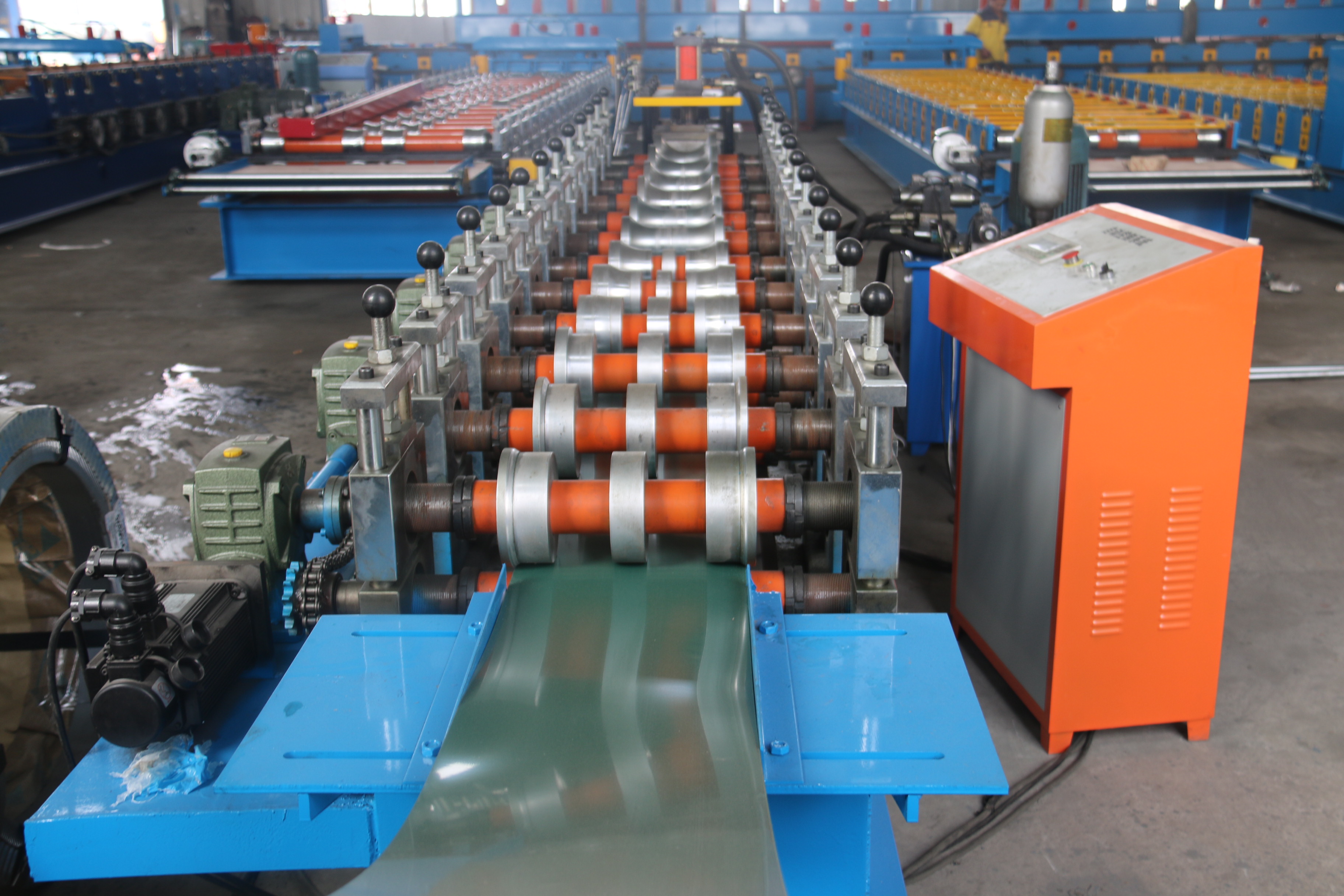

Half Round Ridge Cap Roll Forming Machine Green 3 Phase 2.5T

Half Round Ridge Roof Roll Forming Machine Roof Ridge Tile Building Material Making Machine

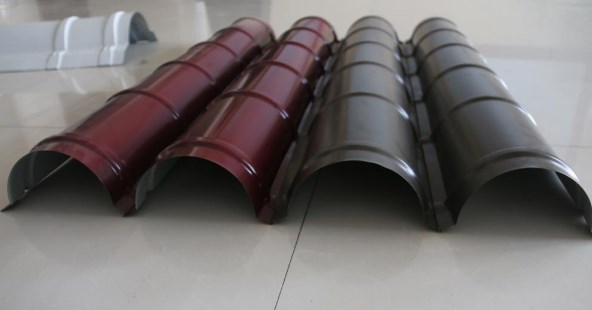

Roofing ridge forming machine to make ridge cap suitable for steel roofing sheet top. Your ridge can be designed here.There are some popular ridge machines for your reference, stop to cut machine, working speed about 2-4m/min,standard ridge with flat leg, which need to cut the leg according to roofing trapezoidal sheets during installing/special ridge cutted according to roofing trapezoidal sheets, which can easily attached on roofing without futher cut during installing, which improve work efficiency greatly, and make great match to roofing sheets to water proof.


Technical parameters:
1Name of commodity & specificationridge cap forming machine
2Main motor power5.5kw, 3 phase
3Hydraulic motor power4kw
4Hydraulic Pressure2-4MPa
5Voltage380V /3phase/ 50 HZ (or as your requirement)
6Control SystemPLC Delta Inverter
7Main Frame300mm H-Beam
8Backboard Thickness14mm
9Chain Size20mm
10Feeding Materialcolor steel coils
11Feeding Thickness0.3-0.8mm
13Roll Station12
14Roller Diameter50mm
15Roller material45# steel
16Cutter materialCr12 , quenched
17Cr-Plating Size0.05mm
18ComponentsManual Uncoiler-------------------1 set
Guiding Platform------------------1 set
Coil Strip Leveler------------------1 set
Main Machine of Roll Forming------1 set
Electric-Motor---------------------1 set
Cutting Device--------------------1 set
Hydraulic Station------------------1 set
PLC Control-----------------------1 set
Supporter Table-------------------1 set
